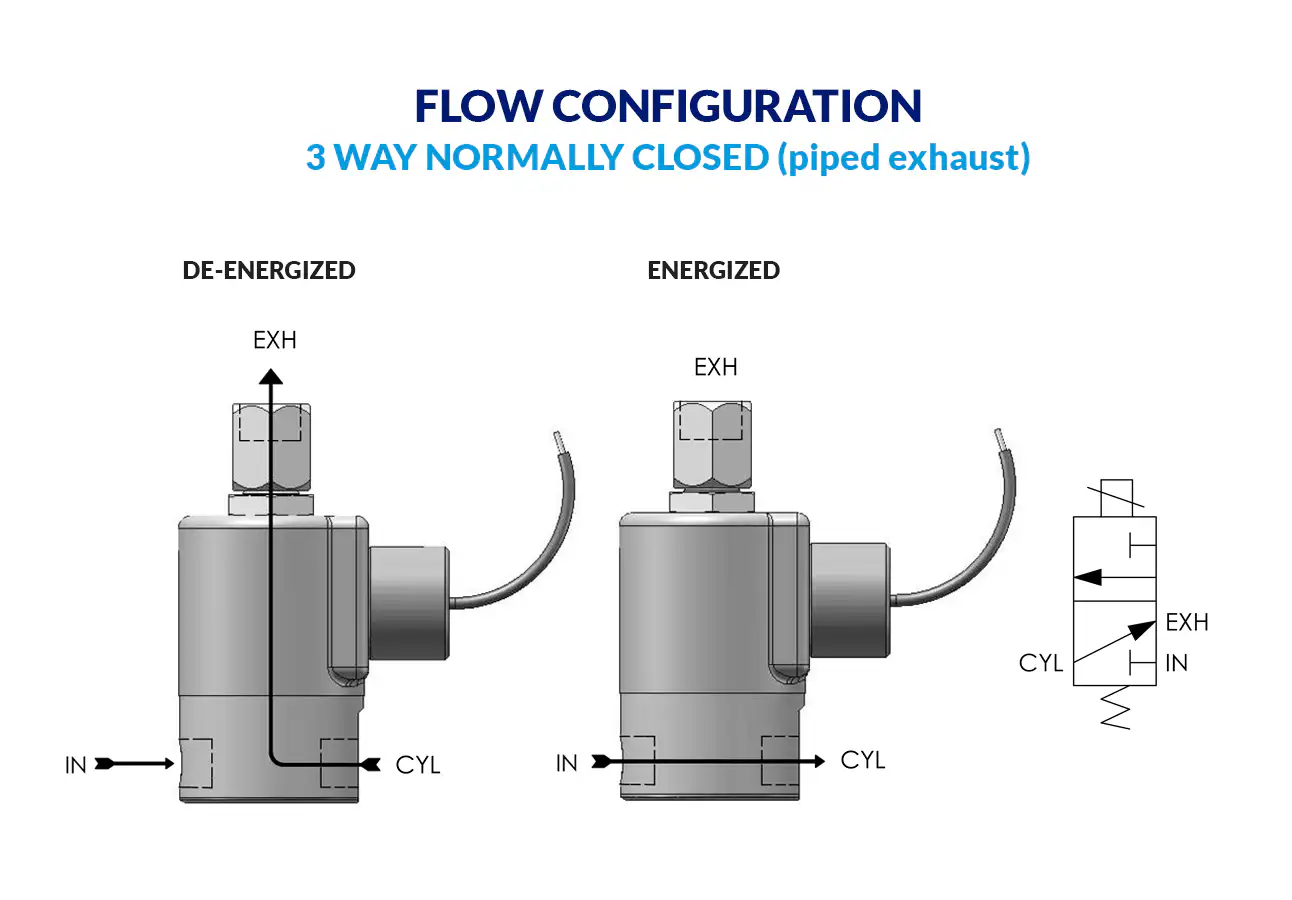

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and cylinder ports but flow does exist between cylinder and exhaust ports.
General Purpose 3-Way Normally Closed (piped exhaust)

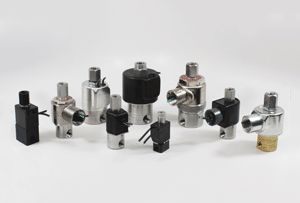

PeterPaul general purpose solenoid valves offer a wide range of control options over the flow of liquids and gases in applications from dispensing to instrumentation, commercial equipment, machinery, medical/dental equipment, control systems and off-highway equipment, to name just a few.
PeterPaul hazardous location valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Explosion Proof valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required. For applications that require low power, a low watt version is also offered.
PeterPaul low watt valves are general purpose or safety valves for pneumatic and hydraulic applications. The versatility of these valves is increased to include the handling of hot air, hot water, refrigerants and many other media, by the use of different seals.
High Pressure 3-Way Normally Closed (piped exhaust)
PeterPaul high pressure valves operate with a pressure between 1000 and 3000 PSI. Medical, Laboratory, Instrumentation and Industrial companies, etc. that require high pressure bottled gas with media such as O2, CO2 and compressed Nitrogen use our valve in various applications.
