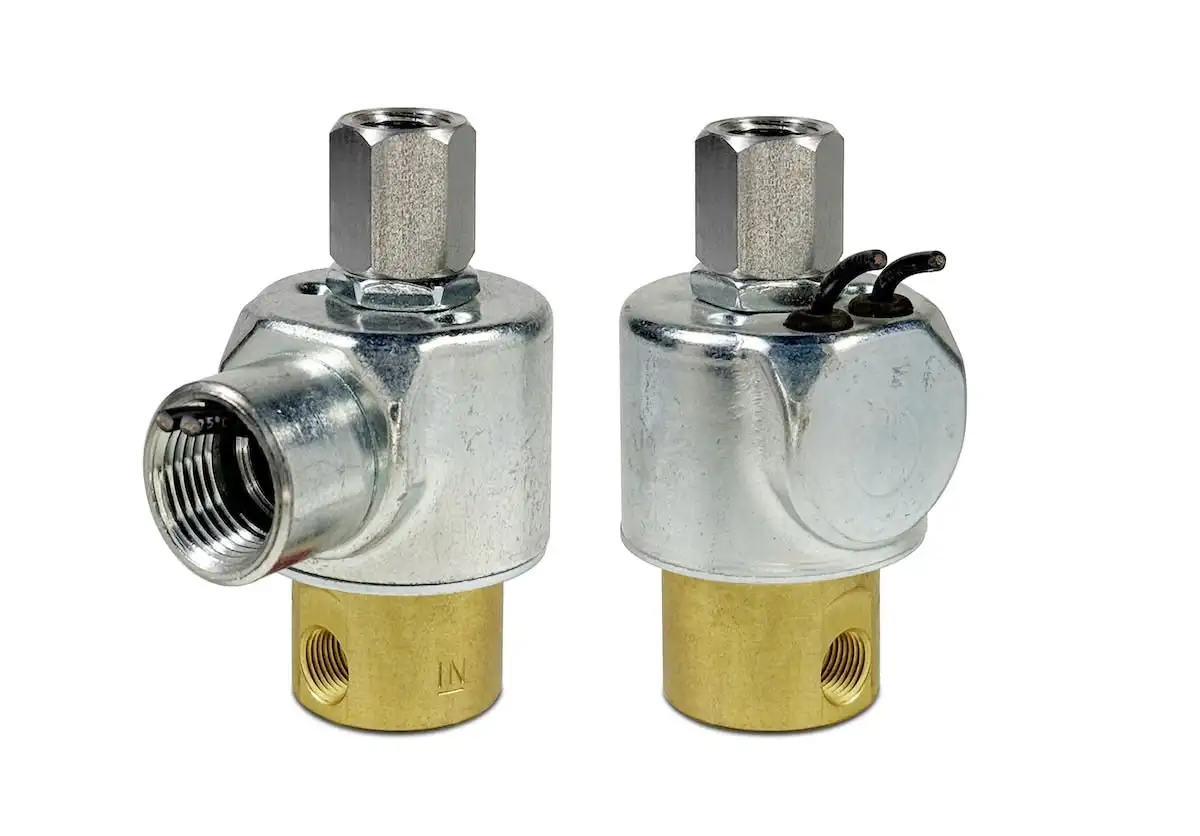

Series 30 Model 33 - Piped Exhaust

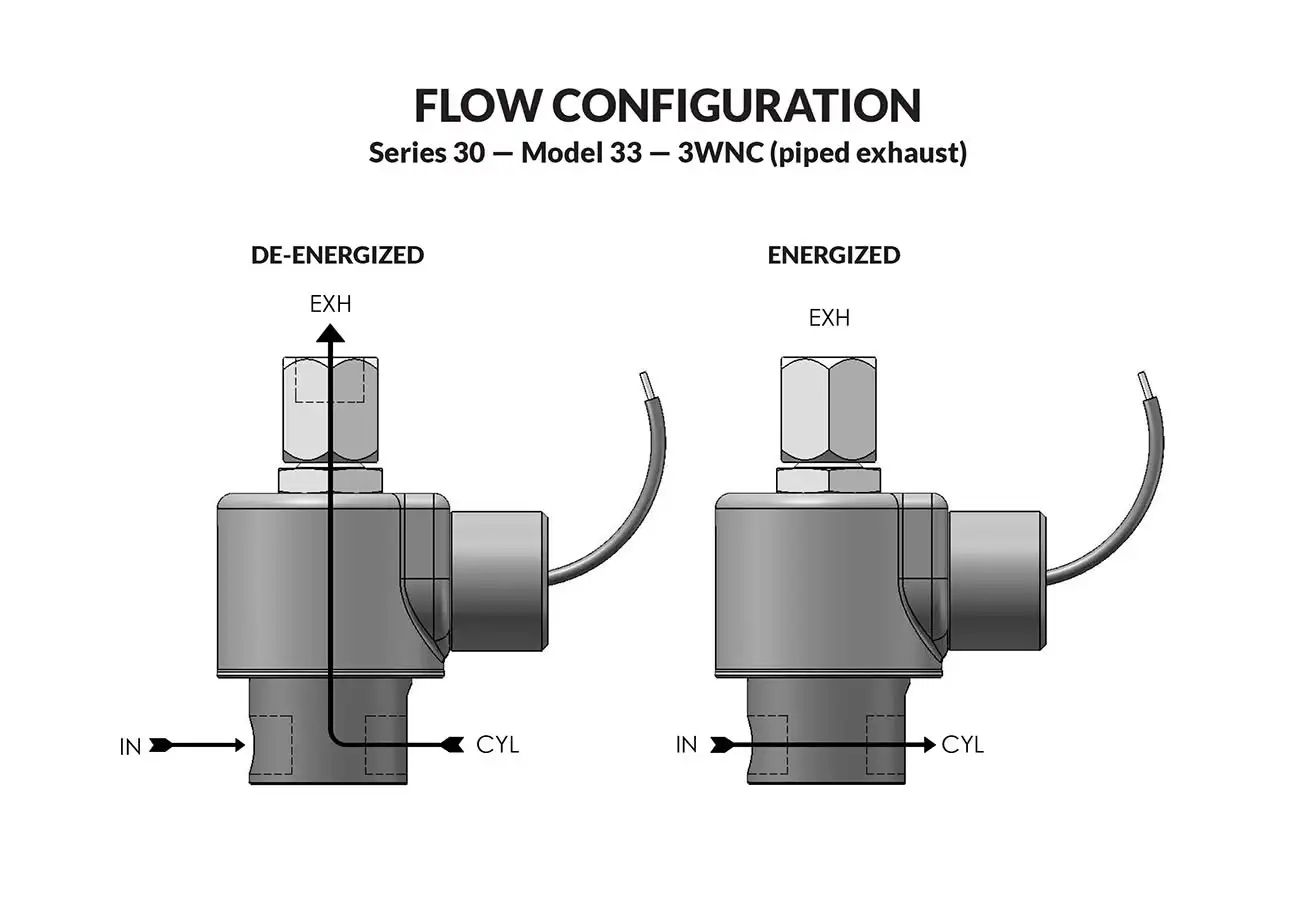

3-Way Normally Closed Valve (Piped Exhaust)


Complete range of valves particularly suitable when cost and size are major factors. The bodies are constructed of brass (stainless steel is optional). Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

  • Brass body with stainless steel internal construction.
  • A smaller, cost effective alternative to any industry standard.
Valve specifications — Series 30 Model 33
MAX. OPER.
PRESS. DIFF.
ORIFICE SIZECV FACTORVALVE NUMBER
GROMMET HOUSING
CONDUIT HOUSING

ACDCINLETEXHINLETEXH1/8 NPT PORTS1/8 NPT PORTS
3003001/321/32.024.02433GG5XGM33GG5XCM
1751753/641/16.052.09533HJ5XGM33HJ5XCM
1251251/161/16.095.09533JJ5XGM33JJ5XCM
75753/323/32.160.16033KK5XGM33KK5XCM
50501/83/32.275.16033NK5XGM33NK5XCM

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (33JJ5XCM 120/60) repair pack (K33JJX AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O33JJ5DCM 120/60)


Operating Conditions

Media
Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 30 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Burst Pressure
5000 PSI
Leakage
Bubble tight for standard valves.
Vacuum
To 5 Microns*

Electrical Characteristics

Coil Voltage
12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
Nominal Power
AC — 8.0 Watts DC — 8.0 Watts
Coil Construction
Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)
Typical Response Time on Air
4 - 16 Milliseconds
Operating Speed
Up to 600 CPM
Duty Cycle
Continuous

Mechanical Characteristics

Body
Brass (Std.) or Stainless Steel (Opt.)
Internal Components
Stainless Steel. Copper – AC Only.
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter
See table above.
Porting
Standard 1/8" NPT (other ports available).*
Housing
Grommet and 1/2″ NPT conduit – many options available.*
Listings
Most valves are UL and CSA listed.*
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Valve Weight
Grommet Valve: 0.75 lb Conduit Valve: 0.81 lb
Repair Packs
See table above.
Options
Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil

Series 30 General Purpose Valves Conduit

Technical drawing — MODEL 33 3WNC PIPED EXHAUST CONDUIT CONNECTION
MODEL 33 3WNC PIPED EXHAUST CONDUIT CONNECTION


Series 30 General Purpose Valves DIN

Technical drawing — MODEL 33 1/8-27 NPT 3WNC PIPED EXHAUST DIN STYLE COIL
MODEL 33 1/8-27 NPT 3WNC PIPED EXHAUST DIN STYLE COIL


Series 30 General Purpose Valves Grommet

Technical drawing — MODEL 33 1/8-27 NPT PORTS 3WNC PIPED EXHAUST GROMMET WITH LEADS
MODEL 33 1/8-27 NPT PORTS 3WNC PIPED EXHAUST GROMMET WITH LEADS


Series 30 General Purpose Valves Grommet/Bracket Connection

Technical drawing — MODEL 33 1/8-27 NPT 3WNC PIPED EXHAUST GROMMET/BRACKET WITH LEADS
MODEL 33 1/8-27 NPT 3WNC PIPED EXHAUST GROMMET/BRACKET WITH LEADS
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com


Series 30 General Purpose Valves Conduit/Bracket Connection

Technical drawing — MODEL 33 1/8-27 NPT 3WNC PIPED EXHAUST CONDUIT/BRACKET CONNECTION
MODEL 33 1/8-27 NPT 3WNC PIPED EXHAUST CONDUIT/BRACKET CONNECTION
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com

Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
