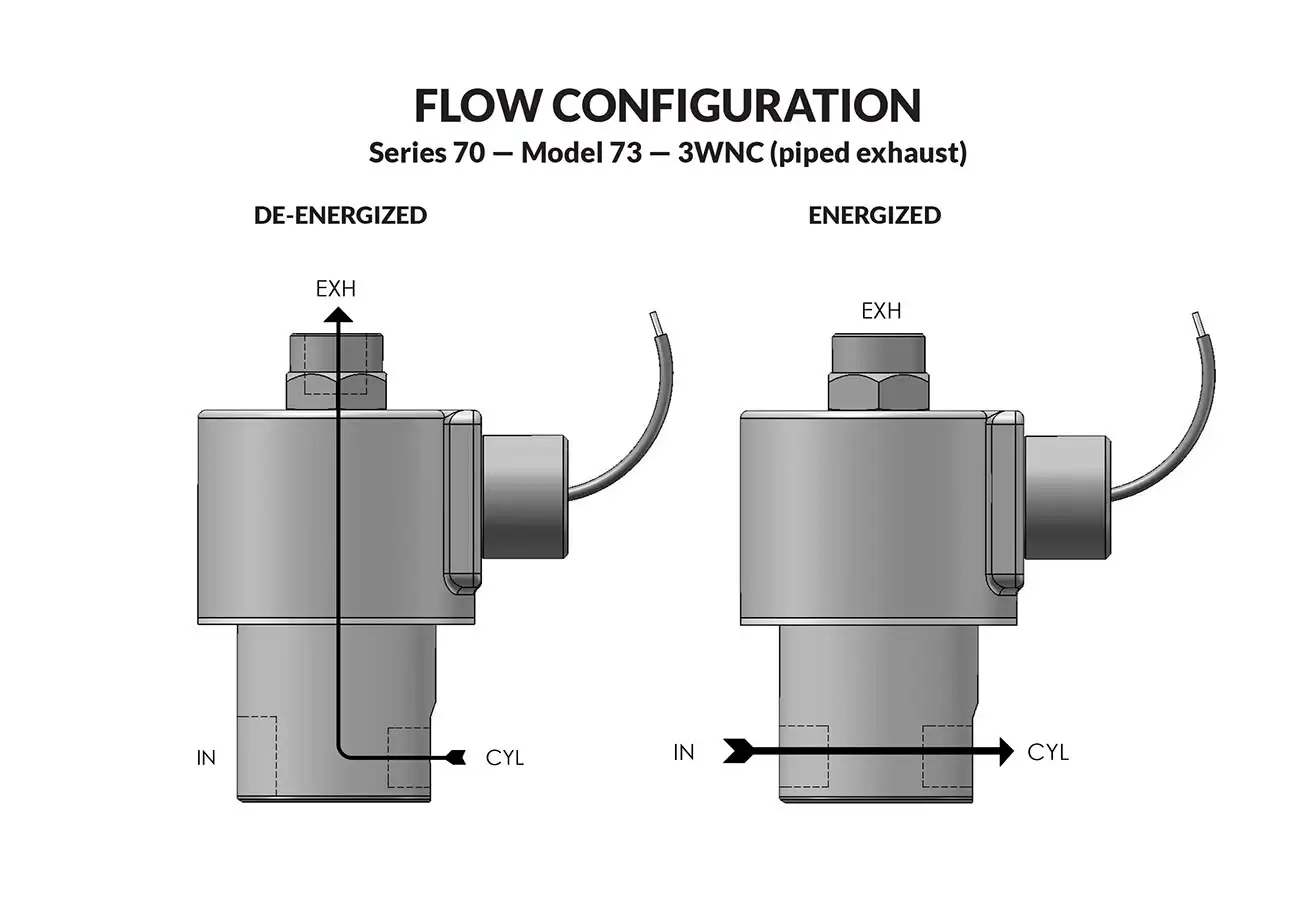

3-Way Normally Closed Valve (Piped Exhaust)
Super valves that have ratings that formerly required valves of much greater size. Air, water, and other fluids are compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.
- Largest direct acting non-piloted valve we manufacture.
- Large orifice.
- High flow.
- Will operate effectively at very low pressures or vacuum.
| MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | GROMMET HOUSING | CONDUIT HOUSING | |||
|---|---|---|---|---|---|---|---|
| AC | DC | INLET | EXH | INLET | EXH | 1/4 NPT PORTS | 1/4 NPT PORTS |
| 350 | 350 | 1/16 | 1/16 | .09 | .09 | 73JJ9ZGM | 73JJ9ZCM |
| 250 | 250 | 3/32 | 3/32 | .22 | .22 | 73KK9ZGM | 73KK9ZCM |
| 175 | 175 | 1/8 | 1/8 | .35 | .35 | 73NN9ZGM | 73NN9ZCM |
| 125 | 125 | 5/32 | 5/32 | .45 | .45 | 73OO9ZGM | 73OO9ZCM |
| 100 | 100 | 3/16 | 3/16 | .50 | .50 | 73PP9ZGM | 73PP9ZCM |
| 50 | 50 | 1/4 | 3/16 | .78 | .50 | 73RP9ZGM | 73RP9ZCM |
Ordering Information:
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (73OO9ZGM 120/60) repair pack (K73OOX AC)
When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O73OODDGM 120/60)
Operating Conditions
- Media
- Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 70 pressure ratings may change due to the viscosity of the liquid.)*
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 4000 PSI
- Leakage
- Bubble tight for standard valves.
- Vacuum
- To 5 Microns*
Electrical Characteristics
- Coil Voltage
- 12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
- Nominal Power
- AC — 18.0 Watts DC — 16.0 Watts
- Coil Construction
- Molded Class F (Std.), Potted and Class H Option
- Typical Response Time on Air
- 4 - 16 Milliseconds
- Operating Speed
- Up to 600 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Body
- Stainless Steel (Std.) or Brass (Opt.)
- Internal Components
- Stainless Steel. Copper – AC Only.
- Elastomers
- Nitrile (Buna) (Std.). Many other elastomers available.*
- Orifice Diameter
- See table above.
- Porting
- Standard 1/4" NPT (other ports available).*`
- Housing
- Grommet and 1/2" NPT conduit - many options available.*
- Listings
- Most valves are UL and CSA listed.*
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- Grommet Valve: 2.00 lb Conduit Valve: 2.06 lb
- Repair Packs
- See table above.
- Options
- Alternate Port Locations, Metering and Alternate Elastomers * Consult representative or factory for options and specifications.
