2-Way Normally Open

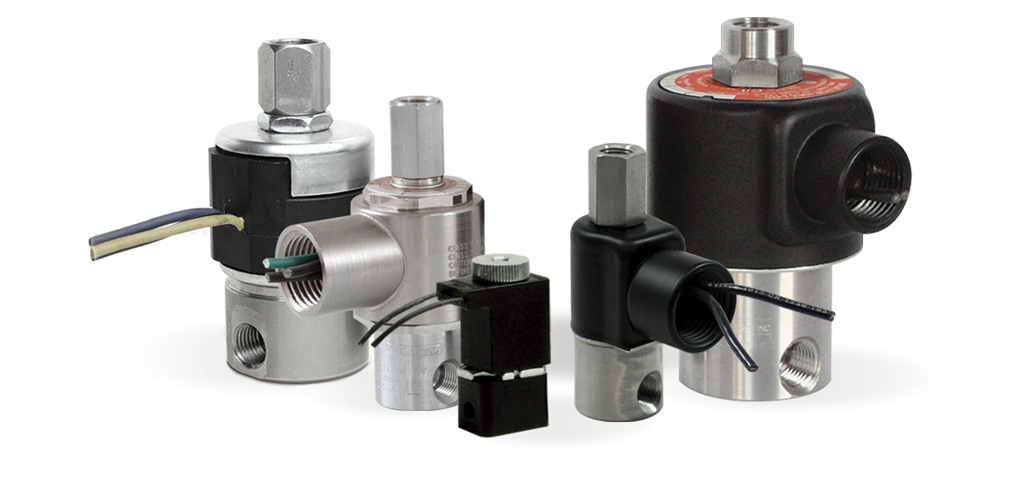

2-Way Normally Open valve

PeterPaul single orifice valves in which the orifice is open in the de-energized position and flow can exist between the inlet and outlet ports.

  • Full line of Operators
  • Wide range of options
  • Available in hazardous location, low watt and high pressure

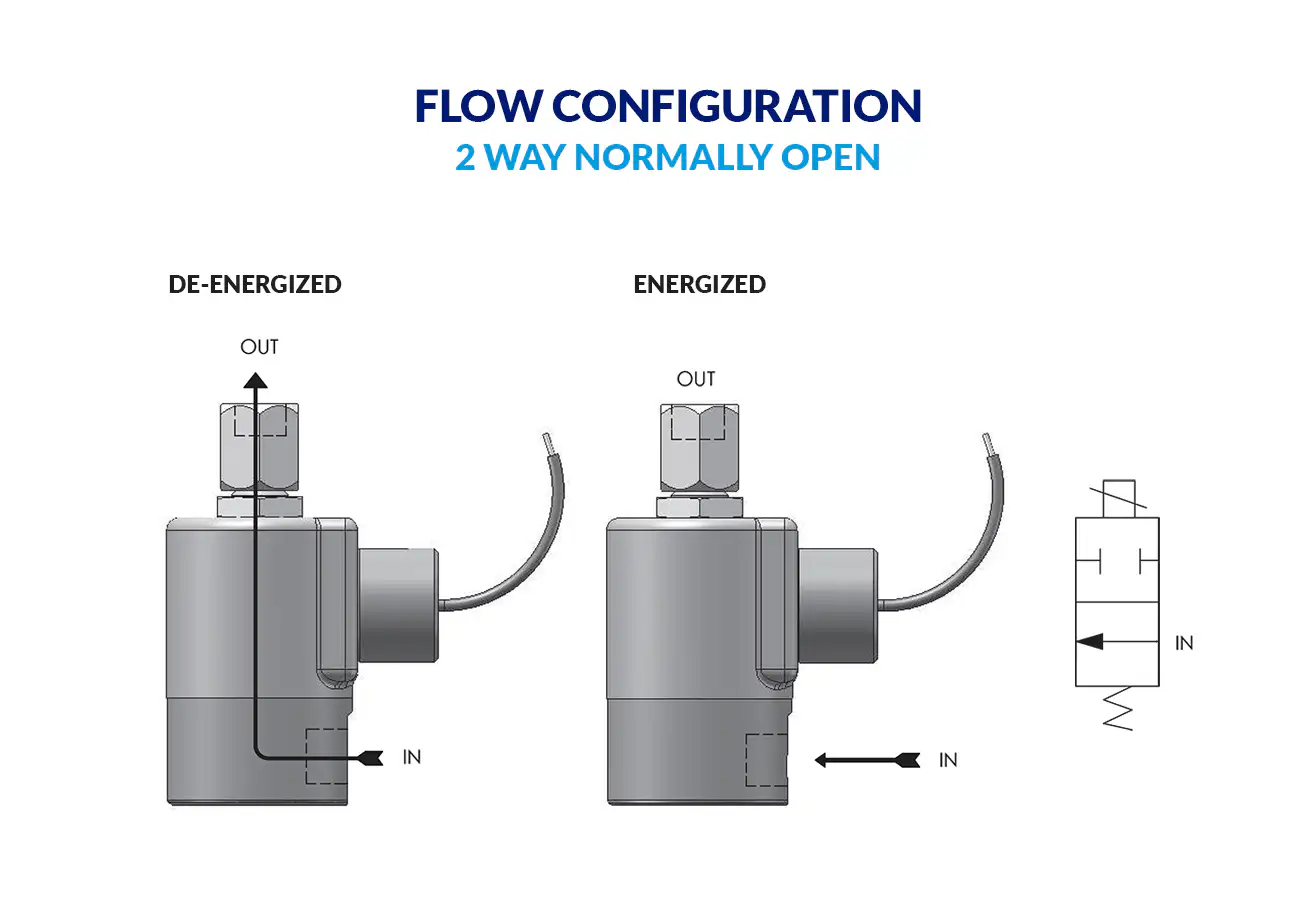

2-Way Normally Open flow diagram

General Purpose 2-Way Normally Open Valves

PeterPaul general purpose solenoid valves offer a wide range of control options over the flow of liquids and gases in applications from dispensing to instrumentation, commercial equipment, machinery, medical/dental equipment, control systems and off-highway equipment, to name just a few.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)" Watts
15/151 1/8" NPT 0 - 400 .020 - .130 2.95 x 1.13
20/21 1/8" or 1/4" NPT 0 - 700 .024 - .201 3.48 x 1.63
20/BP21 1/8" or 1/4" NPT 0 - 1750 .024 - 1.0 2.75 x 1.63
20/H21 1/8" or 1/4" NPT 0 - 2000 0.01 3.48 x 1.69
30/31 1/8" NPT 0 - 300 .024 - .160 3.28 x 1.63
50/51 1/8" NPT 0 - 400 .020 - .150 2.95 x 1.0
58/581 10-32 0 - 300 .010 - .034 2.26 x 1.06 3.5
70/71 1/4" NPT 0 - 350 .090 - .500 3.52 x 2.25
80/818 1/2" or 1" NPT 3 - 100 4.0 - 13.0 up to 11.74 x 8.82

Hazardous Location 2-Way Normally Open Valves

PeterPaul hazardous location valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Explosion Proof valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required. For applications that require low power, a low watt version is also offered.

Series/Model Certification Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)" Watts
20/E21 North AmericanIECEx/ATEX 1/8" or 1/4" NPT 0 - 700 .024 - .227 4.0 x 2.63
20/EH21 North AmericanIECEx/ATEX 1/8" NPT 0 - 3000 .022 - .084 3.42 x 2.69
E20/EL21 North AmericanIECEx/ATEX 1/8" or 1/4" NPT 0 - 400 .024 - .204 3.98 x 2.59 1.8
E50/E51 North American 1/8" NPT 0 - 400 .020 - .150 3.27 x 2.25
EL50/EL51 North American 1/8" NPT 0 - 200 .020 - .075 3.27 x 1.44 1.8
70/N71 North American 1/4" NPT 0-350 .09 - .50 3.42 X 2.69

Low Watt 2-Way Normally Open Valves

PeterPaul low watt valves are general purpose or safety valves for pneumatic and hydraulic applications. The versatility of these valves is increased to include the handling of hot air, hot water, refrigerants and many other media, by the use of different seals.

Series/Model Certification Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)" Watts
E20/EL21 North AmericanIECEx/ATEX 1/8" or 1/4" NPT 0 - 400 .024 - .204 3.98 x 2.59 1.8
50ELW/ELW51 1/8" NPT 0 - 300 .022 - .150 3.78 x 1.20 1.8
50SLW/SLW51 1/8" NPT 0 - 300 .022 - .150 3.78 x 1.20 1.8
50LW/LW51 1/8" NPT 0 - 300 .020 - .150 2.95 x 1.00 2.5
58/581 10-32 0 - 300 .010 - .034 2.26 x 1.06 3.5
EL50/EL51 North American 1/8" NPT 0 - 200 .020 - .075 3.27 x 1.44 1.8
L58/L581 Manifold Mt. or 10-32 0 - 150 .010 - .020 2.26 x 1.06 0.9

High Pressure 2-Way Normally Open Valves

PeterPaul high pressure valves operate with a pressure between 1000 and 3000 PSI. Medical, Laboratory, Instrumentation and Industrial companies, etc. that require high pressure bottled gas with media such as O2, CO2 and compressed Nitrogen use our valve in various applications.

Series/Model Certification Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
20/EH21 North AmericanIECEx/ATEX 1/8" NPT 0 - 3000 .022 - .084 3.42 x 2.69
20/H21 1/8" or 1/4" NPT 0 - 2000 0.01 3.48 x 1.69
