3-Way Multi-Purpose

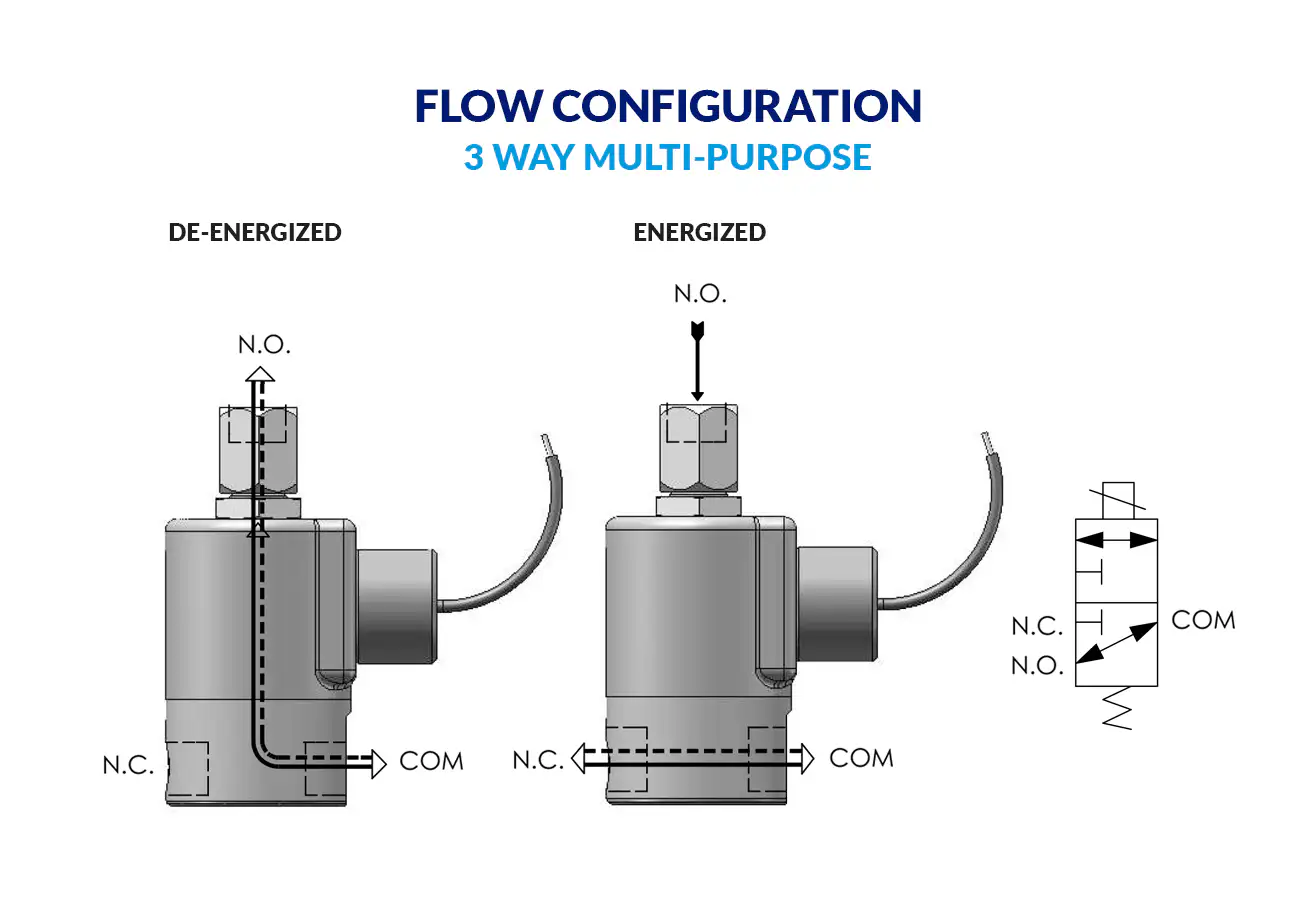

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the common and normally closed ports but flow does exist between common and normally open ports.

3-Way Multi-Purpose flow diagram

General Purpose 3-Way Multi-Purpose Valves

PeterPaul general purpose solenoid valves offer a wide range of control options over the flow of liquids and gases in applications from dispensing to instrumentation, commercial equipment, machinery, medical/dental equipment, control systems and off-highway equipment, to name just a few.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)" Watts
15/156 1/8" NPT 0 - 125 .022 - .130 2.95 x 1.13
20/26 1/8" or 1/4" NPT 0 - 400 .024 - .284 3.48 x 1.63
30/36 1/8" NPT 0 - 300 .024 - .160 3.28 x 1.63
50/56 1/8" NPT 0 - 125 .022 - .156 2.95 x 1.0
58/586 Manifold Mt. or 10-32 0 - 145 .010 - .034 2.26 x 1.06 3.5
70/76 1/4" NPT 0 - 225 .09 - .50 3.75 x 2.25
76X00950GM 24/DC 3/8" NPT 2 2.2 3.98 x 2.25

Hazardous Location 3-Way Multi-Purpose Valves

PeterPaul hazardous location valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Explosion Proof valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required. For applications that require low power, a low watt version is also offered.

Series/Model Certification Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)" Watts
20/E26 North AmericanIECEx/ATEX 1/8" or 1/4" NPT 0 - 400 .024 - .284 4.0 x 2.63
E20/EL26 North AmericanIECEx/ATEX 1/8" or 1/4" NPT 0 - 256 .024 - .156 3.98 x 2.59 1.8
E50/E56 North AmericanIECEx/ATEX 1/8" NPT 0 - 125 .022 - .156 3.27 x 2.25
MLV20/N26 (FIXED POLARITY) CLASS I DIV II North American 1/8" or 1/4" NPT 0 - 175 .024 - .156 3.661 x 1.775
70/N76 North American 1/4" NPT 0 – 350 .09 - .78 3.42 x 2.69

Low Watt 3-Way Multi-Purpose Valves

PeterPaul low watt valves are general purpose or safety valves for pneumatic and hydraulic applications. The versatility of these valves is increased to include the handling of hot air, hot water, refrigerants and many other media, by the use of different seals.

Series/Model Certification Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)" Watts
E20/EL26 North AmericanIECEx/ATEX 1/8" or 1/4" NPT 0 - 256 .024 - .156 3.98 x 2.59 1.8
58/586 Manifold Mt. or 10-32 0 - 145 .010 - .034 2.26 x 1.06 3.5
