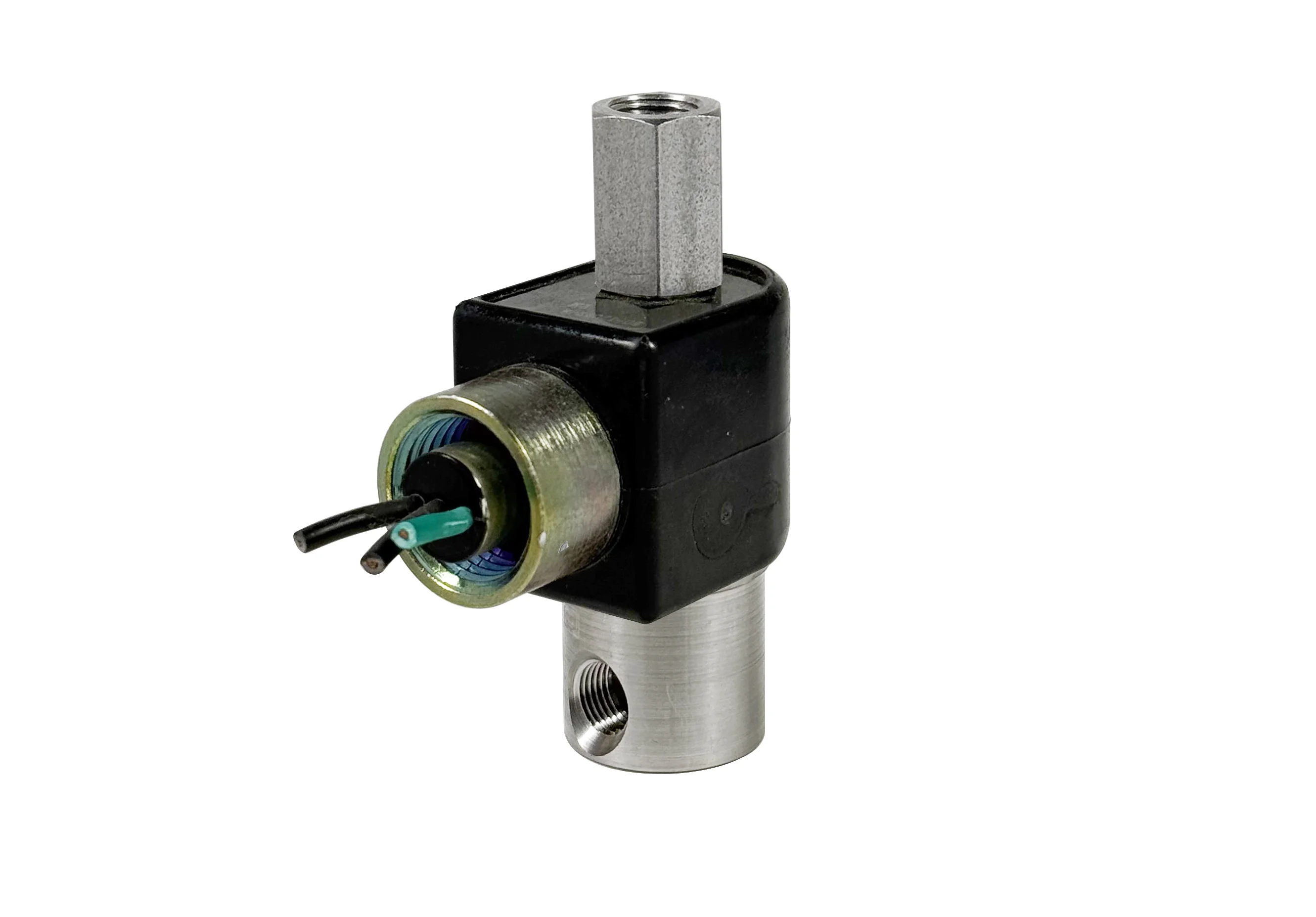

Series 50 SLW Model SLW53 - Piped Exhaust


3-Way Normally Closed Valve (Piped Exhaust)


General purpose valves for pneumatic and hydraulic applications. The versatility of these valves is increased to include the handling of hot air, hot water, refrigerants, and many other media by the use of different seals. Air and other fluids are compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials.

  • General purpose valve with reduced power consumption.
  • Increased versatility.
  • For pneumatic and hydraulic applications.
  • NEMA 4 rating is standard with encapsulated coil.
  • High quality engineering.
Valve specifications — Series 50 SLW Model SLW53
MAX. OPER. PRESS. DIFF.ORIFICE SIZECV FACTORVALVE NUMBER
GASLIQUID
ACDCACDCN.C.N.O.N.C.N.O.
2151352151351/321/32.022.020SLW53GG8XCCP
215120120651/323/64.022.048SLW53GH8XCCP
1355040301/321/16.022.075SLW53GJ8XCCP
703530201/321/16.022.134SLW53GV8XCCP
553025151/323/32.022.150SLW53GK8XCCP
12070120653/643/64.055.048SLW53HH8XCCP
1205040303/641/16.055.075SLW53HJ8XCCP
703530203/641/16.055.134SLW53HV8XCCP
553025153/643/32.055.150SLW53HK8XCCP
854040301/161/16.075.075SLW53JJ8XCCP
703530201/161/16.075.134SLW53JV8XCCP
553025151/163/32.075.150SLW53JK8XCCP
503030205/641/16.134.134SLW53VV8XCCP
503025155/643/32.134.150SLW53VK8XCCP
352025155/643/32.156.150SLW53KK8XCCP

Operating Conditions

Media
Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 140°F (60°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Burst Pressure
5000 PSI
Leakage
Bubble tight for standard valves.
Vacuum
To 5 Microns*

Electrical Characteristics

Coil Voltage
12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
Nominal Power
AC — 1.8 Watts DC — 1.8 Watts
Coil Construction
Encapsulated Class F Coil with third wire ground
Typical Response Time on Air
4 - 16 Milliseconds
Operating Speed
Up to 600 CPM
Duty Cycle
Continuous

Mechanical Characteristics

Body
Stainless Steel (Std.) or Brass (Opt.)
Internal Components
Stainless Steel. Copper – AC Only.
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter
See table above.
Porting
1/8" NPT (Std.)
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Valve Weight
0.60 lbs
Repair Packs
See table above.
Options
Alternate Port Locations, Metering, and Alternate Elastomers*


Series 50 SLW Encapsulated Low Watt Valves Conduit Connection

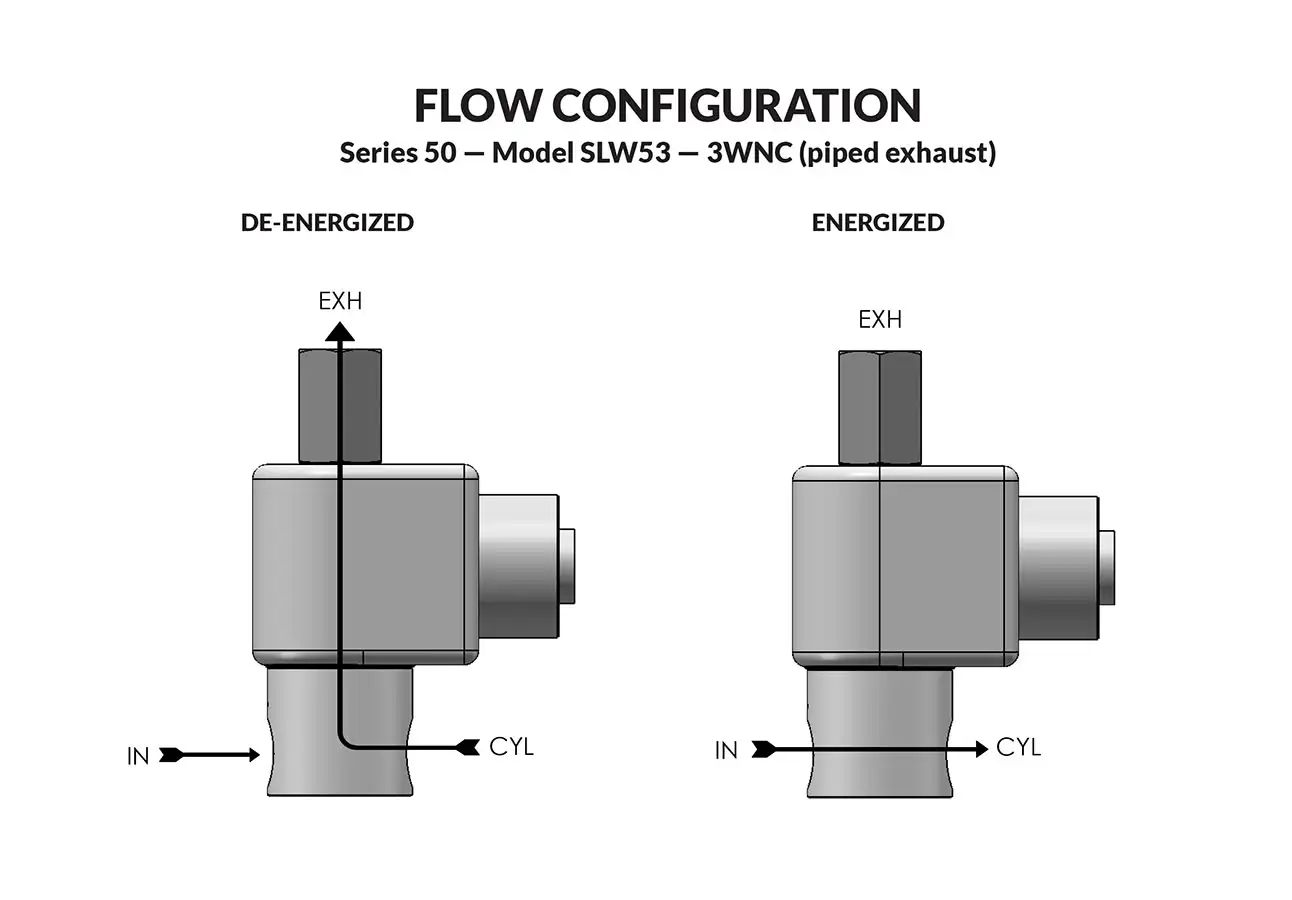

Technical drawing — 3WNC PIPED EXHAUST CONDUIT CONNECTION
3WNC PIPED EXHAUST CONDUIT CONNECTION
Technical drawing — 10-32 PORTS 3WNC PIPED EXHAUST CONDUIT CONNECTION
10-32 PORTS 3WNC PIPED EXHAUST CONDUIT CONNECTION
Technical drawing — BODY OPTION "E" 3WNC PIPED EXHAUST CONDUIT CONNECTION
BODY OPTION "E" 3WNC PIPED EXHAUST CONDUIT CONNECTION
Technical drawing — BODY OPTION "O" 3WNC PIPED EXHAUST CONDUIT CONNECTION
BODY OPTION "O" 3WNC PIPED EXHAUST CONDUIT CONNECTION
Technical drawing — BODY OPTION "R" 3WNC PIPED EXHAUST CONDUIT CONNECTION
BODY OPTION "R" 3WNC PIPED EXHAUST CONDUIT CONNECTION
Technical drawing — METERED BODY 3WNC PIPED EXHAUST CONDUIT CONNECTION
METERED BODY 3WNC PIPED EXHAUST CONDUIT CONNECTION

Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.
