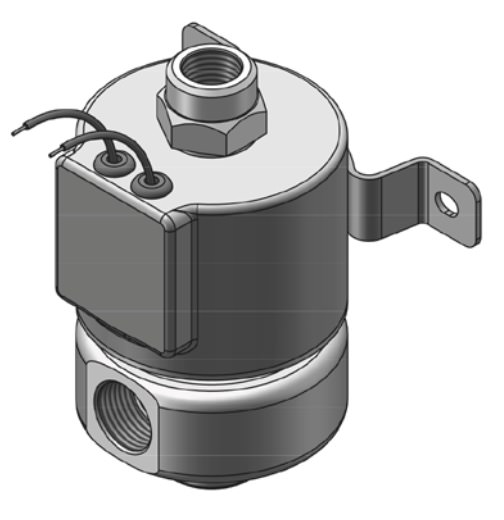

3-Way Multi-purpose Valve
3-Way Dual-Inlet, Single Outlet Direct acting valve switches inlet breath pressure to outlet breath pressure. Can run air to 100% oxygen. Very high CV flow coefficient. Very quiet operation.
- Very quiet switching operation.
- Controls the flow of air (up to 100% oxygen).
| + MAX. OPER. PRESS. DIFF. DC | ORIFICE SIZE | CV FACTOR | VALVE NUMBER |
|---|---|---|---|
| 2 | 1/4" | 2.2 | 76X00950GM 24/DC |
Operating Conditions
- Media
- Air up to 100% oxygen
- Valve Temperature Range
- 0°F (-18°C) to 104°F (40°C) ambient
- Maximum Operating Pressure Differentials
- 2 psi
- Leakage
- Bubble tight.
Electrical Characteristics
- Coil Voltage
- 12, 24/DC
- Nominal Power
- 12.5 Watts
- Coil Construction
- Molded, Class F.
- Duty Cycle
- Continuous
Mechanical Characteristics
- Body
- Brass
- Internal Components
- Stainless Steel.
- Elastomers
- Nitrile (Buna).
- Orifice Diameter
- See table above.
- Porting
- See drawing
- Housing
- Grommet with mounting bracket.
- Life Expectancy
- Over 10 Million cycles.
- Valve Weight
- 2.1325 lbs
- Repair Packs
- See table above.
Series 70 3-Way Multi-Purpose Ventilator Valve
Cv Flow Formulae
PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.
The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.
Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.
Liquid Flow
Gas Flow P2 > 53% of P1 (subsonic)
Gas Flow P2 < 53% of P1 (sonic)
DISCLAIMER: Gas flow is only an approximation using Cv.
