Series 50 Model 56


3-Way Multi-purpose Valve


Our original mini — engineered for space economy without sacrificing performance. Typical applications include medical, analytical instrumentation. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

  • Tough with options to use in hazardous location environments or low watt applications.
  • High quality engineering.

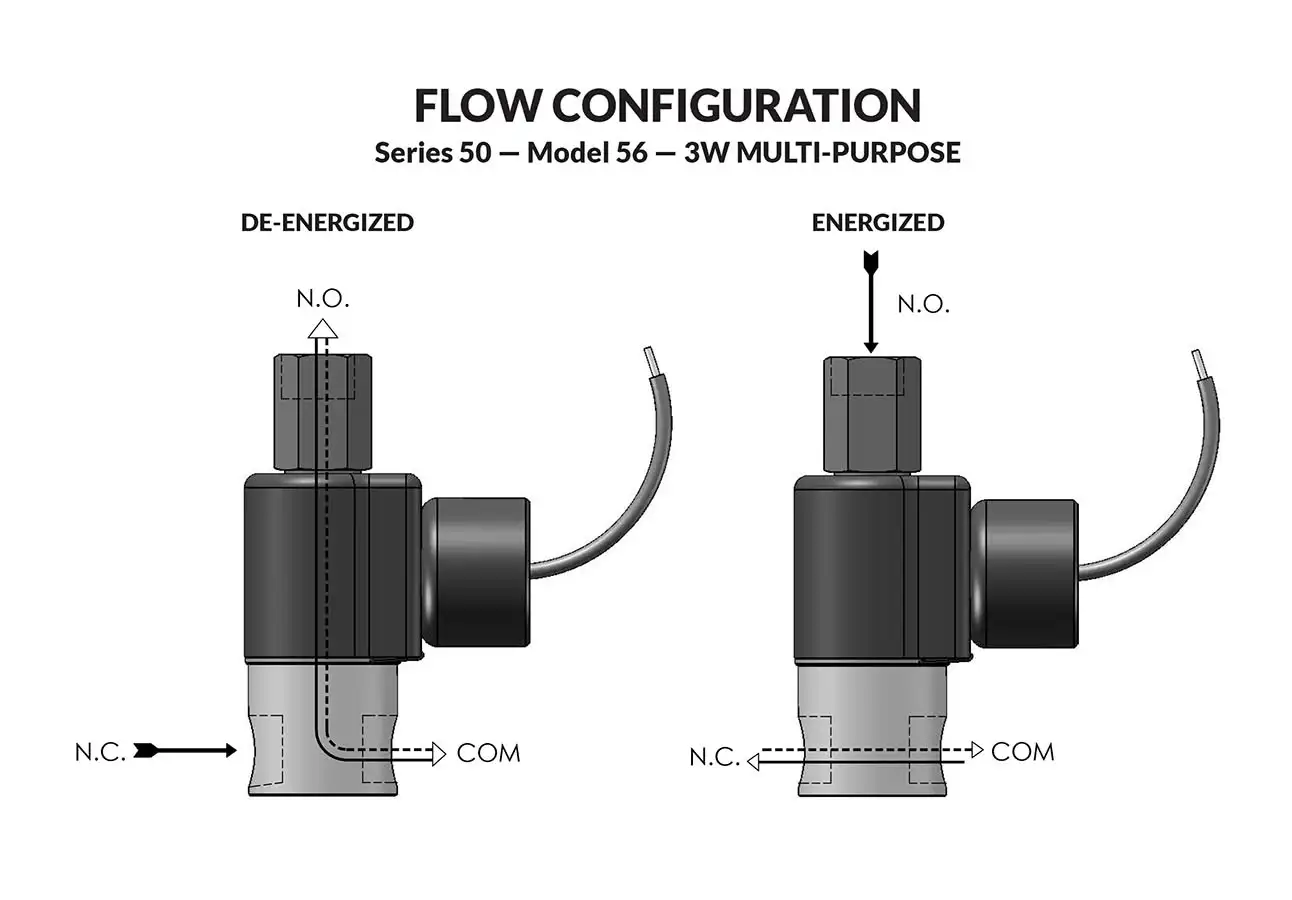

Valve specifications — Series 50 Model 56
MAX. OPER.
PRESS. DIFF.
ORIFICE SIZECV FACTORVALVE NUMBER
GROMMET HOUSING
CONDUIT HOUSING
ACDCN.C.N.O.N.C.N.O.1/8 NPT PORTS1/8 NPT PORTS
1251251/321/32.022.02056GG8XGM56GG8XCM
1001003/643/64.055.04856HH8XGM56HH8XCM
65501/161/16.075.07556JJ8XGM56JJ8XCM
25253/323/32.156.15056KK8XGM56KK8XCM

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (56JJ8XGM 120/60) repair pack (K56JDX AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O56JJDDGM 120/60)


Operating Conditions

Media
Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Burst Pressure
5000 PSI
Leakage
Bubble tight for standard valves.
Vacuum
To 5 Microns*

Electrical Characteristics

Coil Voltage
12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
Nominal Power
AC — 6.0 Watts, DC — 7.0 Watts
Coil Construction
Molded and potted Class F. (Class H optional)
Typical Response Time on Air
4 - 16 Milliseconds
Operating Speed
Up to 600 CPM
Duty Cycle
Continuous

Mechanical Characteristics

Body
Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.)
Internal Components
Stainless Steel. Copper – AC Only.
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter
See table above.
Porting
Standard 1/8" NPT (other ports available).*
Housing
Grommet and 1/2" NPT conduit - many options available.*
Listings
Most valves are UL and CSA listed.*
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Valve Weight
Grommet Valve: 0.38 lb Conduit Valve: 0.44 lb
Repair Packs
See table above.
Options
Alternate Port Locations, Metering, Alternate Elastomers, Low Wattage, Spade Terminal Coil and Explosion Proof*

Series 50 General Purpose Valves Conduit

Technical drawing — MODEL 56 3W MULTI-PUPOSE CONDUIT CONNECTION
MODEL 56 3W MULTI-PUPOSE CONDUIT CONNECTION
Technical drawing — MODEL 56 STUD MOUNT BODY 3W MULTI-PUPOSE CONDUIT CONNECTION
MODEL 56 STUD MOUNT BODY 3W MULTI-PUPOSE CONDUIT CONNECTION


Series 50 General Purpose Valves Grommet

Technical drawing — MODEL 56 3W MULTI-PURPOSE GROMMET WITH LEADS
MODEL 56 3W MULTI-PURPOSE GROMMET WITH LEADS
Technical drawing — MODEL 56 STUD MOUNT BODY 3W MULTI-PURPOSE GROMMET WITH LEADS
MODEL 56 STUD MOUNT BODY 3W MULTI-PURPOSE GROMMET WITH LEADS


Series 50 General Purpose Valves Yoke Leads

Technical drawing — MODEL 56 3-WAY MULTI-PURPOSE YOKE WITH LEADS
MODEL 56 3-WAY MULTI-PURPOSE YOKE WITH LEADS
Technical drawing — MODEL 56 STUD MOUNT BODY 3-WAY MULTI-PURPOSE YOKE WITH LEADS
MODEL 56 STUD MOUNT BODY 3-WAY MULTI-PURPOSE YOKE WITH LEADS


Series 50 General Purpose Valves Yoke Spades

Technical drawing — MODEL 56 3-WAY MULTI-PURPOSE YOKE WITH SPADE TERMINALS
MODEL 56 3-WAY MULTI-PURPOSE YOKE WITH SPADE TERMINALS
Technical drawing — MODEL 56 STUD MOUNT BODY 3-WAY MULTI-PURPOSE YOKE WITH SPADE TERMINALS
MODEL 56 STUD MOUNT BODY 3-WAY MULTI-PURPOSE YOKE WITH SPADE TERMINALS

Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
