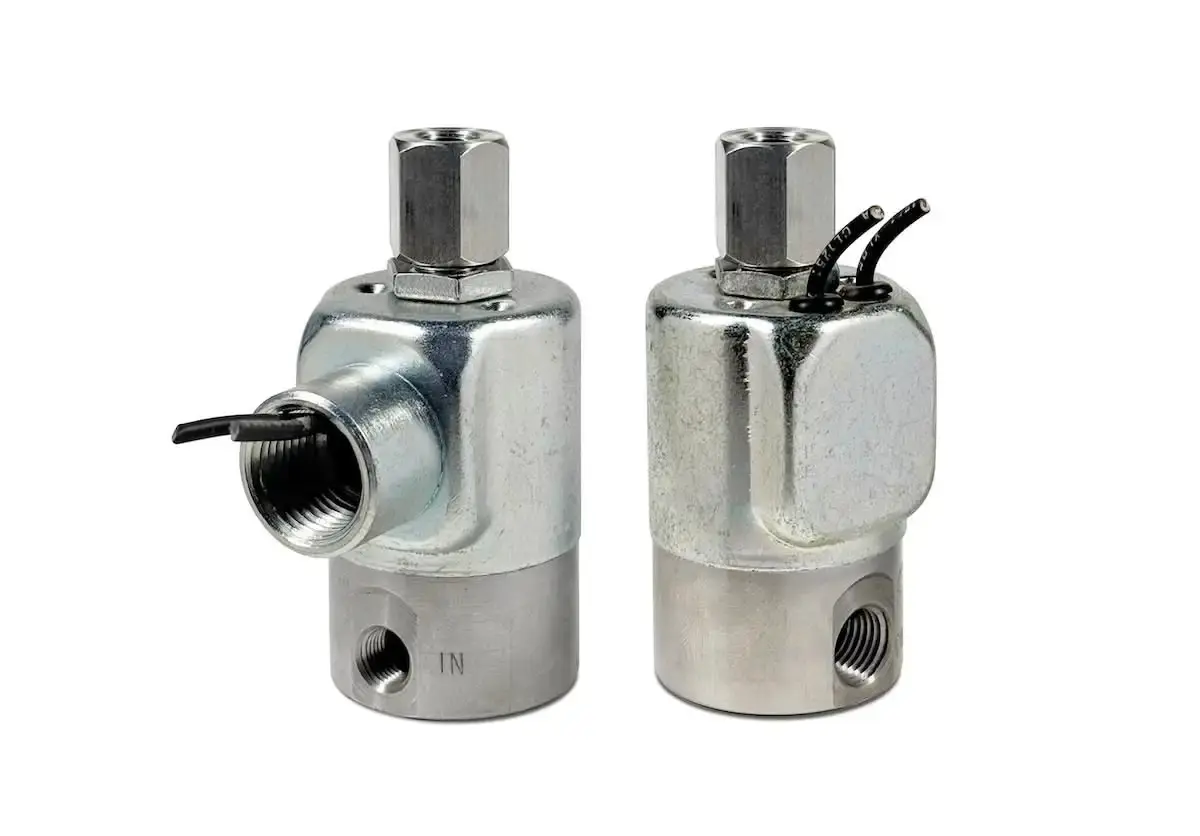

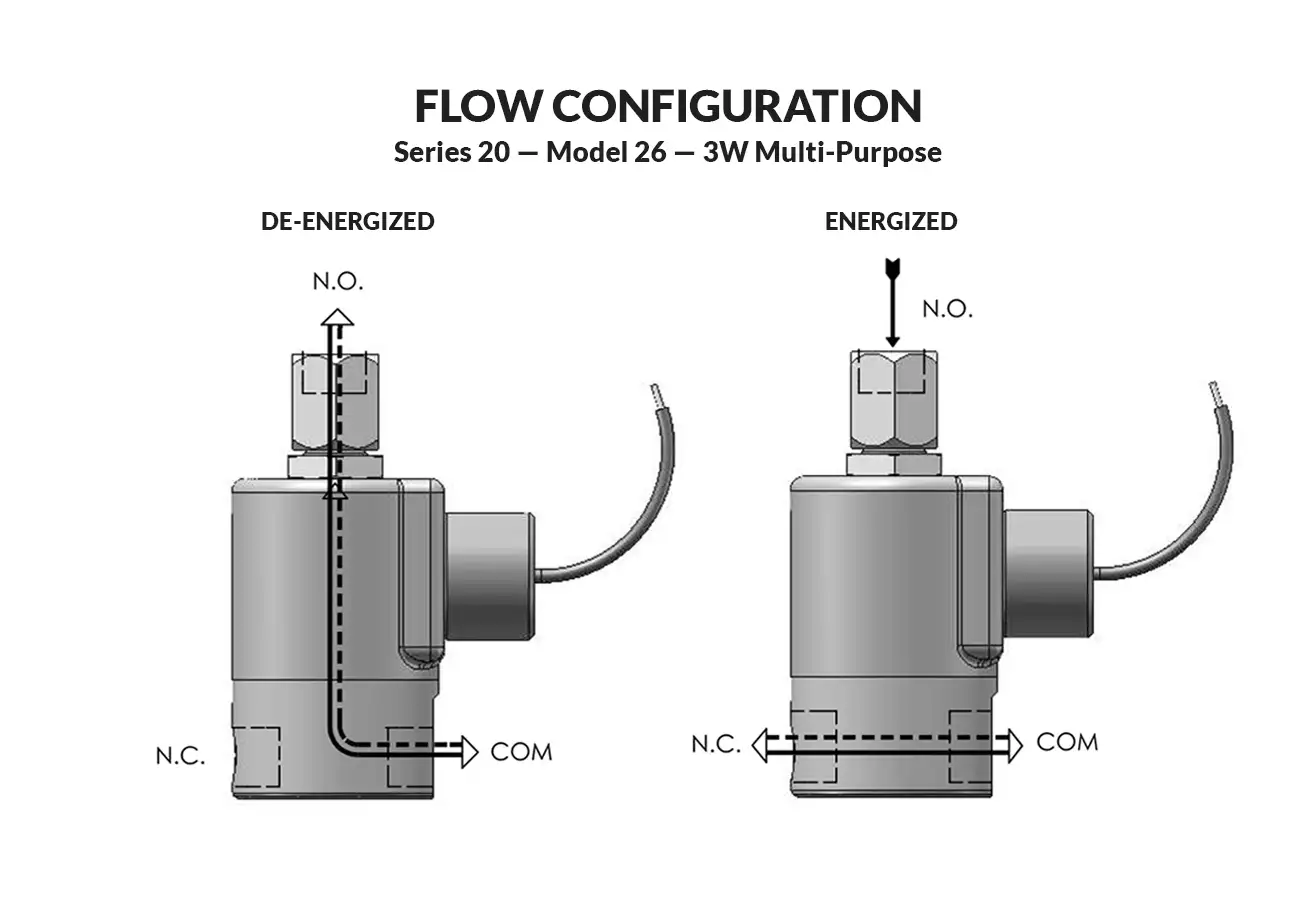

3-Way Multi-purpose Valve

A complete line of valves with a great selection of options and exceptional proven performance. The standard in the field. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

The flagship valve initially created for the fluid power industry.
Heavy duty and made of stainless steel.
A real workhorse with proven performance.
It has the greatest amount of options available of all the valves.
Wide range of orifice sizes from 1/32" to 1/8".

Valve specifications — Series 20 Model 26
MAX. OPER. PRESS. DIFF.		ORIFICE SIZE		CV FACTOR		VALVE NUMBER GROMMET HOUSING		CONDUIT HOUSING
AC	DC	N.C.	N.O.	N.C.	N.O.	1/8 NPT PORTS	1/4 NPT PORTS	1/8 NPT PORTS	1/4 NPT PORTS

400	400	1/32	1/32	.024	.024	26GG7XGM	26GG9ZGM	26GG7XCM	26GG9ZCM
150	150	3/64	3/64	.052	.052	26HH7XGM	26HH9ZGM	26HH7XCM	26HH9ZCM
100	100	1/16	1/16	.095	.095	26JJ7XGM	26JJ9ZGM	26JJ7XCM	26JJ9ZCM
75	75	3/32	3/32	.156	.156	26KK7XGM	26KK9ZGM	26KK7XCM	26KK9ZCM
35	35	1/8	1/8	.284	.201	26NN7XGM^	26NN9ZGM^	26NN7XCM^	26NN9ZCM^

^ VALVES WITH 1/8 N.O. ORIFICE ARE UL LISTED ONLY

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (26JJ9ZGM 120/60) repair pack (K26JJX AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O26JJDDGM 120/60)

Operating Conditions

Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

Electrical Characteristics

Coil Voltage: 12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
Nominal Power: AC — 8.7 Watts, DC — 9.5 Watts
Coil Construction: Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

Mechanical Characteristics

Body: Stainless Steel (Std.) or Brass (Opt.)
Internal Components: Stainless Steel. Copper – AC Only.
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: Standard 1/8" and 1/4" NPT (other ports available).*
Housing: Grommet and 1/2" NPT conduit - many options available.*
Listings: Most valves are UL and CSA listed.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 1.13 lb Conduit Valve: 1.19 lb
Repair Packs: See table above.
Options: Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil, European Style DIN, Explosion Proof and Magnetic Latching Coil.*

Series 20 General Purpose Valves Conduit

Technical drawing — MODEL 26 1/4-18 NPT 3W MULTI-PURPOSE CONDUIT CONNECTION — MODEL 26 1/4-18 NPT 3W MULTI-PURPOSE CONDUIT CONNECTION

Technical drawing — MODEL 26 1/8-27 NPT 3W MULTI-PURPOSE CONDUIT CONNECTION — MODEL 26 1/8-27 NPT 3W MULTI-PURPOSE CONDUIT CONNECTION

Technical drawing — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE CONDUIT COIL CONNECTION — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE CONDUIT COIL CONNECTION

Technical drawing — MODEL 26 METERING 3-WAY MULTI-PURPOSE CONDUIT COIL CONNECTION — MODEL 26 METERING 3-WAY MULTI-PURPOSE CONDUIT COIL CONNECTION

Series 20 General Purpose Valves DIN

Technical drawing — MODEL 26 1/4-18 NPT 3-WAY MULTI-PURPOSE DIN STYLE COIL — MODEL 26 1/4-18 NPT 3-WAY MULTI-PURPOSE DIN STYLE COIL

Technical drawing — MODEL 26 1/8-27 NPT 3-WAY MULTI-PURPOSE DIN STYLE COIL — MODEL 26 1/8-27 NPT 3-WAY MULTI-PURPOSE DIN STYLE COIL

Technical drawing — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE DIN STYLE COIL — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE DIN STYLE COIL

Technical drawing — MODEL 26 METERING 3-WAY MULTI-PURPOSE DIN STYLE COIL — MODEL 26 METERING 3-WAY MULTI-PURPOSE DIN STYLE COIL

Series 20 General Purpose Valves Grommet

Technical drawing — MODEL 26 1/4-18 NPT 3W MULTI-PURPOSE GROMMET WITH LEADS — MODEL 26 1/4-18 NPT 3W MULTI-PURPOSE GROMMET WITH LEADS

Technical drawing — MODEL 26 1/8-27 NPT 3W MULTI-PURPOSE GROMMET WITH LEADS — MODEL 26 1/8-27 NPT 3W MULTI-PURPOSE GROMMET WITH LEADS

Technical drawing — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE GROMMET HOUSING WITH LEADS — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE GROMMET HOUSING WITH LEADS

Technical drawing — MODEL 26 METERING 3-WAY MULTI-PURPOSE GROMMET HOUSING WITH LEADS — MODEL 26 METERING 3-WAY MULTI-PURPOSE GROMMET HOUSING WITH LEADS

Series 20 General Purpose Valves Yoke Leads

Technical drawing — MODEL 26 1/4-18 NPT 3-WAY MULTI-PURPOSE YOKE WITH LEADS — MODEL 26 1/4-18 NPT 3-WAY MULTI-PURPOSE YOKE WITH LEADS

Technical drawing — MODEL 26 1/8-27 NPT 3-WAY MULTI-PURPOSE YOKE WITH LEADS — MODEL 26 1/8-27 NPT 3-WAY MULTI-PURPOSE YOKE WITH LEADS

Technical drawing — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE YOKE WITH LEADS — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE YOKE WITH LEADS

Technical drawing — MODEL 26 METERING 3-WAY MULTI-PURPOSE MODLED COIL WITH YOKE — MODEL 26 METERING 3-WAY MULTI-PURPOSE MODLED COIL WITH YOKE

Series 20 General Purpose Valves Yoke Spades

Technical drawing — MODEL 26 1/4-18 NPT 3-WAY MULTI-PURPOSE YOKE WITH SPADES — MODEL 26 1/4-18 NPT 3-WAY MULTI-PURPOSE YOKE WITH SPADES

Technical drawing — MODEL 26 1/8-27 NPT 3-WAY MULTI-PURPOSE YOKE WITH SPADE TERMINALS — MODEL 26 1/8-27 NPT 3-WAY MULTI-PURPOSE YOKE WITH SPADE TERMINALS

Technical drawing — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE YOKE WITH SPADE TERMINALS — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE YOKE WITH SPADE TERMINALS

Technical drawing — MODEL 26 METERING 3-WAY MULTI-PURPOSE YOKE WITH SPADE TERMINALS — MODEL 26 METERING 3-WAY MULTI-PURPOSE YOKE WITH SPADE TERMINALS

Series 20 General Purpose Valves Conduit/Bracket Connection

Technical drawing — MODEL 26 1/4-18 NPT 3-WAY MULTI-PURPOSE CONDUIT/BRACKET CONNECTION — MODEL 26 1/4-18 NPT 3-WAY MULTI-PURPOSE CONDUIT/BRACKET CONNECTION

Technical drawing — MODEL 26 1/8-27 NPT 3-WAY MULTI-PURPOSE CONDUIT/BRACKET CONNECTION — MODEL 26 1/8-27 NPT 3-WAY MULTI-PURPOSE CONDUIT/BRACKET CONNECTION

Technical drawing — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE CONDUIT/BRACKET COIL CONNECTION — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE CONDUIT/BRACKET COIL CONNECTION

Technical drawing — MODEL 26 METERING 3-WAY MULTI-PURPOSE CONDUIT/BRACKET CONNECTION — MODEL 26 METERING 3-WAY MULTI-PURPOSE CONDUIT/BRACKET CONNECTION

Series 20 General Purpose Valves Grommet/Bracket Connection

Technical drawing — MODEL 26 1/4-18 NPT 3-WAY MULTI-PURPOSE GROMMET/BRACKET WITH LEADS — MODEL 26 1/4-18 NPT 3-WAY MULTI-PURPOSE GROMMET/BRACKET WITH LEADS

Technical drawing — MODEL 26 1/8-27 NPT 3-WAY MULTI-PURPOSE GROMMET/BRACKET WITH LEADS — MODEL 26 1/8-27 NPT 3-WAY MULTI-PURPOSE GROMMET/BRACKET WITH LEADS

Technical drawing — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE GROMMET/BRACKET HOUSING WITH LEADS — MODEL 26 MANUAL OVERRIDE 3-WAY MULTI-PURPOSE GROMMET/BRACKET HOUSING WITH LEADS

Technical drawing — MODEL 26 METERING 3-WAY MULTI-PURPOSE GROMMET/BRACKET HOUSING WITH LEADS — MODEL 26 METERING 3-WAY MULTI-PURPOSE GROMMET/BRACKET HOUSING WITH LEADS

Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM

P1−P2

PSI

Specific gravity

Flow

GPM

Calculate Cv

Flow

GPM

P1−P2

PSI

Specific gravity

Calculate P1−P2

Specific gravity

Flow

GPM

P1−P2

PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM

PSIA

Specific gravity

Temp (460° + °F)

°R

Flow

CFM

Calculate Cv

Flow

CFM

PSIA

Specific gravity

Temp (460° + °F)

°R

Calculate P1 (approx.)

Flow

CFM

PSIA

Specific gravity

Temp (460° + °F)

°R

PSIA

Calculate P2 (approx.)

Flow

CFM

PSIA

Specific gravity

Temp (460° + °F)

°R

PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM

PSIA

Specific gravity

Temp (460° + °F)

°R

Flow

CFM

Calculate Cv

Flow

CFM

PSIA

Specific gravity

Temp (460° + °F)

°R

Calculate P1

Flow

CFM

Specific gravity

Temp (460° + °F)

°R

PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
