Series 50 LW Model LW51


2-Way Normally Open Valve


General purpose valves for pneumatic and hydraulic applications. The versatility of these valves is increased to include the handling of hot air, hot water, refrigerants and many other media, by the use of different seals. Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials.

  • General purpose valve with reduced power consumption.
  • Increased versatility.
  • For pneumatic and hydraulic application.
  • Increased to handle hot air, water and refrigerants.
  • High quality engineering.
Valve specifications — Series 50 LW Model LW51
MAX. OPER. PRESS. DIFF.ORIFICE SIZECV FACTORVALVE NUMBER
GASLIQUID
ACDCACDC  GROMMET 1/8" NPTCONDUIT 1/8" NPT
3002003002001/32.020LW51G8XGMLW51G8XCM
270120120653/64.048LW51H8XGMLW51H8XCM
1355040301/16.075LW51J8XGMLW51J8XCM
703530205/64.134LW51V8XGMLW51V8XCM
553025153/32.156LW51K8XGMLW51K8XCM

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (LW51J8XGML 120/60) repair pack (KLW51JX AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (OLW51JDDGML 120/60)


Operating Conditions

Media
Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Burst Pressure
5000 PSI
Leakage
Bubble tight for standard valves.
Vacuum
To 5 Microns*

Electrical Characteristics

Coil Voltage
12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
Nominal Power
AC — 2.5 Watts DC — 2.5 Watts
Coil Construction
Non-molded Class A, Molded and potted Class F. (Class H optional)
Typical Response Time on Air
4 - 16 Milliseconds
Operating Speed
Up to 600 CPM
Duty Cycle
Continuous

Mechanical Characteristics

Body
Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.)
Internal Components
Stainless Steel. Copper – AC Only.
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter
See table above.
Porting
1/8" NPT (Std.)
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Valve Weight
Grommet Valve: 0.38 lbs, Conduit Valve: 0.44 lbs
Repair Packs
See table above.
Options
Alternate Port Locations, Metering and Alternate Elastomers*

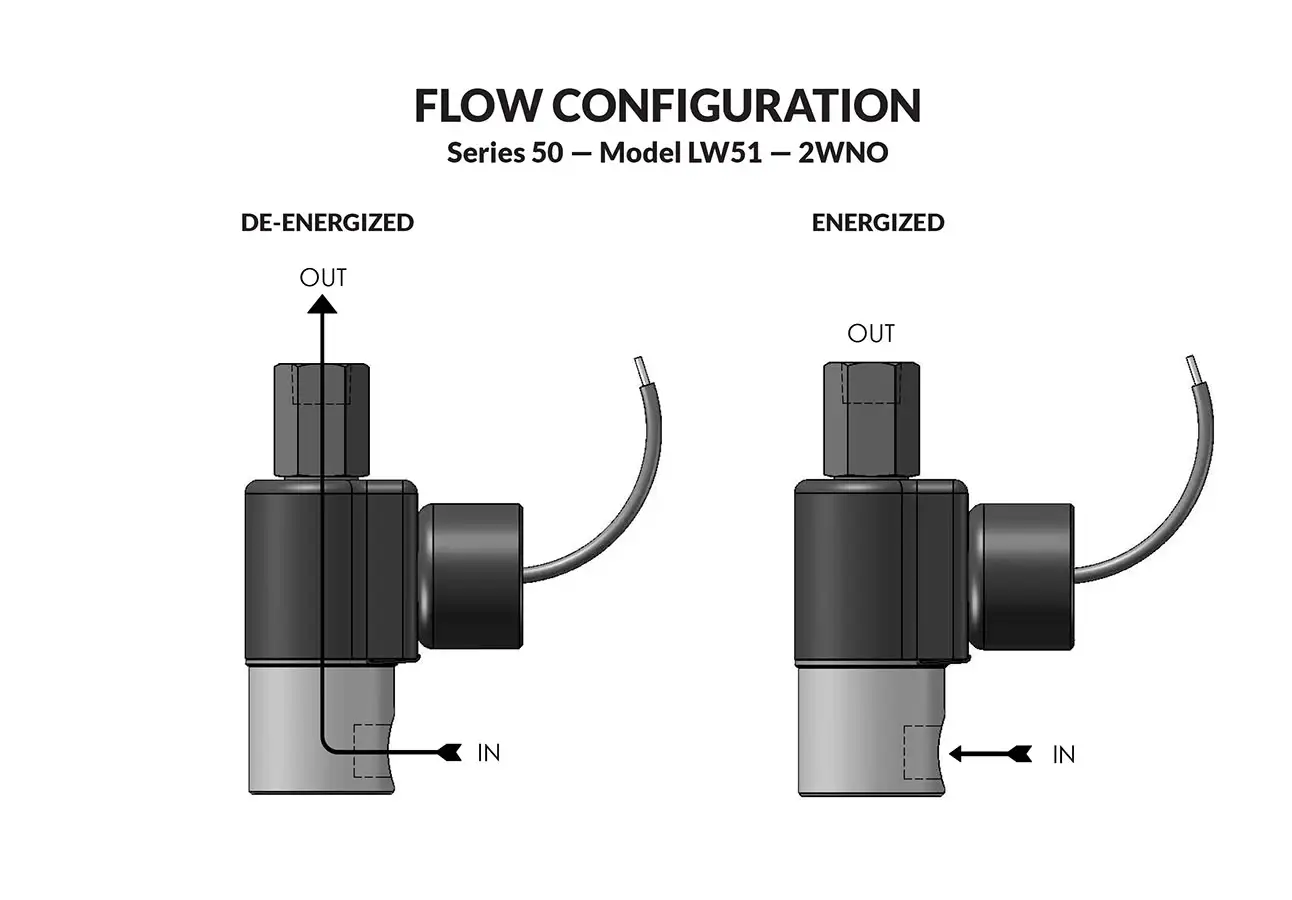

Series 50LW Model LW51 Conduit Connection

Model LW51 2WNO Conduit Connection
2WNO CONDUIT CONNECTION

Series 50LW Model LW51 Grommet Connection

Model LW51 2WNO Grommet with Leads
2WNO GROMMET WITH LEADS
Model LW51 2WNO Grommet with Leads Body Option O
2WNO GROMMET WITH LEADS

Series 50LW Model LW51 Yoke Leads

Model LW51 2WNO Yoke with Leads
2WNO YOKE WITH LEADS
Model LW51 2WNO Yoke with Leads Body Option O
2WNO YOKE WITH LEADS

Series 50LW Model LW51 Yoke Spades

Model LW51 2WNO Yoke with Spade Terminals
2WNO YOKE WITH SPADE TERMINALS
Model LW51 2WNO Yoke with Spade Terminals Body Option O
2WNO YOKE WITH SPADE TERMINALS
Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
