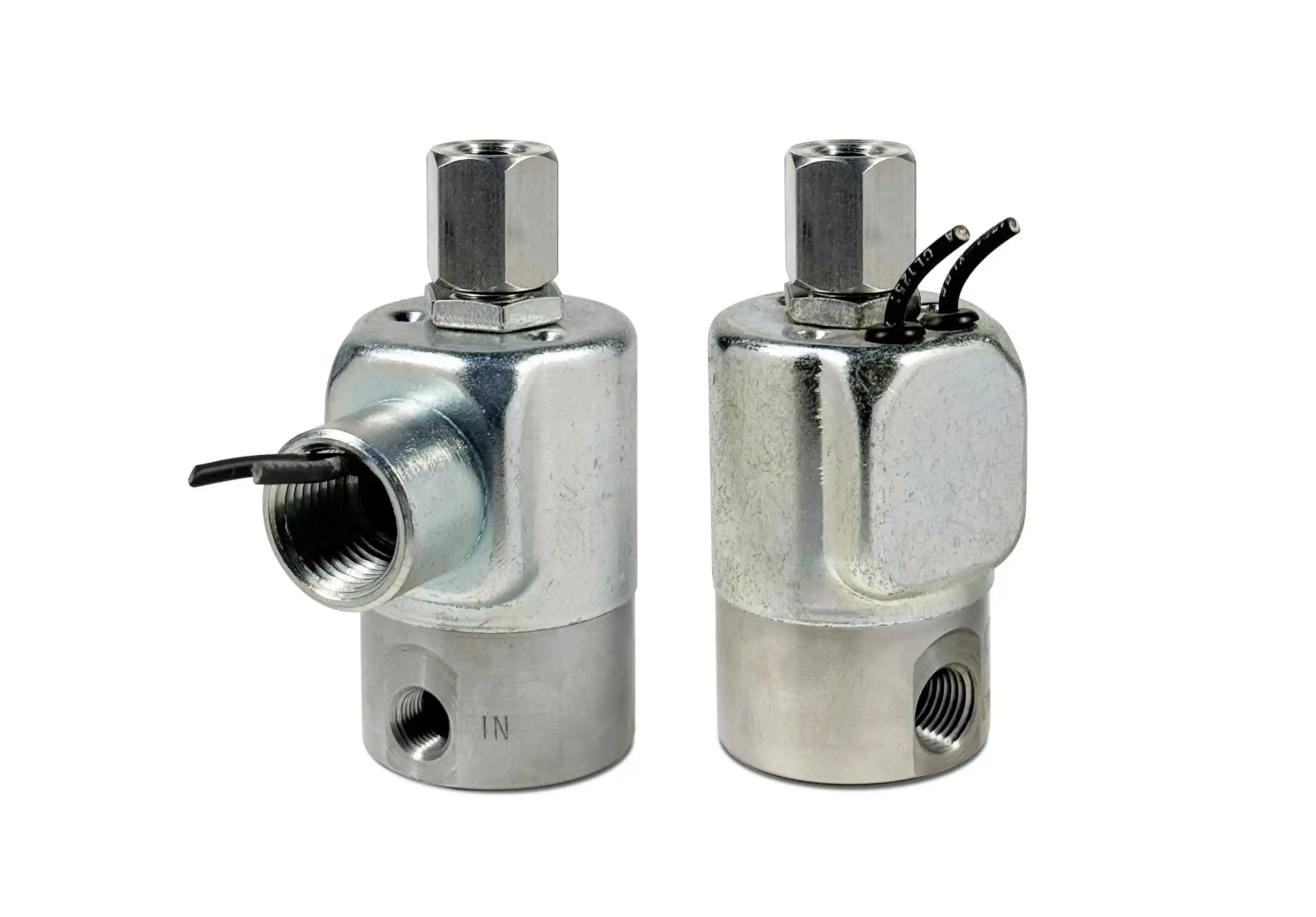

Series 20 Model H21

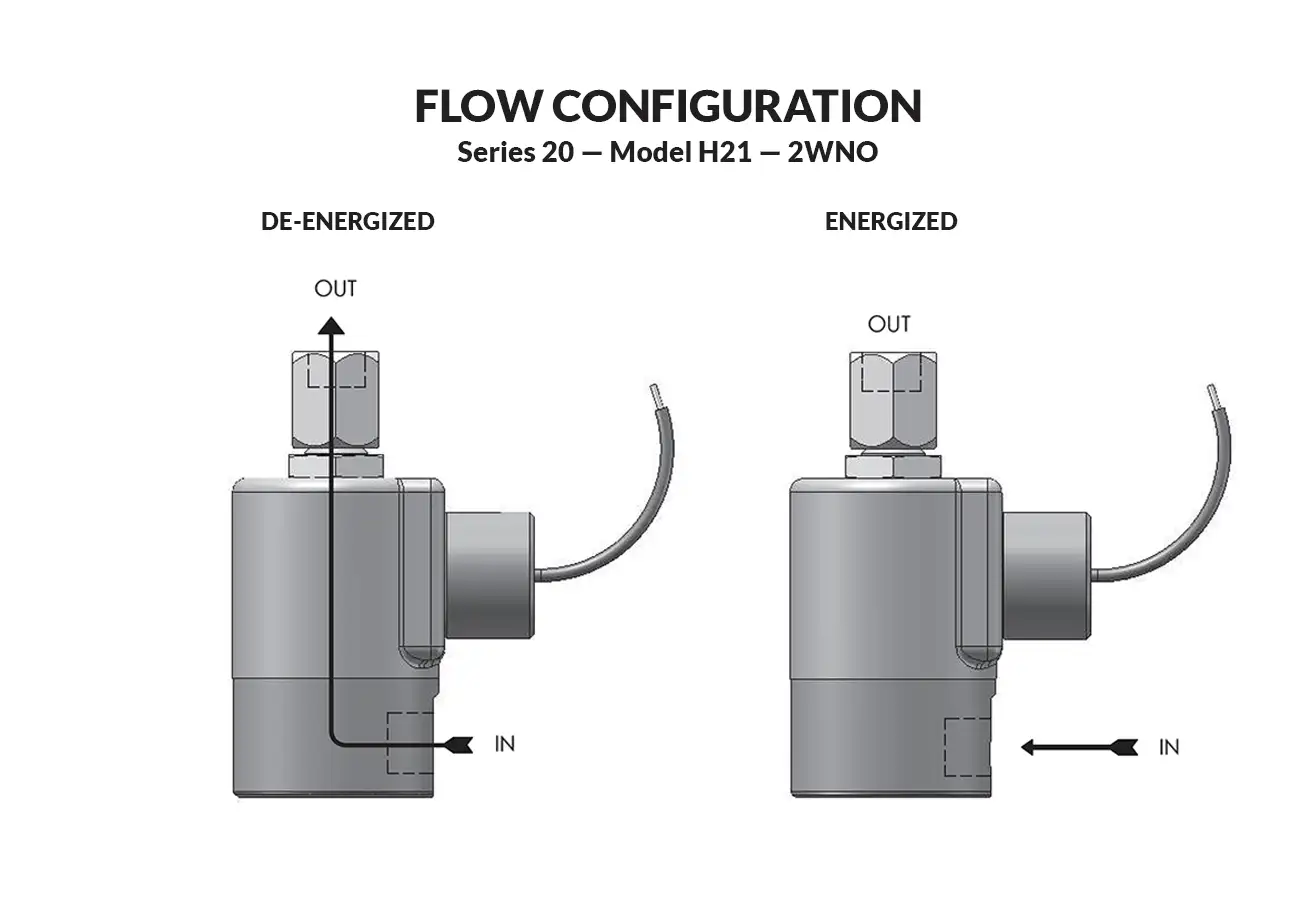

2-Way Normally Open Valve


This valve uses a pin style seal. The pin is guided into the orifice. For use on air and other non-corrosive gases, water and oil.

  • Kel-F pin sealing element.
  • Orifice guides the sealing pin for perfect alignment.
  • Simple construction...only three moving parts.
Valve specifications — Series 20 Model H21
MAX. OPER. PRESS. DIFF.ORIFICE SIZE
CV FACTOR
VALVE NUMBER
GROMMET HOUSINGCONDUIT HOUSING
DC  1/8" NPT PORTS1/4" NPT PORTS1/8" NPT PORTS1/4" NPT PORTS
2000*.6mm.010H21M7XGMH21M9ZGMH21M7XCMH21M9ZCM

* FKM seals not recommended for pressure above 500 psi.

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (H21M7XGV 120/60) repair pack (KH21MX AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (OH21MDDGV 120/60)


Operating Conditions

Media
Air and other non-corrosive gasses, water and oil.
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Burst Pressure
10,000 PSI
Leakage
Bubble tight

Electrical Characteristics

Coil Voltage
12, 24/DC
Nominal Power
DC — 9.5 Watts
Coil Construction
Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)
Typical Response Time on Air
4 - 16 Milliseconds
Operating Speed
Up to 600 CPM with gas media
Duty Cycle
Continuous

Mechanical Characteristics

Body
Stainless Steel
Internal Components
Stainless Steel
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Sealing Pin
Kel-F (Std.), Delrin®, PEEK
Orifice Diameter
See table above.
Porting
1/8" NPT and 1/4" NPT (other ports available).
Housing
Grommet and 1/2" NPT conduit
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Valve Weight
1.19 lbs
Repair Packs
See table above.
Options
Alternate Elastomers, Alternate Sealing Pin Materials, Spade Terminal Coil, and European Style DIN*

Series 20 High Pressure Valves Conduit Connection

Technical drawing — 2WNO HIGH PRESSURE 1/4 NPT CONDUIT CONNECTION
2WNO HIGH PRESSURE 1/4 NPT CONDUIT CONNECTION
Technical drawing — 2WNO HIGH PRESSURE 1/8 NPT CONDUIT CONNECTION
2WNO HIGH PRESSURE 1/8 NPT CONDUIT CONNECTION


Series 20 High Pressure Valves DIN Connection

Technical drawing — 2WNO HIGH PRESSURE 1/4 NPT DIN STYLE COIL
2WNO HIGH PRESSURE 1/4 NPT DIN STYLE COIL
Technical drawing — 2WNO HIGH PRESSURE 1/8 NPT DIN STYLE COIL
2WNO HIGH PRESSURE 1/8 NPT DIN STYLE COIL


Series 20 High Pressure Valves Grommet Connection

Technical drawing — 2WNO HIGH PRESSURE 1/4 NPT GROMMET STYLE COIL
2WNO HIGH PRESSURE 1/4 NPT GROMMET STYLE COIL
Technical drawing — 2WNO HIGH PRESSURE 1/8 NPT GROMMET STYLE COIL
2WNO HIGH PRESSURE 1/8 NPT GROMMET STYLE COIL


Series 20 High Pressure Valves Yoke Leads

Technical drawing — HIGH PRESSURE 1/4 NPT YOKE & LEADS COIL
HIGH PRESSURE 1/4 NPT YOKE & LEADS COIL
Technical drawing — 2WNO HIGH PRESSURE 1/8 NPT YOKE & LEADS COIL
2WNO HIGH PRESSURE 1/8 NPT YOKE & LEADS COIL


Series 20 High Pressure Valves Yoke Spades

Technical drawing — 2WNO HIGH PRESSURE 1/4 NPT YOKE & SPADES COIL
2WNO HIGH PRESSURE 1/4 NPT YOKE & SPADES COIL
Technical drawing — 2WNO HIGH PRESSURE 1/8 NPT YOKE & SPADES COIL
2WNO HIGH PRESSURE 1/8 NPT YOKE & SPADES COIL

Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
