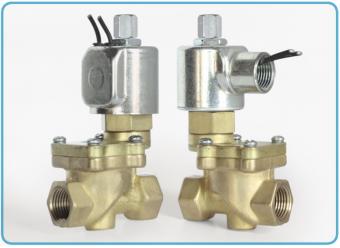

Series 80 Model 818


2-Way Normally Open Valve


2-Way Normally Open Valve PeterPaul offers a line of large orifice solenoid valves to address process industry requirements for high flow rate or quick dump and fill capacity. These AC or DC powered valves are also suited for low pressure gas and liquid applications. Port sizes for the two way normally open version range are 1/2” NPT or 1” NPT with pressure ratings from 3 to 100 PSI.

  • Large orifice sizes for high flow applications.
  • Body is made of brass and stainless steel.
  • Operate on differential pressure — Internal Pilot.
  • NPT threaded connections.
  • Same coils and housings as our popular 20 Series.
Valve specifications — Series 80 Model 818
MAX. OPER. PRESS. DIFF.MIN. OPER. PRESS. DIFF.ORIFICE SIZECV FACTORVALVE NUMBER GROMMET HOUSINGCONDUIT HOUSING
ACDCN.O.
10010031/24.0818B12DGM818B12DCM
1001003113.0818D23DGM818D23DCM

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (818B12DCM 120/60) repair pack (K818BDD AC)

No operator available


Operating Conditions

Media
Air, water, and oil. (Series 80 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
100 PSI
Burst Pressure
3 PSI
Leakage
Bubble tight

Electrical Characteristics

Coil Voltage
12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
Nominal Power
AC — 7.7 Watts, DC — 9.5 Watts
Coil Construction
Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)
Operating Speed
Up to 100 CPM
Duty Cycle
Continuous

Mechanical Characteristics

Body
Brass (Std.) — Stainless Steel (Opt.)
Internal Components
Stainless Steel. Copper – AC Only.
Elastomers
Nitrile (Buna) (Std.).
Orifice Diameter
See table above.
Housing
Grommet and 1/2″ NPT conduit
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Repair Packs
See table above.
Options
Spade Terminal Coil and DIN

Series 80 Internal Pilot Valves Conduit

Technical drawing — SERIES 80 MODEL 818 2WNO CONDUIT 1/2" NPT PORTS
SERIES 80 MODEL 818 2WNO CONDUIT 1/2" NPT PORTS
Technical drawing — SERIES 80 MODEL 818 2WNO CONDUIT 1" NPT PORTS
SERIES 80 MODEL 818 2WNO CONDUIT 1" NPT PORTS


Series 80 Internal Pilot Valves DIN

Technical drawing — SERIES 80 MODEL 818 DIN 2WNO PILOT LIFT 1/2" NPT PORTS
SERIES 80 MODEL 818 DIN 2WNO PILOT LIFT 1/2" NPT PORTS
Technical drawing — SERIES 80 MODEL 818 DIN 2WNO PILOT LIFT 1" NPT PORTS
SERIES 80 MODEL 818 DIN 2WNO PILOT LIFT 1" NPT PORTS


Series 80 Internal Pilot Valves Grommet

Technical drawing — SERIES 80 MODEL 818 2WNO GROMMET WITH LEADS 1/2" NPT PORTS
SERIES 80 MODEL 818 2WNO GROMMET WITH LEADS 1/2" NPT PORTS
Technical drawing — SERIES 80 MODEL 818 2WNO GROMMET 1" NPT PORTS
SERIES 80 MODEL 818 2WNO GROMMET 1" NPT PORTS


Series 80 Internal Pilot Valves Yoke Leads

Technical drawing — SERIES 80 MODEL 818 2WNO YOKE-LEADS 1/2" NPT PORTS
SERIES 80 MODEL 818 2WNO YOKE-LEADS 1/2" NPT PORTS
Technical drawing — SERIES 80 MODEL 818 2WNO YOKE-LEADS 1" NPT PORTS
SERIES 80 MODEL 818 2WNO YOKE-LEADS 1" NPT PORTS

Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
