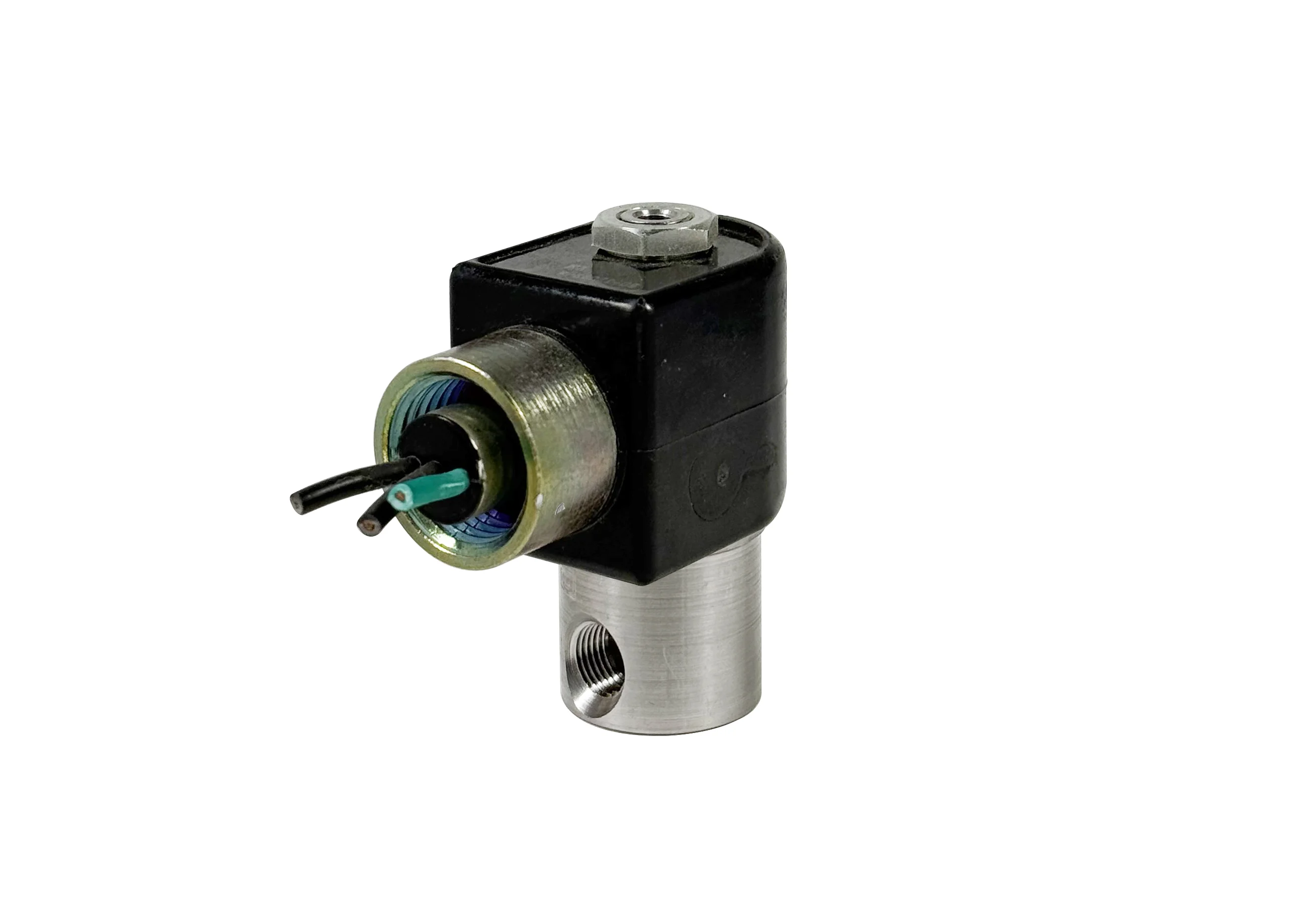

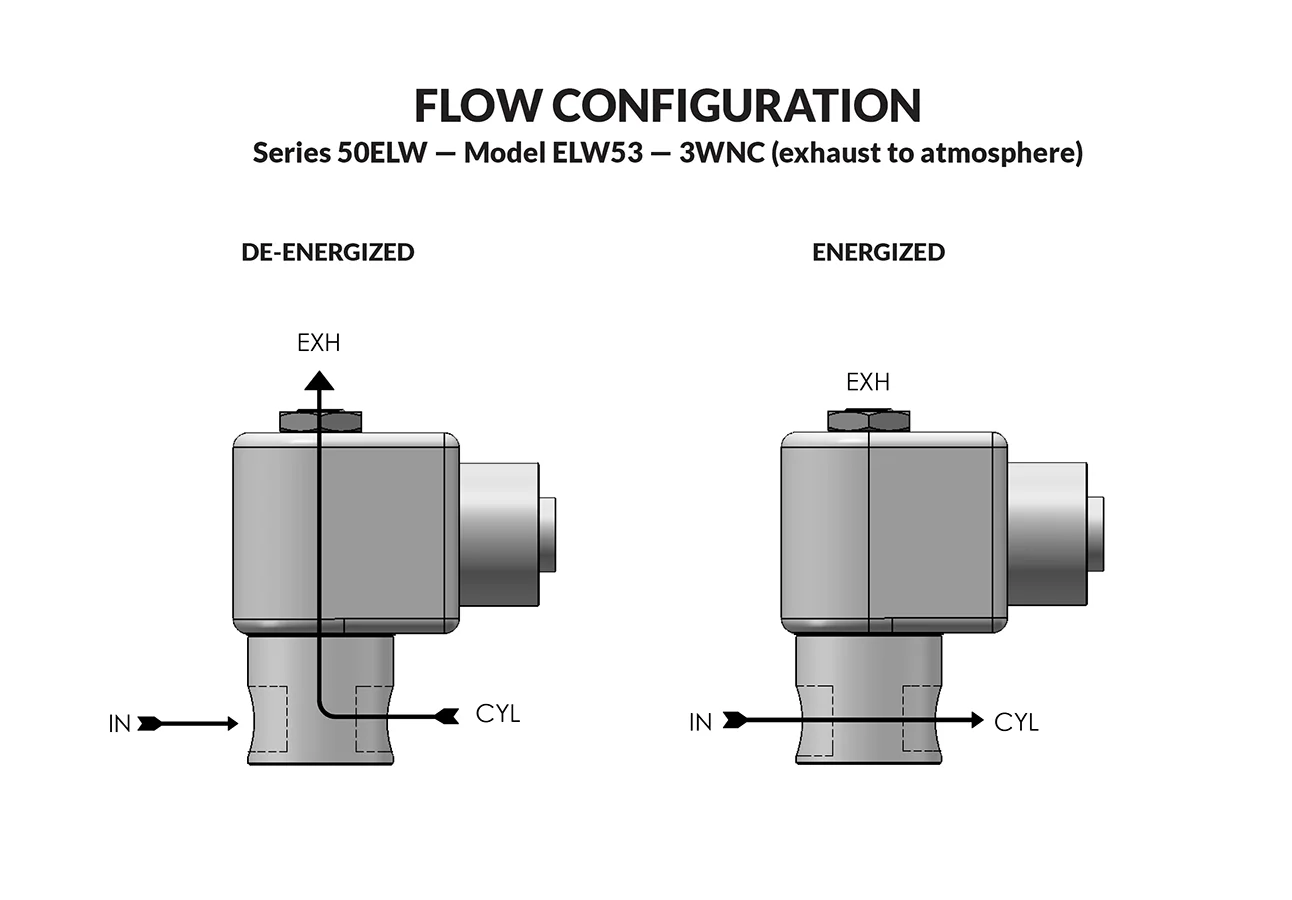

3-Way Normally Closed Valve (Exhaust to Atmosphere)
A UL and CSA listed, low watt, miniature hazardous location valve with minimal space and energy requirements in volatile environments. Air and other fluids are compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require special seal materials.
- Smallest hazardous location solenoid valve.
- Best ambient and high temperature ratings on the market.
- NEMA 4 rating is standard with encapsulated coil.
- High quality engineering.
| MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | ||||||
|---|---|---|---|---|---|---|---|---|
| GAS | LIQUID | |||||||
| AC | DC | AC | DC | N.C. | N.O. | N.C. | N.O. | VALVE NUMBER |
| 215 | 135 | 215 | 135 | 1/32 | 1/32 | .022 | .020 | ELW53GG8DCCP |
| 215 | 120 | 120 | 65 | 1/32 | 3/64 | .022 | .048 | ELW53GH8DCCP |
| 135 | 50 | 40 | 30 | 1/32 | 1/16 | .022 | .075 | ELW53GJ8DCCP |
| 70 | 35 | 30 | 20 | 1/32 | 1/16 | .022 | .134 | ELW53GV8DCCP |
| 55 | 30 | 25 | 15 | 1/32 | 3/32 | .022 | .150 | ELW53GK8DCCP |
| 120 | 70 | 120 | 65 | 3/64 | 3/64 | .055 | .048 | ELW53HH8DCCP |
| 120 | 50 | 40 | 30 | 3/64 | 1/16 | .055 | .075 | ELW53HJ8DCCP |
| 70 | 35 | 30 | 20 | 3/64 | 1/16 | .055 | .134 | ELW53HV8DCCP |
| 55 | 30 | 25 | 15 | 3/64 | 3/32 | .055 | .150 | ELW53HK8DCCP |
| 85 | 40 | 40 | 30 | 1/16 | 1/16 | .075 | .075 | ELW53JJ8DCCP |
| 70 | 35 | 30 | 20 | 1/16 | 1/16 | .075 | .134 | ELW53JV8DCCP |
| 55 | 30 | 25 | 15 | 1/16 | 3/32 | .075 | .150 | ELW53JK8DCCP |
| 50 | 30 | 30 | 20 | 5/64 | 1/16 | .134 | .134 | ELW53VV8DCCP |
| 50 | 30 | 25 | 15 | 5/64 | 3/32 | .134 | .150 | ELW53VK8DCCP |
| 35 | 20 | 25 | 15 | 5/64 | 3/32 | .156 | .150 | ELW53KK8DCCP |
Ordering Information:
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (ELW53JJ8DCCPL 120/60) repair pack (KELW53JJDL AC)
When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (OELW53JJDDCCPL 120/60)
Operating Conditions
- Media
- Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 140°F (60°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 5000 PSI
- Leakage
- Bubble tight for standard valves.
- Vacuum
- To 5 Microns*
Electrical Characteristics
- Coil Voltage
- 12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
- Nominal Power
- AC — 1.8 Watts DC — 1.8 Watts
- Coil Construction
- Encapsulated Class F Coil with third wire ground
- Typical Response Time on Air
- 4 - 16 Milliseconds
- Operating Speed
- Up to 600 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Body
- Stainless Steel (Std.)
- Internal Components
- Stainless Steel. Copper – AC Only.
- Elastomers
- Nitrile (Buna) (Std.). Many other elastomers available.*
- Orifice Diameter
- See table above.
- Porting
- 1/8" NPT (Std.)
- Housing
- Encapsulated with 1/2 NPT conduit
- Listings
- Valves are UL listed for Hazardous Locations — Class I, Div 1, Groups A, B, C, and D – Class II, Div 1, Groups E, F, and G; Div 2, Groups A, B, C, D, E, F, and G. “T” Rating as low as T5.
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- 0.60 lbs
- Repair Packs
- See table above.
- Options
- Alternate Port Locations, Metering, Alternate Elastomers and All Stainless Steel Construction*
Series 50 ELW Encapsulated Low Watt Valves
Cv Flow Formulae
PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.
The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.
Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.
Liquid Flow
Gas Flow P2 > 53% of P1 (subsonic)
Gas Flow P2 < 53% of P1 (sonic)
DISCLAIMER: Gas flow is only an approximation using Cv.
