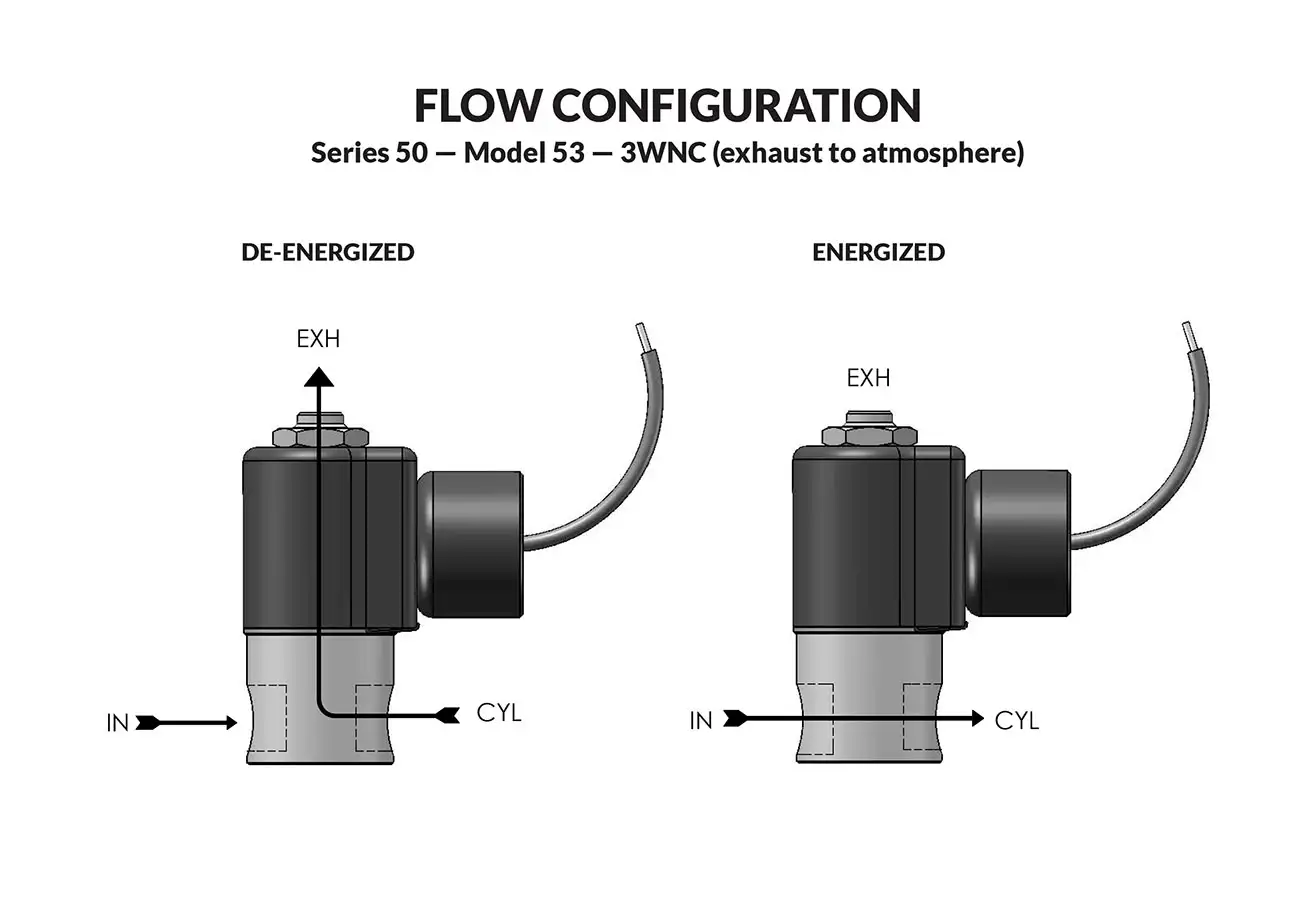

3-Way Normally Closed Valve (Exhaust to Atmosphere)
Our original mini — engineered for space economy without sacrificing performance. Typical applications include medical, analytical instrumentation. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.
- Tough with options to use in hazardous location environments or low watt applications.
- High quality engineering.
| MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | VALVE NUMBER GROMMET HOUSING | CONDUIT HOUSING | |||
|---|---|---|---|---|---|---|---|
| AC | DC | INLET | EXH | INLET | EXH | 1/8 NPT PORTS | 1/8 NPT PORTS |
| 200 | 200 | 1/32 | 1/32 | .022 | .020 | 53GG8DGM | 53GG8DCM |
| 150 | 150 | 3/64 | 3/64 | .055 | .048 | 53HH8DGM | 53HH8DCM |
| 150 | 150 | 3/64 | 1/16 | .055 | .075 | 53HJ8DGM | 53HJ8DCM |
| 100 | 100 | 1/16 | 1/16 | .075 | .075 | 53JJ8DGM | 53JJ8DCM |
| 60 | 60 | 3/32 | 1/16 | .156 | .075 | 53KJ8DGM | 53KJ8DCM |
| 50 | 50 | 3/32 | 3/32 | .156 | .150 | 53KK8DGM | 53KK8DCM |
| 30 | 30 | 1/8 | 1/16 | .230 | .075 | 53NJ8DGM | 53NJ8DCM |
| 30 | 30 | 1/8 | 3/32 | .230 | .150 | 53NK8DGM | 53NK8DCM |
Ordering Information:
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (53JJ8DGM 120/60) repair pack (K53JJD AC)
When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O53JJDDGM 120/60)
Operating Conditions
- Media
- Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 5000 PSI
- Leakage
- Bubble tight for standard valves.
- Vacuum
- To 5 Microns*
Electrical Characteristics
- Coil Voltage
- 12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
- Nominal Power
- AC — 6.0 Watts, DC — 7.0 Watts
- Coil Construction
- Molded and potted Class F. (Class H optional)
- Typical Response Time on Air
- 4 - 16 Milliseconds
- Operating Speed
- Up to 600 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Body
- Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.)
- Internal Components
- Stainless Steel. Copper – AC Only.
- Elastomers
- Nitrile (Buna) (Std.). Many other elastomers available.*
- Orifice Diameter
- See table above.
- Porting
- Standard 1/8" NPT (other ports available).*
- Housing
- Grommet and 1/2" NPT conduit - many options available.*
- Listings
- Most valves are UL and CSA listed.*
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- Grommet Valve: 0.38 lb Conduit Valve: 0.44 lb
- Repair Packs
- See table above.
- Options
- Alternate Port Locations, Metering, Alternate Elastomers, Low Wattage, Spade Terminal Coil and Explosion Proof
SERIES 50 STACKING BODIES COMMON OUTLET GROMMET WITH LEADS EXHAUST TO ATMOSPHERE
SERIES 50 STACKING BODIES COMMON OUTLET SPADE COIL WITH YOKE EXHAUST TO ATMOSPHERE
Series 50 General Purpose Valves Conduit
Series 50 General Purpose Valves Grommet
Series 50 General Purpose Valves Yoke Leads
Series 50 General Purpose Valves Yoke Spades
SERIES 50 STACKING BODIES COMMON OUTLET CONDUIT CONNECTION EXHAUST TO ATMOSPHERE
Cv Flow Formulae
PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.
The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.
Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.
Liquid Flow
Gas Flow P2 > 53% of P1 (subsonic)
Gas Flow P2 < 53% of P1 (sonic)
DISCLAIMER: Gas flow is only an approximation using Cv.
