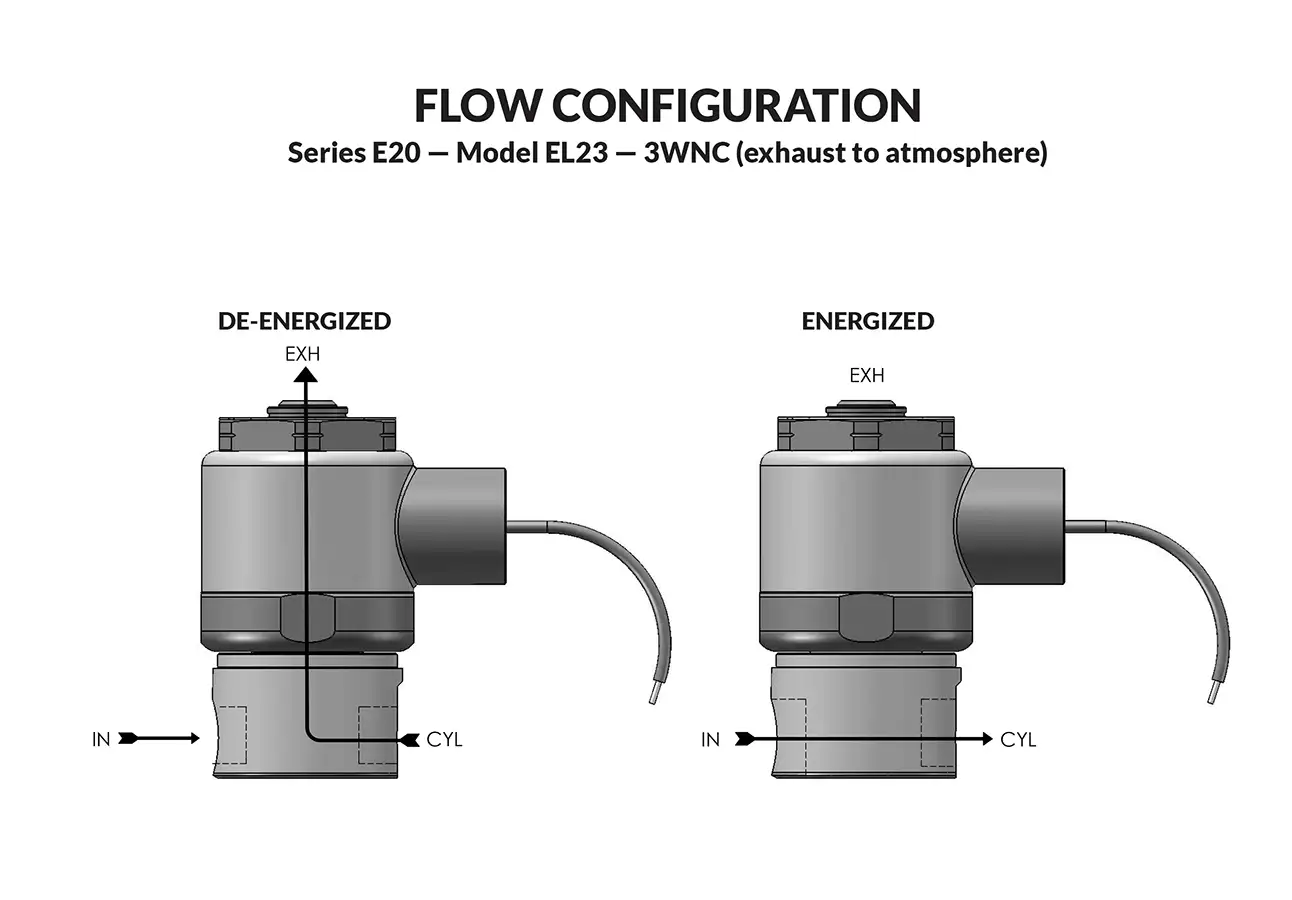

3-Way Normally Closed Valve (Exhaust to Atmosphere)

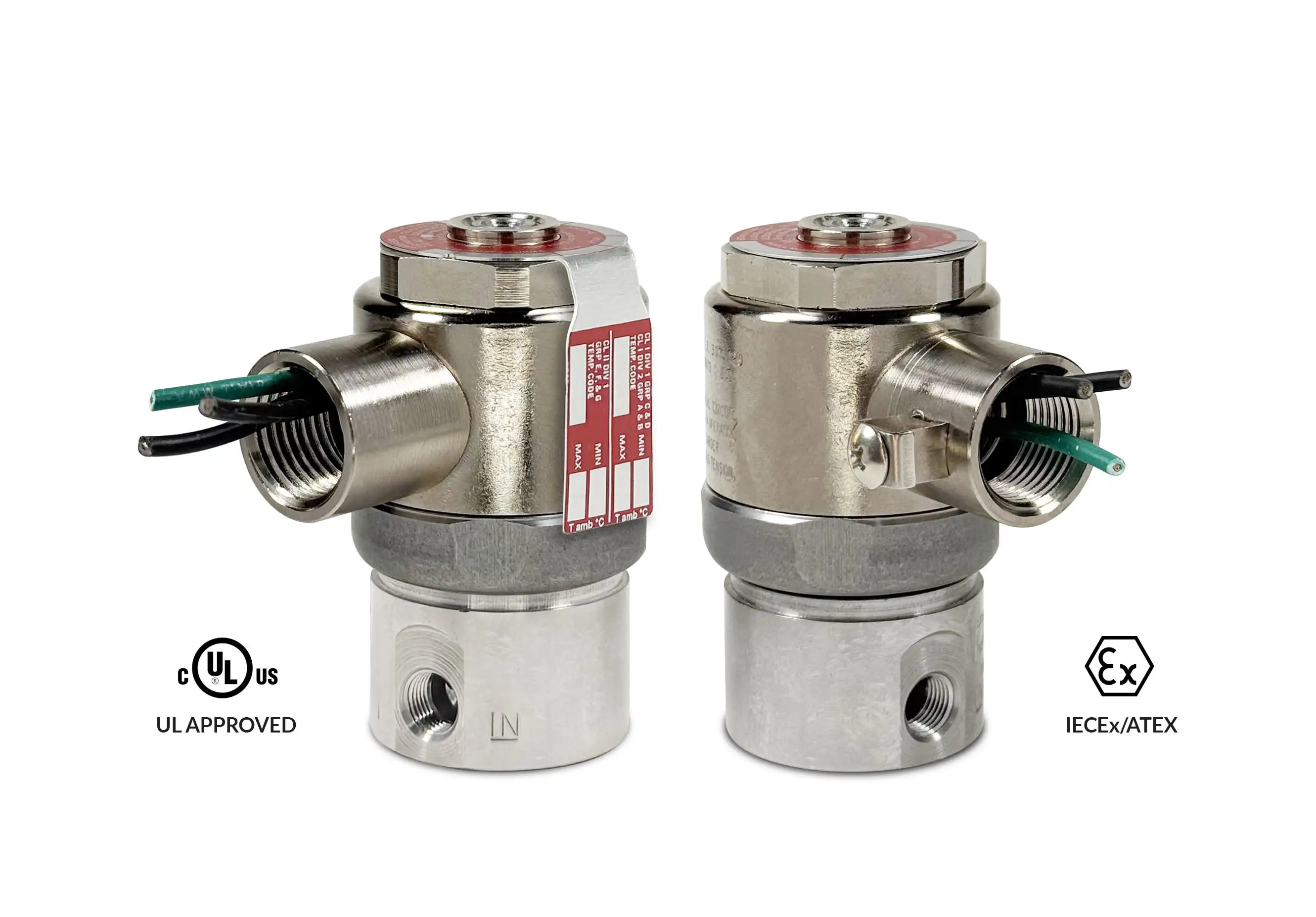

PeterPaul explosion-proof solenoid valves are used where fire or explosion hazards exist due to the presence of flammable gas or vapors, flammable liquids, combustible dust, or easily ignitable fibers. The low-watt feature assures low power consumption, reducing drain on electrical systems. This is a benefit for renewable energy applications and where the solenoid valve must be on continuously.
- Heavy-duty and made of stainless steel.
- A real workhorse with proven performance.
- Low power consumption — best for renewable energy and limited-resource applications.
- Wide range of orifice sizes, from 1/32″ to 1/8″.
| MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | VALVE NUMBER | IECEx/ATEX VALVE NUMBER | ||||
|---|---|---|---|---|---|---|---|---|
| DC | INLET | EXH | INLET | EXH | 1/8 NPT PORTS | 1/4 NPT PORTS | 1/8 NPT PORTS | 1/4 NPT PORTS |
| *375 | 1/32 | 1/32 | .024 | .024 | EL23GG7DCCP-∆ | EL23GG9DCCP-∆ | ELA23GG7DCCP-∆ | ELA23GG9DCCP-∆ |
| 150 | 3/64 | 3/64 | .052 | .052 | EL23HH7DCCP-∆ | EL23HH9DCCP-∆ | ELA23HH7DCCP-∆ | ELA23HH9DCCP-∆ |
| 150 | 3/64 | 1/16 | .052 | .095 | EL23HJ7DCCP-∆ | EL23HJ9DCCP-∆ | ELA23HJ7DCCP-∆ | ELA23HJ9DCCP-∆ |
| 100 | 1/16 | 1/16 | .095 | .095 | EL23JJ7DCCP-∆ | EL23JJ9DCCP-∆ | ELA23JJ7DCCP-∆ | ELA23JJ9DCCP-∆ |
| 100 | 1/16 | 3/32 | .095 | .156 | EL23JK7DCCP-∆ | EL23JK9DCCP-∆ | ELA23JK7DCCP-∆ | ELA23JK9DCCP-∆ |
| 50 | 3/32 | 3/32 | .284 | .156 | EL23KK7DCCP-∆ | EL23KK9DCCP-∆ | ELA23KK7DCCP-∆ | ELA23KK9DCCP-∆ |
| 35 | 1/8 | 3/32 | .284 | .156 | EL23NK7DCCP-∆ | EL23NK9DCCP-∆ | ELA23NK7DCCP-∆ | ELA23NK9DCCP-∆ |
| 20 | 1/8 | 1/8 | .284 | .201 | EL23NN7DCCP-∆ | EL23NN9DCCP-∆ | ELA23NN7DCCP-∆ | ELA23NN9DCCP-∆ |
Ordering Information:
* Rating may vary based on an elastomer choice.
Seal Material: Replace ∆ with desired code - Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (EL23NN9DCCP-N 24/DC) repair pack (2KEL23KKD-N DC)
When ordering operators add the letter “O” to the front of the valve number, and the body code will change. Contact the factory for the complete part number.
Operating Conditions
- Media
- Air, water, and other fluids are compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require other seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
- Valve Temperature Range
- -22°F(-30°C) to 140°F (60°C) Exception: FKM is -4°F (-20°C) to 140°F (60°C).
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 5,000 PSI
- Leakage
- Bubble tight for standard valves.
- Vacuum
- To 5 Microns*
Electrical Characteristics
- Coil Voltage
- 12, 24/DC
- Nominal Power
- 1.8 Watts
- Coil Construction
- Potted Class F coil with 36” black lead wires and 36” green ground wire.
- Typical Response Time on Air
- 4 – 16 Milliseconds
- Operating Speed
- Up to 600 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Body
- Stainless Steel (Std.)
- Internal Components
- Stainless Steel
- Elastomers
- Buna, Fluorocarbon (FKM), Low Temperature Buna, EPDM or Neoprene.
- Orifice Diameter
- See table above.
- Porting
- 1/8” OR 1/4” NPT
- Housing
- Flame-Proof construction with 1/2" NPT conduit
- Listings
- North American Valves are cULus listed for Hazardous Locations. — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G; Div 2 Groups A, B, C, D, E, F, and G.
- Certification
- IECEx/ATEX – In compliance with IEC 60079-0 & IEC 60079-1, IECEx : Ex db IIB+H2 T4 Gb, ATEX: II 2 G Ex db IIB+H2 T4 Gb
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- 1.38 lbs
- Repair Packs
- See table above.
- Options
- Alternate Port Locations, Metering, Manual Override, Alternate Elastomers*
Series 20 HAZARDOUS LOCATION VALVES
