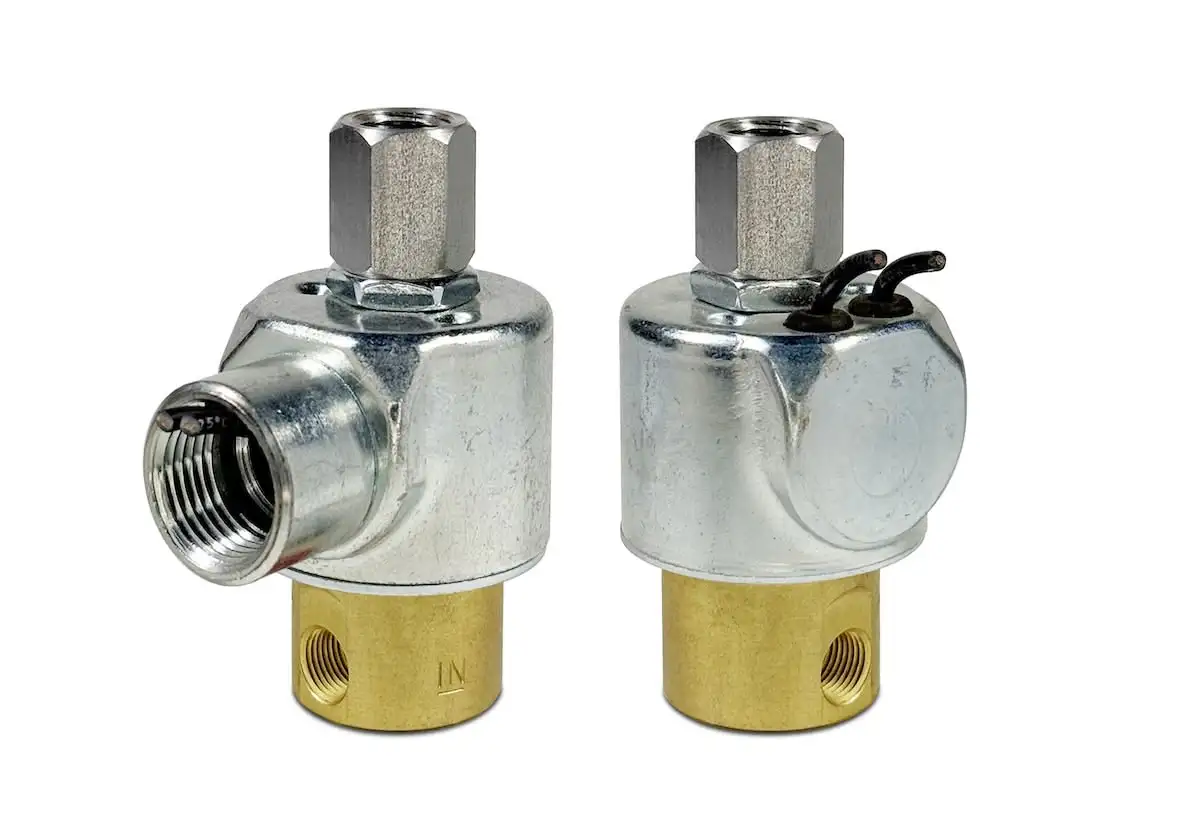

Series 30 Model 35

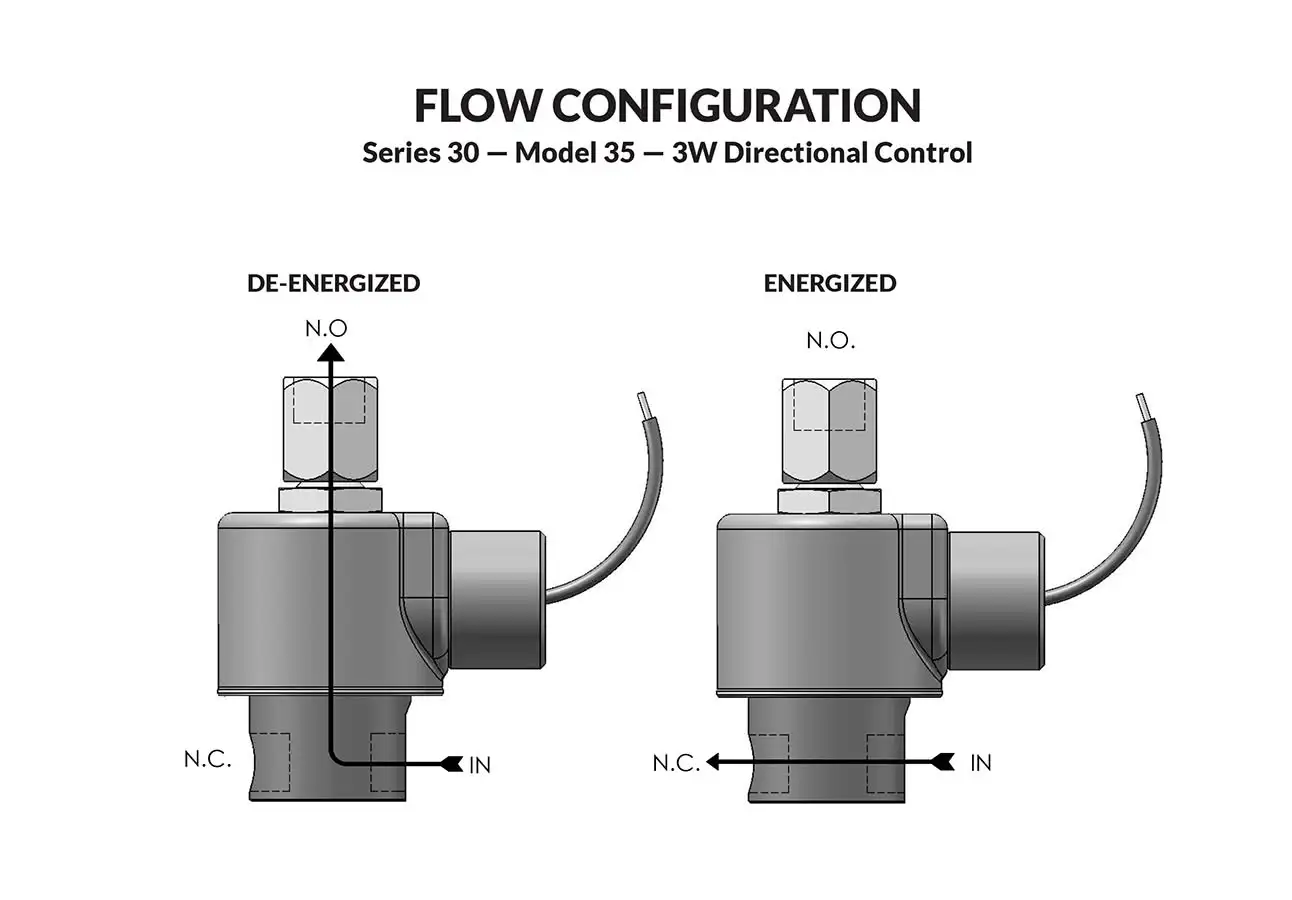

3-Way Directional Control Valve


Complete range of valves particularly suitable when cost and size are major factors. The bodies are constructed of brass (stainless steel is optional). Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

  • Brass body with stainless steel internal construction.
  • A smaller, cost effective alternative to any industry standard.
Valve specifications — Series 30 Model 35
MAX. OPER.
PRESS. DIFF.
ORIFICE SIZECV FACTORVALVE NUMBER
GROMMET HOUSING
CONDUIT HOUSING
ACDCN.C.N.O.N.C.N.O.1/8 NPT PORTS1/8 NPT PORTS
3003001/321/32.024.02435GG5XGM35GG5XCM
1751753/641/16.052.09535HJ5XGM35HJ5XCM
1251251/161/16.095.09535JJ5XGM35JJ5XCM
75753/323/32.160.16035KK5XGM35KK5XCM
50501/83/32.275.16035NK5XGM35NK5XCM

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (35HJ5XGM 120/60) repair pack (K35HJX AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O35HJ5DGM 120/60)


Operating Conditions

Media
Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 30 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Burst Pressure
5000 PSI
Leakage
Bubble tight for standard valves.
Vacuum
To 5 Microns*

Electrical Characteristics

Coil Voltage
12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
Nominal Power
AC — 8.0 Watts DC — 8.0 Watts
Coil Construction
Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)
Typical Response Time on Air
4 - 16 Milliseconds
Operating Speed
Up to 600 CPM
Duty Cycle
Continuous

Mechanical Characteristics

Body
Brass (Std.) or Stainless Steel (Opt.)
Internal Components
Stainless Steel. Copper – AC Only.
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter
See table above.
Porting
Standard 1/8" NPT (other ports available).*
Housing
Grommet and 1/2″ NPT conduit – many options available.*
Listings
Most valves are UL and CSA listed.*
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Valve Weight
Grommet Valve: 0.75 lb Conduit Valve: 0.81 lb
Repair Packs
See table above.
Options
Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil*

Series 30 General Purpose Valves Conduit

Technical drawing — MODEL 35 3W DIRECTIONAL CONTROL CONDUIT CONNECTION
MODEL 35 3W DIRECTIONAL CONTROL CONDUIT CONNECTION



Series 30 General Purpose Valves DIN

Technical drawing — MODEL 35 1/8-27 NPT 3-WAY DIRECTIONAL CONTROL DIN STYLE COIL
MODEL 35 1/8-27 NPT 3-WAY DIRECTIONAL CONTROL DIN STYLE COIL



Series 30 General Purpose Valves Grommet

Technical drawing — MODEL 35 3W DIRECTIONAL CONTROL GROMMET WITH LEADS
MODEL 35 3W DIRECTIONAL CONTROL GROMMET WITH LEADS



Series 30 General Purpose Valves Grommet/Bracket Connection

Technical drawing — MODEL 35 1/8-27 NPT 3-WAY DIRECTIONAL CONTROL GROMMET/BRACKET WITH LEADS
MODEL 35 1/8-27 NPT 3-WAY DIRECTIONAL CONTROL GROMMET/BRACKET WITH LEADS

Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com


Series 30 General Purpose Valves Conduit/Bracket Connection

Technical drawing — MODEL 35 1/8-27 NPT 3-WAY DIRECTIONAL CONTROL CONDUIT/BRACKET CONNECTION
MODEL 35 1/8-27 NPT 3-WAY DIRECTIONAL CONTROL CONDUIT/BRACKET CONNECTION

Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com

Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
