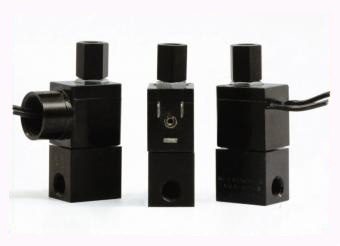

Series 15 Model 155

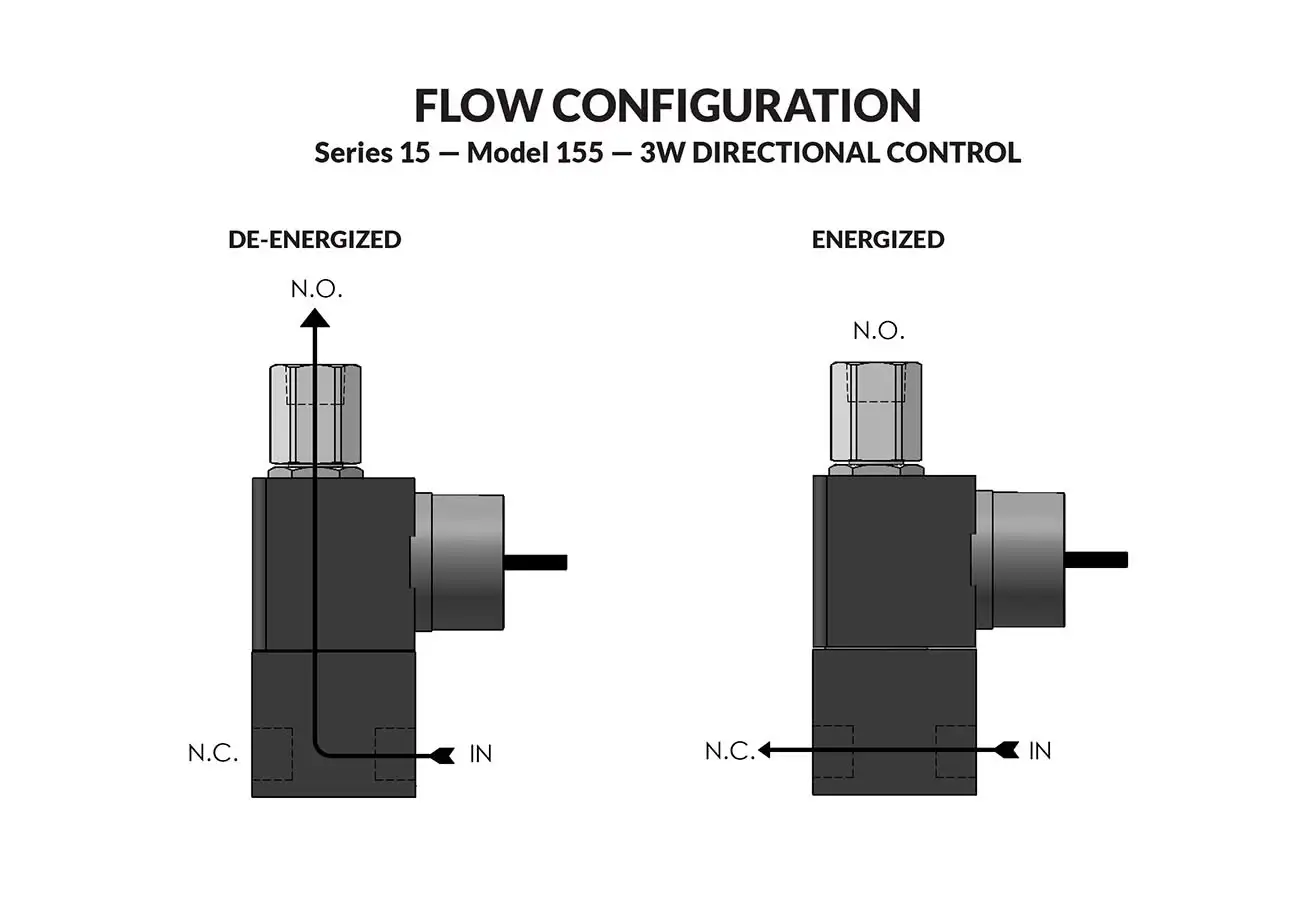

3-Way Directional Control Valve


The little black box — magnetic components encased in epoxy for durability and reliability. Interior parts are stainless steel and anodized aluminum. The valves may be used with air, inert gas and liquid media at pressures from vacuum to 300 psi AC, 200 psi DC — depending upon orifice size and configuration. For those who require extra heat resistance and media compatibility, FKM and other elastomers are available.

  • Small, lightweight and economical.
  • Operating pressures from vacuum to 300 psi AC, 200 psi DC.
  • Quality design and construction.
Valve specifications — Series 15 Model 155
MAX. OPER.
PRESS. DIFF.
ORIFICE SIZECV FACTOR VALVE NUMBER
ACDCN.C.N.O.N.C.N.O. LEAD WIREDIN STYLECONDUIT HOUSING
3002001/321/32.022.020 155GG2XGM155GG2XEM155GG2XCM
2001503/643/64.055.048 155HH2XGM155HH2XEM155HH2XCM
100751/161/16.075.075 155JJ2XGM155JJ2XEM155JJ2XCM
75403/321/16.130.075 155KJ2XGM155KJ2XEM155KJ2XCM
75403/323/32.130.130 155KK2XGM155KK2XEM155KK2XCM

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (155HH2XGM 120/60) repair pack (K155HX AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O155HH2DGM 120/60)


Operating Conditions

Media
Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 15 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Burst Pressure
5000 PSI
Leakage
Bubble tight for standard valves.
Vacuum
To 5 Microns*

Electrical Characteristics

Coil Voltage
12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
Nominal Power
AC — 8.5 Watts, DC — 10.5 Watts
Coil Construction
Molded Class F. (155°C)
Typical Response Time on Air
4 - 16 Milliseconds
Operating Speed
Up to 600 CPM
Duty Cycle
Continuous

Mechanical Characteristics

Body
Anodized Aluminum (Std.)
Internal Components
Stainless Steel. Copper – AC Only.
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter
See table above.
Porting
1/8" NPT (Std.)
Housing
Leadwires, 1/2” NPT Conduit and DIN Style Connector.
Listings
Most valves are UL and CSA listed.*
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Valve Weight
0.27 lb to 0.30 lb depending on model and housing style.
Repair Packs
See table above.
Options
Round Brass or Stainless Steel Body, Stackable Construction, Alternate Elastomers and Magnetic Latching Coil. Female DIN Style Connector Part Number 50-17029.*

Series 15 General Purpose Valves

Technical drawing — 3W DIRECTIONAL CONTROL CONDUIT CONNECTION
3W DIRECTIONAL CONTROL CONDUIT CONNECTION
Technical drawing — 3W DIRECTIONAL CONTROL DIN STYLE
3W DIRECTIONAL CONTROL DIN STYLE
Technical drawing — 3W DIRECTIONAL CONTROL MOLDED LEADS
3W DIRECTIONAL CONTROL MOLDED LEADS
Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
