2-Way Normally Closed Valve

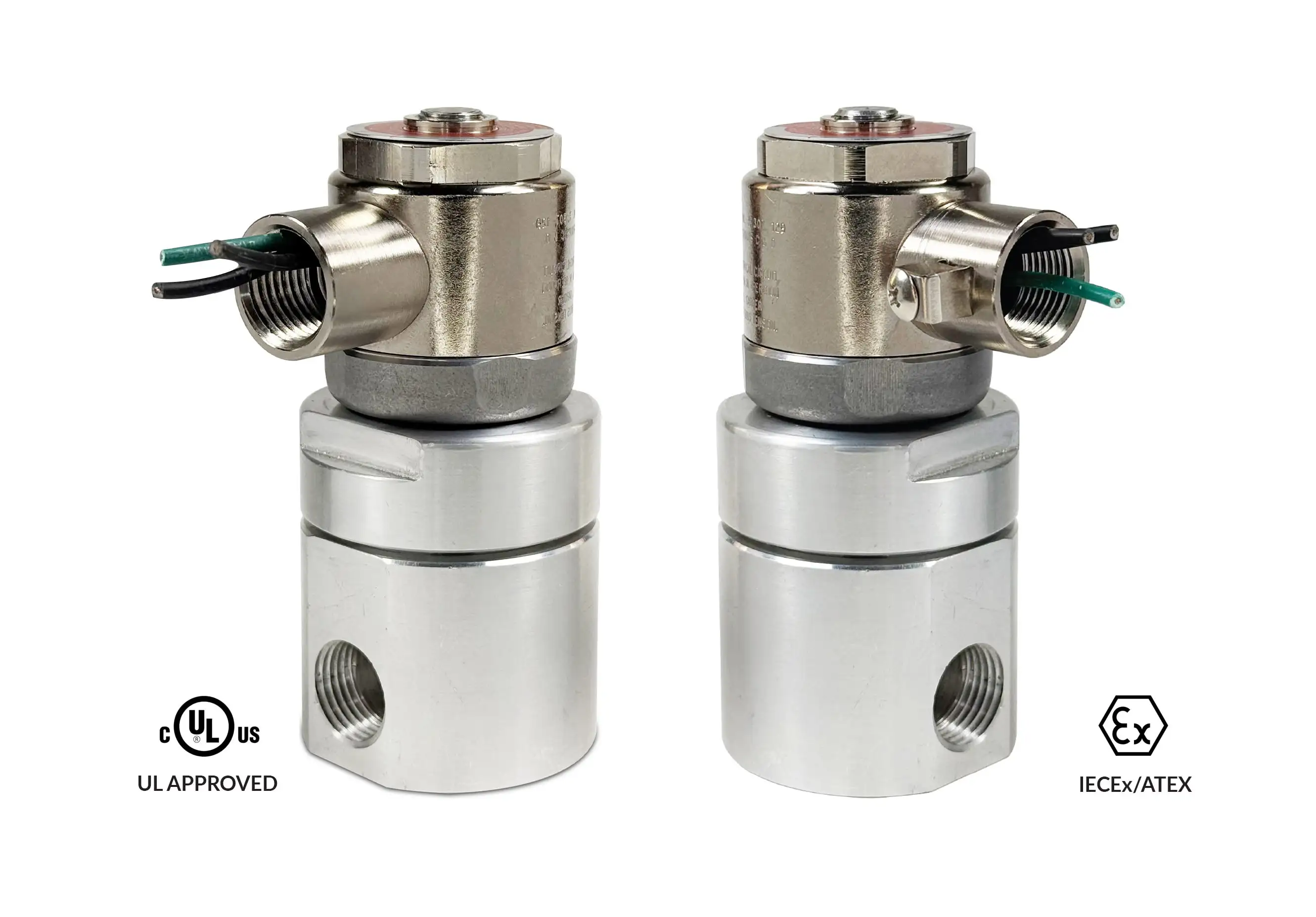

PeterPaul offers a line of Hazardous Location rated, large orifice Automatic Safety Shut Off Valves designed specifically for gas appliances. These valves meet the standards for Commercial/Industrial Safety Shut Off Valves per ANSI Z21.21 / CSA 6.5. They are well suited for use in heating equipment, furnaces, ovens, kilns, boilers, and gas generators.
| MAX. OPER. PRESS. DIFF. | MIN. OPER. PRESS. DIFF. | GAS CAPACITY BTU/Hr | CV FACTOR | PIPE SIZE | VALVE NUMBER | IECEx/ATEX VALVE NUMBER | |
|---|---|---|---|---|---|---|---|
| AC | DC | ||||||
| 60 | 60 | 0 | 2,751,000 | 3.0 | 1/2 NPT | E829B11DCCP-SC | EA829B11DCCP-SC |
Ordering Information:
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (829B11DGM 120/60) repair pack (K829BD AC)
No operator available
Operating Conditions
- Media
- Fuel gas.
- Valve Temperature Range
- – 40°F (-40°C) to 150°F (65°C) ambient and media.
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 1000 PSI
- Leakage
- Bubble tight.
Electrical Characteristics
- Coil Voltage
- 120/60 and 12, 24/DC
- Nominal Power
- 9.5 watts DC, 7.3 watts AC
- Coil Construction
- Potted Class F
- Operating Speed
- Up to 100 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Body
- Aluminum
- Internal Components
- Stainless Steel. Copper – AC Only.
- Elastomers
- Nitrile (Buna) (Std.).
- Housing
- 1/2" NPT conduit
- Listings
- North American Valves are UL listed and CSA certified for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G
- Certification
- IECEx/ATEX – In compliance with IEC 60079-0 & IEC 60079-1, IECEx : Ex db IIB+H2 T4 Gb, ATEX: II 2 G Ex db IIB+H2 T4 Gb
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Repair Packs
- See table above.

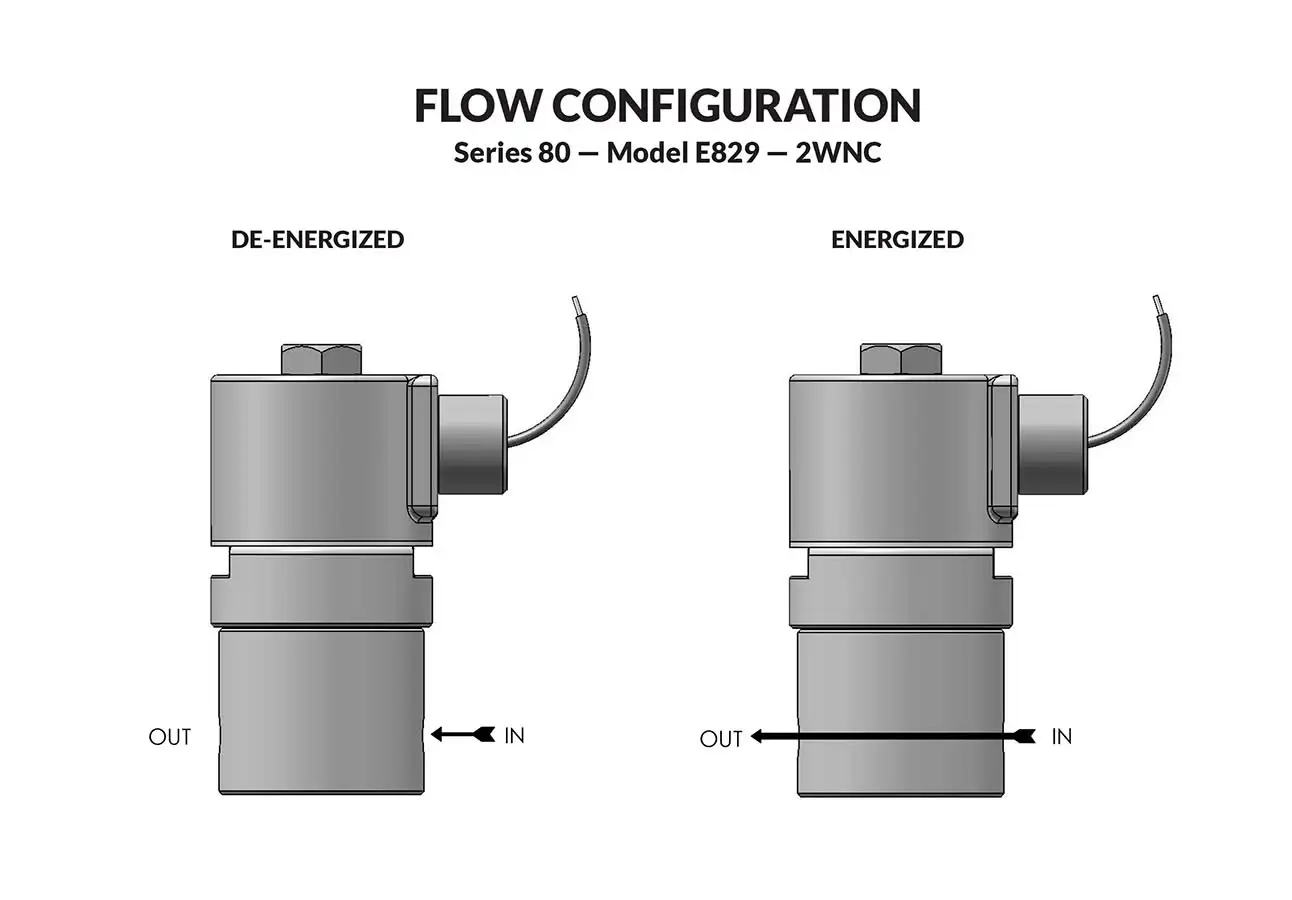

Series 80 Internal Pilot Valve - Explosion Proof Housing
Cv Flow Formulae
PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.
The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.
Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.
Liquid Flow
Gas Flow P2 > 53% of P1 (subsonic)
Gas Flow P2 < 53% of P1 (sonic)
DISCLAIMER: Gas flow is only an approximation using Cv.
Coming soon.
