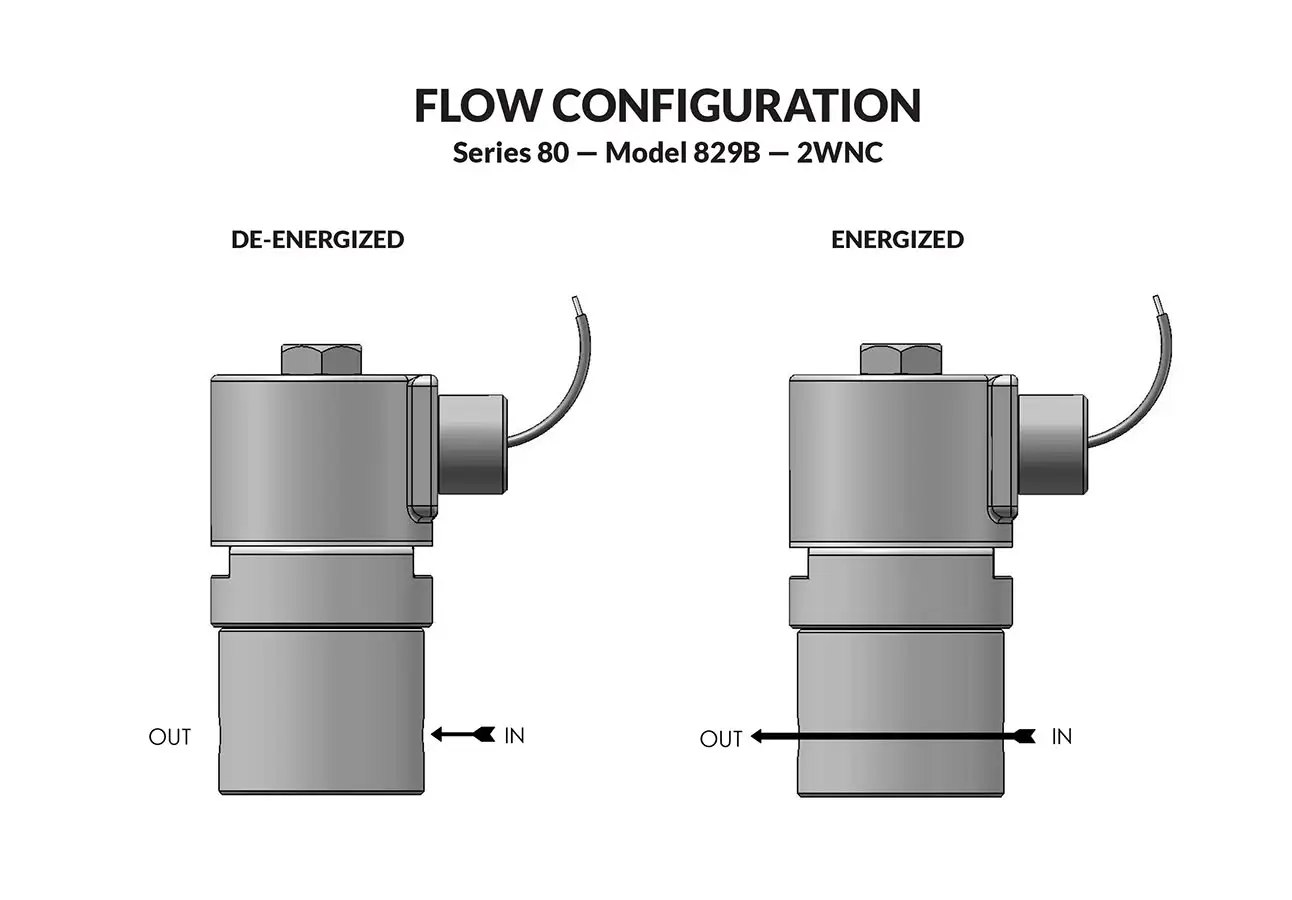

2-Way Normally Closed Valve
Super valves that have ratings that formerly required valves of much greater size. They are higher flow at low pressures and have quick media fill or dump for air, inert gases, water and light oils for 10CST or less.
- Large orifice.
- Direct
- Operates from 0 to 200psi.
- NPT threaded connections.
- Same coils and housings as our popular 70 Series.
| MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | VALVE NUMBER | ||
|---|---|---|---|---|---|
| AC | DC | GROMMET HOUSING | CONDUIT HOUSING | ||
| 200 | 200 | 1/2 | 3.50 | 829B11DGM | 829B11DCM |
Ordering Information:
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (829B11DGM 120/60) repair pack (K829BD AC)
No operator available
Operating Conditions
- Media
- Air, inert gases and liquids compatible with materials of construction.
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 1000 PSI
- Leakage
- Bubble tight for standard valves.
Electrical Characteristics
- Coil Voltage
- 12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
- Nominal Power
- AC — 18.0 Watts DC — 16.0 Watts
- Coil Construction
- Molded and Potted Class F or Class H (Opt.)
- Operating Speed
- Up to 100 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Body
- Anodized Aluminum
- Internal Components
- Stainless Steel Anodized Aluminum.
- Elastomers
- Buna (Std.). Many other elastomers available.*
- Orifice Diameter
- See table above.
- Porting
- 1/2″ NPT
- Housing
- Grommet and 1/2" NPT conduit — many options available.*
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- 2.20 lbs.
- Repair Packs
- See table above.
- Options
- Alternate Elastomers, valves for oil and water available.*
Series 80 Valves Conduit
Series 80 Valves Grommet
Cv Flow Formulae
PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.
The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.
Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.
Liquid Flow
Gas Flow P2 > 53% of P1 (subsonic)
Gas Flow P2 < 53% of P1 (sonic)
DISCLAIMER: Gas flow is only an approximation using Cv.
