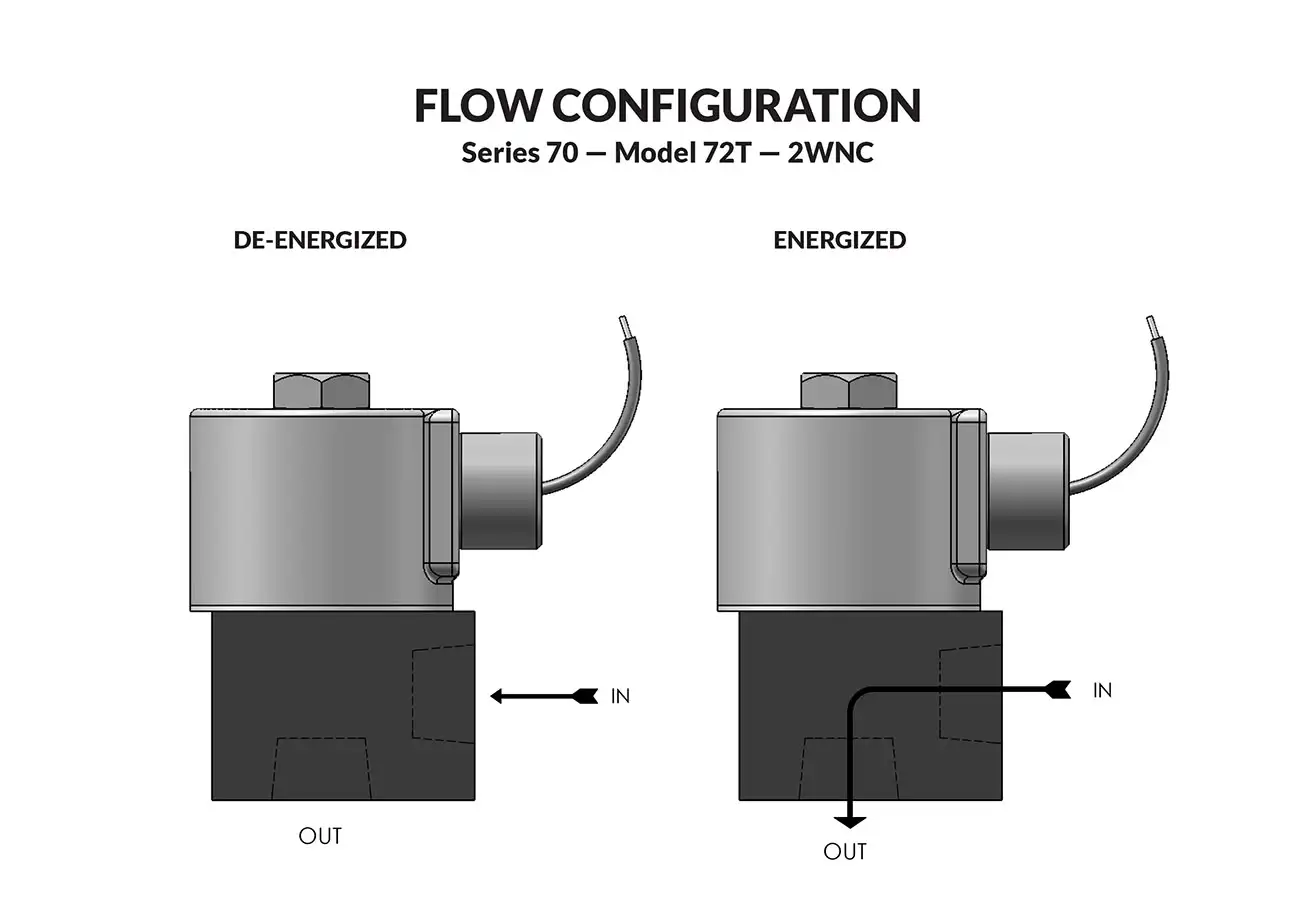

2-Way Normally Closed Valve
Super valves that have ratings that formerly required valves of much greater size. They have higher flow at low pressures and have quick media fill or dump for air, inert gases, and oil.
- Largest direct acting (non-piloted) valve we manufacture.
- Large orifice.
- High flow at low pressures.
- Gravity feed lubrication with quick media fill or dump.
| MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | VALVE NUMBER | ||
|---|---|---|---|---|---|
| AC | DC | GROMMET HOUSING | CONDUIT HOUSING | ||
| 25 | 25 | 3/8 | 1.92 | 72T10DGM | 72T10DCM |
Ordering Information:
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (72T10DGM 120/60) repair pack (K72TD AC)
When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O72T10DGM 120/60)
Operating Conditions
- Media
- Air, inert gases, and oil. (Series 70 pressure ratings may change due to the viscosity of the liquid.)*
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 500 PSI
- Leakage
- Bubble tight for standard valves.
- Vacuum
- To 5 Microns*
Electrical Characteristics
- Coil Voltage
- 12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
- Nominal Power
- AC — 18.0 Watts DC — 16.0 Watts
- Coil Construction
- Molded Class F (Std.), Potted and Class H Option
- Typical Response Time on Air
- 6-12 Milliseconds to open and 12-28 Milliseconds to close
- Operating Speed
- Up to 350 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Body
- Aluminum anodized, corrosion resistant
- Internal Components
- Stainless Steel. Copper – AC Only.
- Elastomers
- FKM (Std.). Many other elastomers available.*
- Orifice Diameter
- See table above.
- Porting
- 3/8" NPT
- Housing
- Grommet and 1/2" NPT conduit — many options available.*
- Listings
- Most valves are UL and CSA listed.*
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- 1.88 lbs
- Repair Packs
- See table above.
- Options
- Alternate Elastomers and Stainless Steel Body*
Series 70 General Purpose Valves DIN Style Coil
Series 70 General Purpose Valves Conduit
Series 70 General Purpose Valves Grommet
Series 70 General Purpose Valves Conduit/Bracket Connection
sales@peterpaul.com
Series 70 General Purpose Valves Grommet/Bracket Connection
sales@peterpaul.com
Cv Flow Formulae
PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.
The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.
Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.
Liquid Flow
Gas Flow P2 > 53% of P1 (subsonic)
Gas Flow P2 < 53% of P1 (sonic)
DISCLAIMER: Gas flow is only an approximation using Cv.
