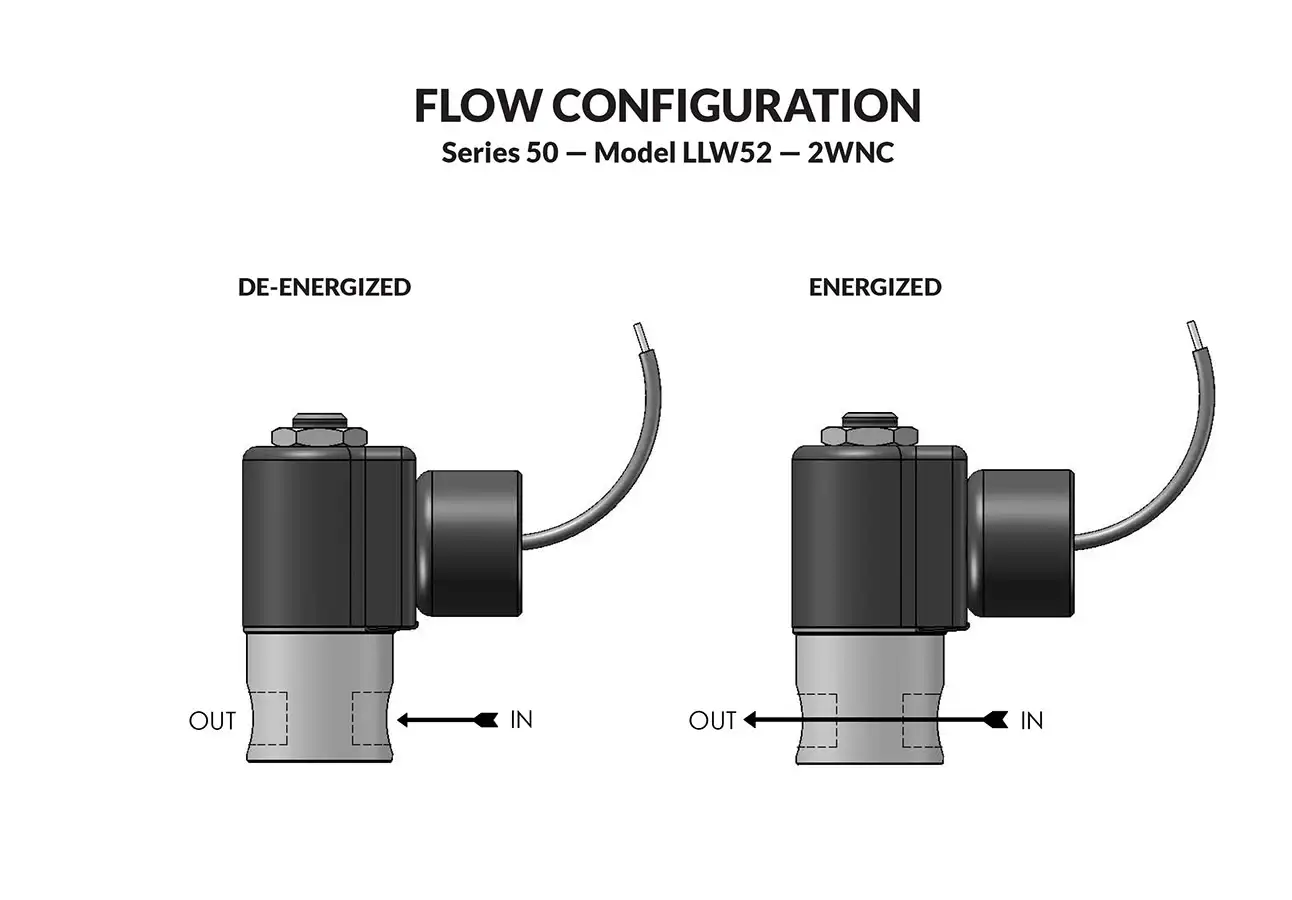

Series 50 LLW Model LLW52


2-Way Normally Closed Valve


General purpose or safety valves for pneumatic applications. The versatility of these valves is increased to include the handling of hot air, refrigerants, and many other media by the use of different seals. Air and other gases are compatible with standard Buna seals.

  • General purpose valve with reduced power consumption.
  • Increased versatility.
  • For pneumatic applications.
  • Increased capability to handle hot air and other gases.
  • High quality engineering.
Valve specifications — Series 50 LLW Model LLW52
MAX. OPER. PRESS. DIFF.ORIFICE SIZECV FACTORVALVE NUMBER
GAS
DCN.C.N.C.GROMMET 1/8" NPTCONDUIT 1/8" NPT
1201/32.022LLW52G8DGMLLW52G8DCM

Operating Conditions

Media
Air and other gases only compatible with standard Buna seals.*
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Burst Pressure
5000 PSI
Leakage
Bubble tight for standard valves.
Vacuum
To 5 Microns*

Electrical Characteristics

Coil Voltage
12, 24/DC
Nominal Power
DC — 0.65 Watts
Coil Construction
Non-molded Class A, Molded and potted Class F. (Class H option)
Typical Response Time on Air
4 - 16 Milliseconds
Operating Speed
Up to 600 CPM
Duty Cycle
Continuous

Mechanical Characteristics

Body
Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.)
Internal Components
Stainless Steel
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter
See table above.
Porting
1/8" NPT (Std.)
Housing
Grommet and 1/2" NPT conduit - many options available.*
Listings
Most Valvesare U.L. and CSA listed - consult factory.
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Valve Weight
Grommet Valve: 0.38 lbs, Conduit Valve: 0.44 lbs
Repair Packs
See table above.
Options
Alternate Port Locations, Metering and Alternate Elastomers*

Series 50LLW Low Watt Valves Conduit Connection

Technical drawing — 2WNC CONDUIT CONNECTION
2WNC CONDUIT CONNECTION
Technical drawing — 10-32 PORTS 2WNC CONDUIT CONNECTION
10-32 PORTS 2WNC CONDUIT CONNECTION
Technical drawing — BODY OPTION "E" 2WNC CONDUIT CONNECTION
BODY OPTION "E" 2WNC CONDUIT CONNECTION
Technical drawing — BODY OPTION "O" 2WNC CONDUIT CONNECTION
BODY OPTION "O" 2WNC CONDUIT CONNECTION
Technical drawing — BODY OPTION "R" 2WNC CONDUIT CONNECTION
BODY OPTION "R" 2WNC CONDUIT CONNECTION
Technical drawing — METERED BODY 2WNC CONDUIT CONNECTION
METERED BODY 2WNC CONDUIT CONNECTION


Series 50LLW Low Watt Valves Conduit/Bracket Connection

Technical drawing — 2WNC CONDUIT/BRACKET CONNECTION
2WNC CONDUIT/BRACKET CONNECTION
Technical drawing — 10-32 PORTS 2WNC CONDUIT/BRACKET CONNECTION
10-32 PORTS 2WNC CONDUIT/BRACKET CONNECTION
Technical drawing — BODY OPTION "E" 2WNC CONDUIT/BRACKET CONNECTION
BODY OPTION "E" 2WNC CONDUIT/BRACKET CONNECTION
Technical drawing — BODY OPTION "O" 2WNC CONDUIT/BRACKET CONNECTION
BODY OPTION "O" 2WNC CONDUIT/BRACKET CONNECTION
Technical drawing — BODY OPTION "R" 2WNC CONDUIT/BRACKET CONNECTION
BODY OPTION "R" 2WNC CONDUIT/BRACKET CONNECTION
Technical drawing — METERED BODY 2WNC CONDUIT/BRACKET CONNECTION
METERED BODY 2WNC CONDUIT/BRACKET CONNECTION


Series 50LLW Low Watt Valves Grommet Connection

Technical drawing — 2WNC GROMMET WITH LEADS
2WNC GROMMET WITH LEADS
Technical drawing — 10-32 PORTS GROMMET WITH LEADS
10-32 PORTS GROMMET WITH LEADS
Technical drawing — 2WNC BODY OPTION "E" GROMMET WITH LEADS
2WNC BODY OPTION "E" GROMMET WITH LEADS
Technical drawing — 2WNC BODY OPTION "O" GROMMET WITH LEADS
2WNC BODY OPTION "O" GROMMET WITH LEADS
Technical drawing — 2WNC BODY OPTION "R" GROMMET WITH LEADS
2WNC BODY OPTION "R" GROMMET WITH LEADS
Technical drawing — METERED BODY 2WNC GROMMET WITH LEADS
METERED BODY 2WNC GROMMET WITH LEADS


Series 50LLW Low Watt Valves Grommet/Bracket Connection

Technical drawing — 2WNC GROMMET/BRACKET WITH LEADS
2WNC GROMMET/BRACKET WITH LEADS
Technical drawing — 10-32 PORTS 2WNC GROMMET/BRACKET WITH LEADS
10-32 PORTS 2WNC GROMMET/BRACKET WITH LEADS
Technical drawing — BODY OPTION "E" 2WNC GROMMET/BRACKET WITH LEADS
BODY OPTION "E" 2WNC GROMMET/BRACKET WITH LEADS
Technical drawing — BODY OPTION "O" 2WNC GROMMET/BRACKET WITH LEADS
BODY OPTION "O" 2WNC GROMMET/BRACKET WITH LEADS
Technical drawing — BODY OPTION "R" 2WNC GROMMET/BRACKET WITH LEADS
BODY OPTION "R" 2WNC GROMMET/BRACKET WITH LEADS
Technical drawing — METERED BODY 2WNC GROMMET/BRACKET WITH LEADS
METERED BODY 2WNC GROMMET/BRACKET WITH LEADS


Series 50LLW Low Watt Valves Yoke Leads

Technical drawing — 2WNC YOKE WITH LEADS
2WNC YOKE WITH LEADS
Technical drawing — 10-32 PORTS 2WNC YOKE WITH LEADS
10-32 PORTS 2WNC YOKE WITH LEADS
Technical drawing — BODY OPTION "E" 2WNC YOKE WITH LEADS
BODY OPTION "E" 2WNC YOKE WITH LEADS
Technical drawing — BODY OPTION "O" 2WNC YOKE WITH LEADS
BODY OPTION "O" 2WNC YOKE WITH LEADS
Technical drawing — BODY OPTION "R" 2WNC YOKE WITH LEADS
BODY OPTION "R" 2WNC YOKE WITH LEADS
Technical drawing — METERED BODY 2WNC YOKE WITH LEADS
METERED BODY 2WNC YOKE WITH LEADS


Series 50LLW Low Watt Valves Yoke Spade Terminals

Technical drawing — 2WNC YOKE WITH SPADE TERMINALS
2WNC YOKE WITH SPADE TERMINALS
Technical drawing — 10-32 PORTS 2WNC YOKE WITH SPADE TERMINALS
10-32 PORTS 2WNC YOKE WITH SPADE TERMINALS
Technical drawing — BODY OPTION "E" 2WNC YOKE WITH SPADE TERMINALS
BODY OPTION "E" 2WNC YOKE WITH SPADE TERMINALS
Technical drawing — BODY OPTION "O" 2WNC YOKE WITH SPADE TERMINALS
BODY OPTION "O" 2WNC YOKE WITH SPADE TERMINALS
Technical drawing — BODY OPTION "R" 2WNC YOKE WITH SPADE TERMINALS
BODY OPTION "R" 2WNC YOKE WITH SPADE TERMINALS
Technical drawing — METERED BODY 2WNC YOKE WITH SPADE TERMINALS
METERED BODY 2WNC YOKE WITH SPADE TERMINALS
Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
