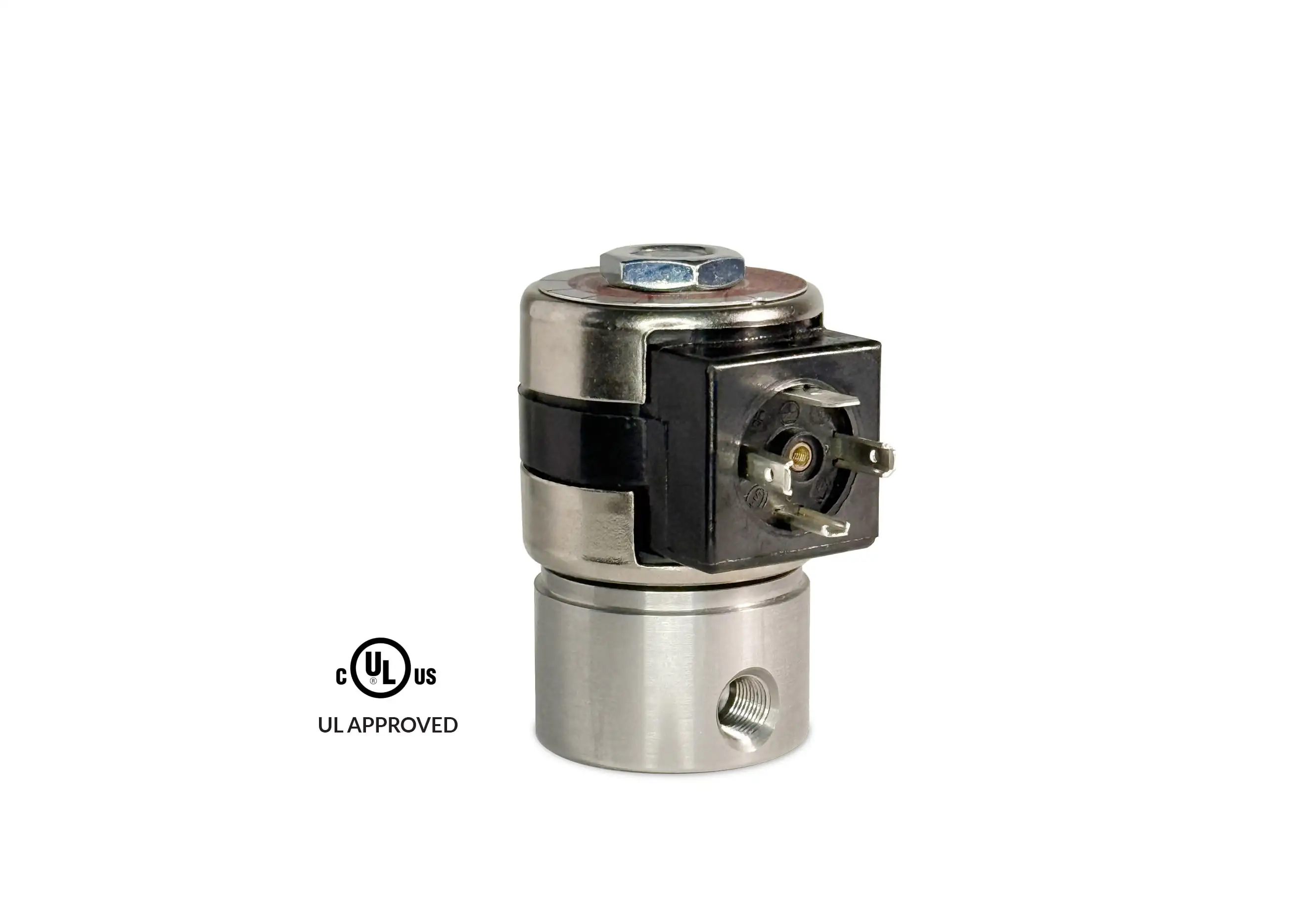

Series 20 Model MLVNH22 (FIXED POLARITY) CLASS I DIV II

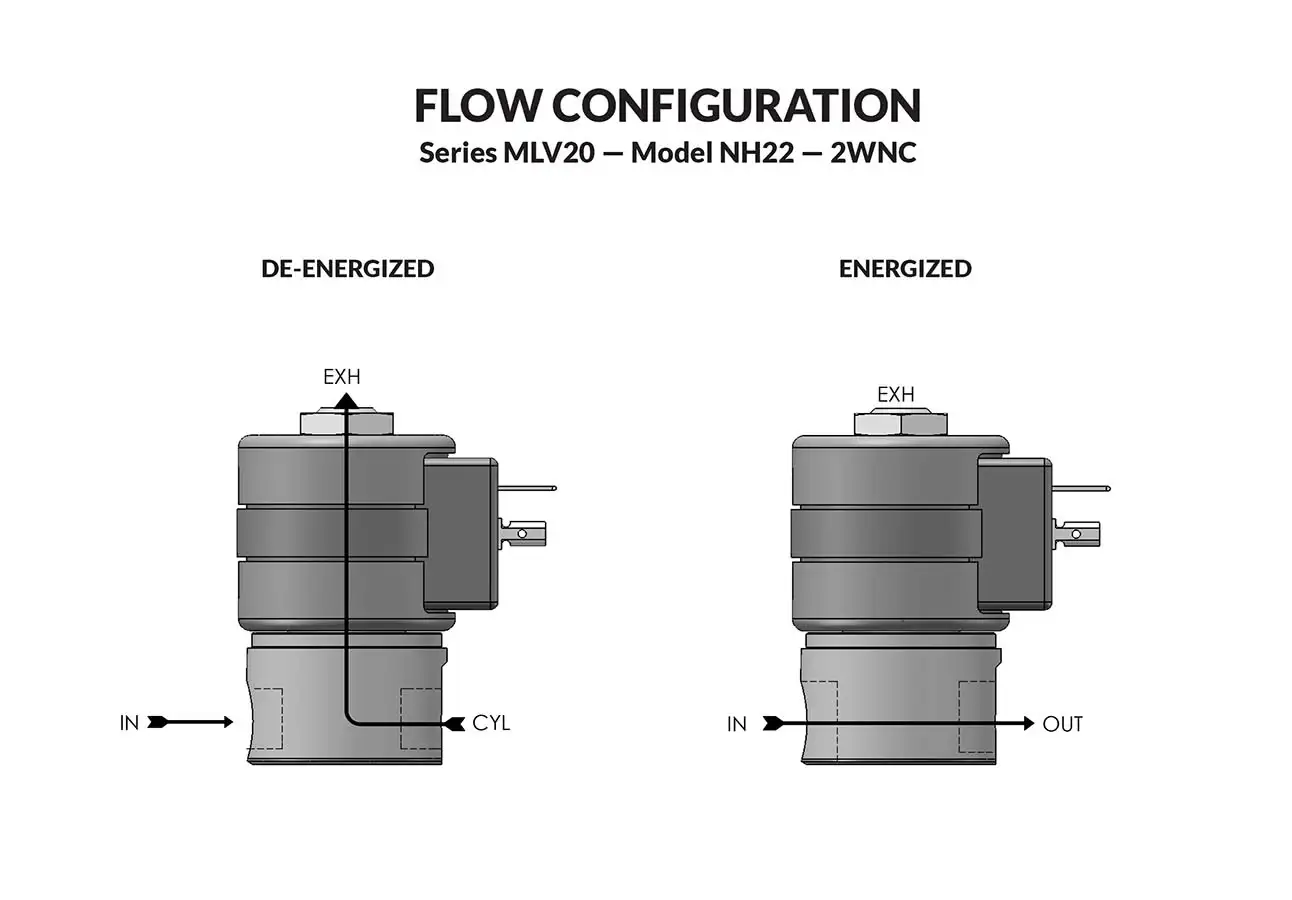

2-Way Normally Closed Valve


2-Way High Pressure Fixed Polarity Class I Div II Magnet Latching Valve - The N20 Latching Valves are CSA listed and certified for non-incendive Hazardous Location Class 1, Div 2, Groups A, B, C and D; T6 temperature rating. This type of valve is often used in remote areas where continuous power may not be available or with battery-powered portable equipment where power capacity is limited, as it only uses power during latching and un-latching. It is also valuable in equipment where coil heating, due to the continuous application of power, is undesirable. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require special seal materials.

Common Black wire set to Neutral (-) a. Pulse Yellow lead to Positive (+) to latch   b. Pulse Blue lead to Positive (+) to un-latch

Common Black wire set to Positive (+) a. Pulse Yellow lead to Neutral (-) to un-latch   b. Pulse Blue lead to Neutral (-) to latch

Valve specifications — Series 20 Model MLVNH22 (FIXED POLARITY) CLASS I DIV II
   VALVE NUMBER DIN COIL
(3 TERMINALS WITH GROUND)
Gas Pressure RatingsORIFICE SIZECV FACTOR1/8 NPT PORTS1/4 NPT PORTS
2500 PSI0.0250.010NH22M7D4LM-∆NH22M9D4LM-∆
1000 PSI1/320.022NH22G7D4LM-∆NH22G9D4LM-∆
750 PSI3/640.041NH22H7D4LM-∆NH22H9D4LM-∆
300 PSI1/160.065NH22J7D4LM-∆NH22J9D4LM-∆
125 PSI3/320.100NH22K7D4LM-∆NH22K9D4LM-∆

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (N26JJ7XELM 12/DC) repair pack (KN26JJ3L DC)

Seal Material: Replace ∆ with desired code -Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM

Operating Conditions

Media
Air and other non-corrosive gasses, water and oil.
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Burst Pressure
10,000 PSI
Leakage
Bubbletight (with polymer sealing pins)

Electrical Characteristics

Coil Voltage
6, 9, 12, 24/DC
Nominal Power
15 Watts
Coil Construction
Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)
Typical Response Time on Air
4 - 16 Milliseconds
Operating Speed
Up to 600 CPM with gas media
Duty Cycle
Continuous

Mechanical Characteristics

Body
Stainless Steel (Std.)
Internal Components
Stainless Steel
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Sealing Pin
Kel-F (Std.)
Orifice Diameter
See table above.
Porting
1/8" and 1/4" NPT (other ports avaialble).
Mounting
Any orientation
Housing
Grommet and 1/2" NPT conduit – many options available.*
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Valve Weight
1.13 lbs
Repair Packs
See table above.
Options
Alternate Port Locations, Metering and Alternate Elastomers, Female DIN Style Connector Part Numbers DIN COIL (2 TERMINALS W/GROUND) #20-198 & DIN COIL (3 TERMINALS W/GROUND) #20-19102. Consult representative or factory for more options & specifications.
Certification
North American
Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
