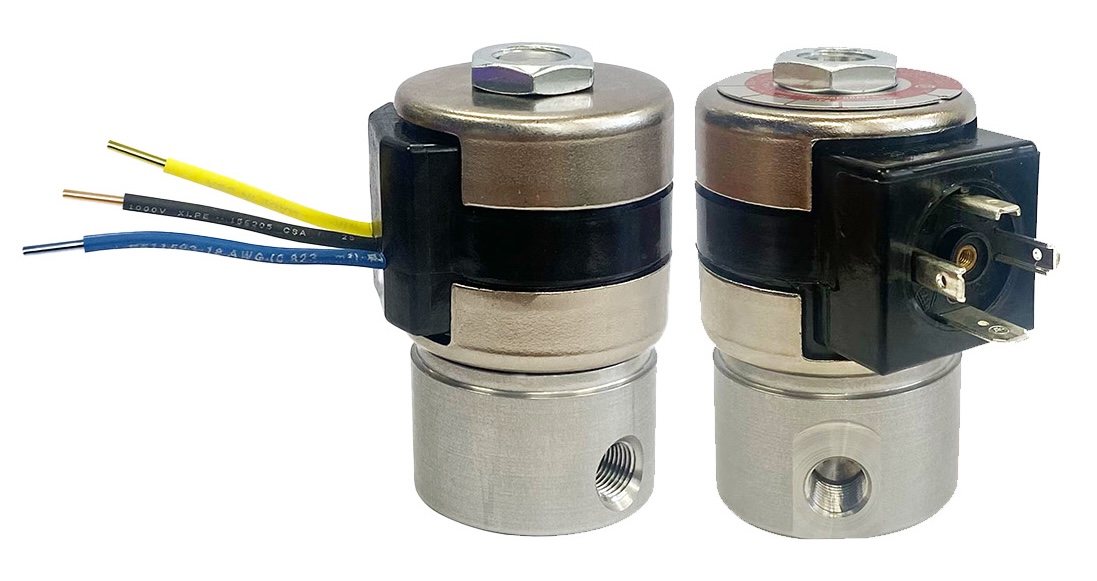

Series 20 Model MLVH22 (FIXED POLARITY)


2-Way Normally Closed Valve


When the valve coil is energized, the plunger is drawn towards the sleeve end stop. The plunger is allowed to accelerate freely for a short distance before it makes contact with the shoulder of the sealing pin. Upon contact it imparts considerable force on the pin causing it to lift the seat. A return spring provides the return force, directly on the pin, to seal the orifice when the coil is enlarged with reverse polarity. The valve is for use on air and other non-corrosive gases, water and oil.

Neutral (−) a. Pulse Yellow lead to Positive (+) to latch   b. Pulse Blue lead to Positive (+) to un-latch

Positive (+) a. Pulse Yellow lead to Neutral (−) to un-latch   b. Pulse Blue lead to Neutral (−) to latch

Valve specifications — Series 20 Model MLVH22 (FIXED POLARITY)
   VALVE NUMBER DIN COIL
(3 TERMINALS WITH GROUND)
VALVE NUMBER
3 WIRE COIL
Gas Pressure RatingsORIFICE SIZECV FACTOR1/8 NPT PORTS1/4 NPT PORTS1/8 NPT PORTS1/4 NPT PORTS
2500 PSI0.0250.010H22M7D4LM-∆H22M9D4LM-∆H22M7D3LM-∆H22M9D3LM-∆
1000 PSI1/320.022H22G7D4LM-∆H22G9D4LM-∆H22G7D3LM-∆H22G9D3LM-∆
750 PSI3/640.041H22H7D4LM-∆H22H9D4LM-∆H22H7D3LM-∆H22H9D3LM-∆
300 PSI1/160.065H22J7D4LM-∆H22J9D4LM-∆H22J7D3LM-∆H22J9D3LM-∆
125 PSI3/320.100H22K7D4LM-∆H22K9D4LM-∆H22K7D3LM-∆H22K9D3LM-∆



Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (26JJ7XELM 12/DC) repair pack (K26JJ3L DC)

Seal Material: Replace ∆ with desired code -Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM

Operating Conditions

Media
Air and other non-corrosive gasses, water and oil.
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Burst Pressure
10,000 PSI
Leakage
Bubbletight (with polymer sealing pins)
Vacuum
To 5 Microns*

Electrical Characteristics

Coil Voltage
6, 9, 12, 24/DC
Nominal Power
15 Watts
Coil Construction
Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)
Typical Response Time on Air
4 - 16 Milliseconds
Operating Speed
Up to 600 CPM with gas media
Duty Cycle
Continuous

Mechanical Characteristics

Body
Stainless Steel (Std.)
Internal Components
Stainless Steel.
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Sealing Pin
Kel-F (Std.)
Orifice Diameter
See table above.
Porting
1/8" and 1/4" NPT (other ports avaialble).
Mounting
Any orientation
Housing
Grommet and 1/2" NPT conduit – many options available.*
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Valve Weight
1.13 lbs
Repair Packs
See table above.
Options
Alternate Port Locations, Metering and Alternate Elastomers, Female DIN Style Connector Part Numbers DIN COIL (2 TERMINALS W/GROUND) #20-198 & DIN COIL (3 TERMINALS W/GROUND) #20-19102. Consult representative or factory for more options & specifications.
Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
