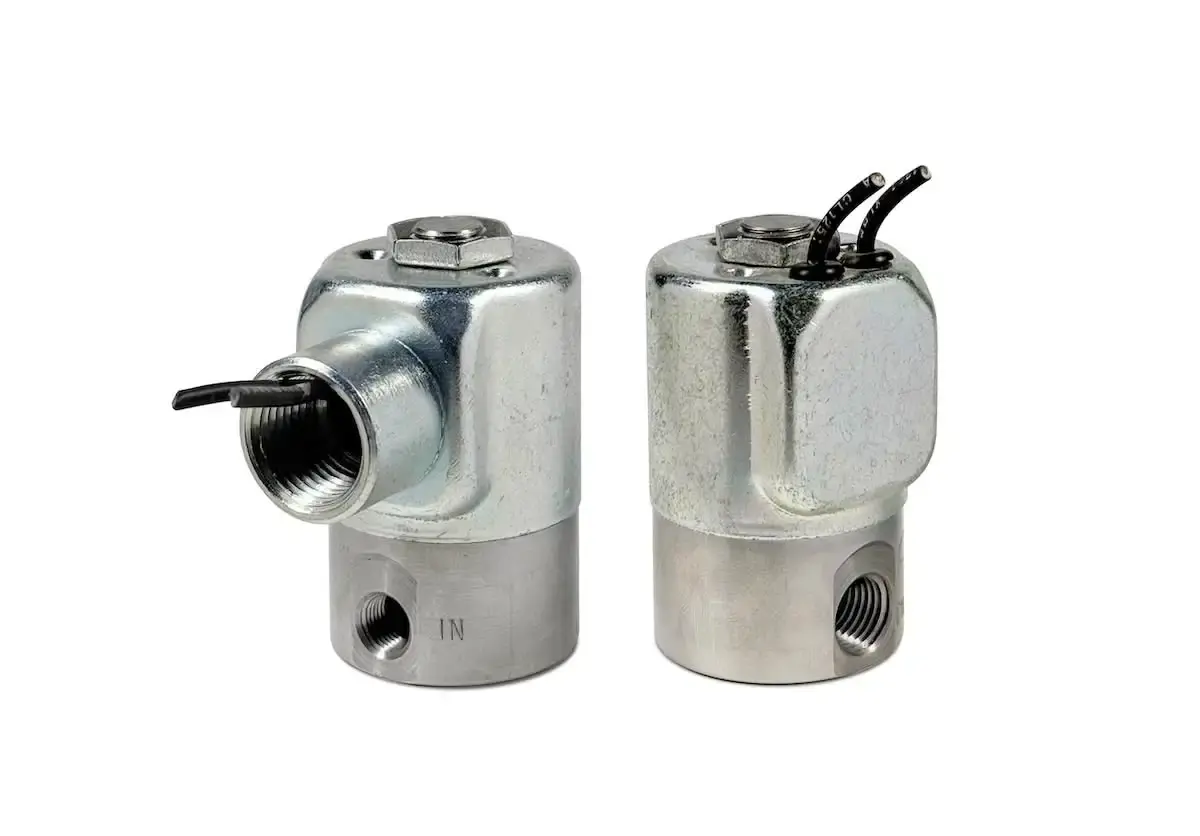

2-Way Normally Closed Valve

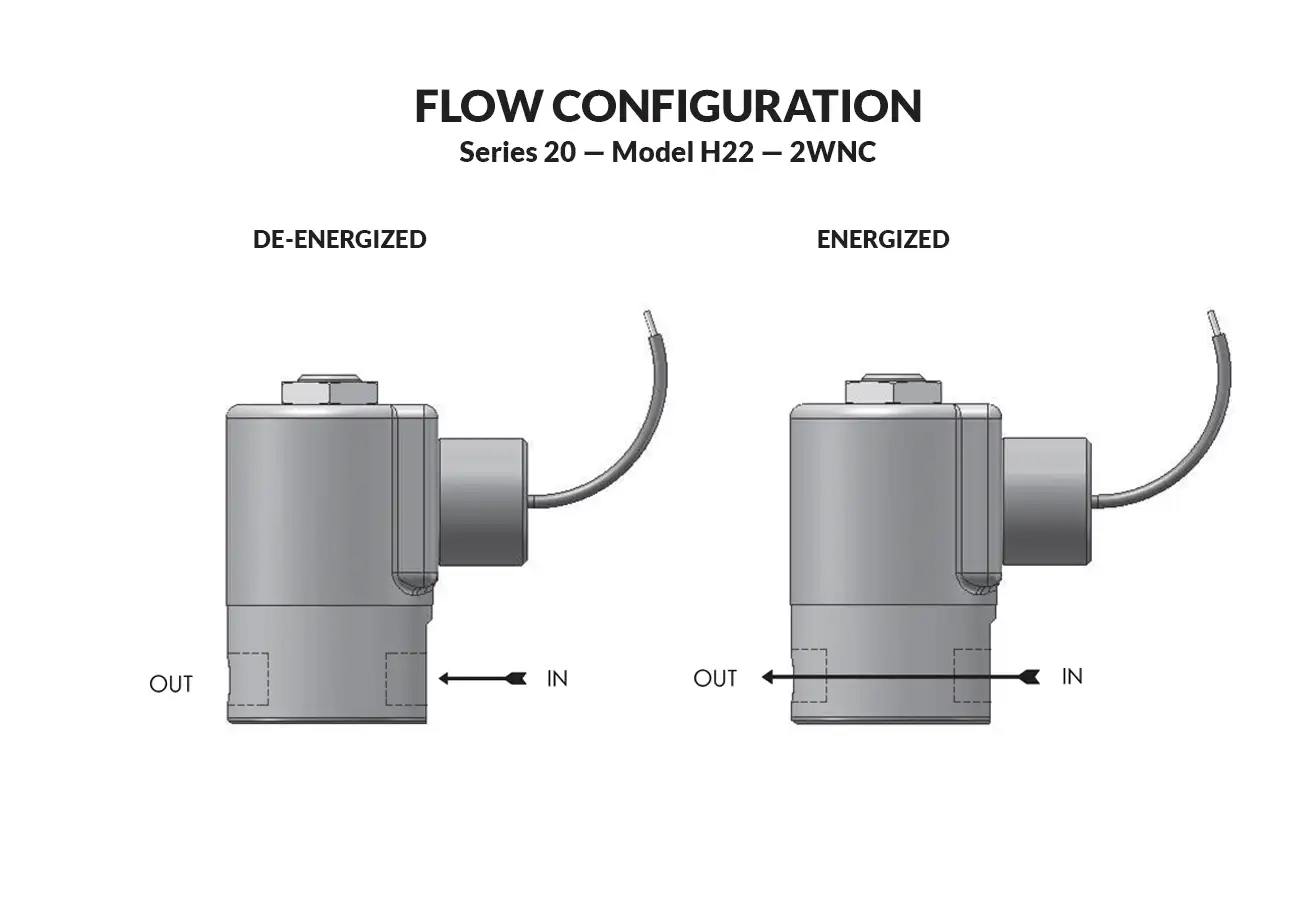

When the valve coil is energized, the plunger is drawn towards the sleeve end stop. The plunger is allowed to accelerate freely for a short distance before it makes contact with the shoulder of the sealing pin. Upon contact it imparts considerable force on the pin causing it to lift the seat. A return spring provides the return force, directly on the pin, to seal the orifice when the coil is de-energized. The valve must be mounted 30 degrees of vertical and is for use on air and other non-corrosive gases, water and oil.
- Kel-F pin sealing element.
- Orifice guides the sealing pin for perfect alignment.
- Simple construction...only two moving parts.
| GAS PRESSURE RATINGS | ORIFICE SIZE | CV FACTOR | VALVE NUMBER GROMMET HOUSING | CONDUIT HOUSING | |||
|---|---|---|---|---|---|---|---|
| AC | DC | 1/8 NPT PORTS | 1/4 NPT PORTS | 1/8 NPT PORTS | 1/4 NPT PORTS | ||
| 5000* | 5000* | .025 | .010 | H22M7DGM | H22M9DGM | H22M7DCM | H22M9DCM |
| 3000* | 3000* | 1/32 | .022 | H22G7DGM | H22G9DGM | H22G7DCM | H22G9DCM |
| 2500* | 1500* | 3/64 | .041 | H22H7DGMG | H22H9DGMG | H22H7DCMG | H22H9DCMG |
| 1750* | 500 | 1/16 | .065 | H22J7DGMG | H22J9DGMG | H22J7DCMG | H22J9DCMG |
| 650* | 100 | 3/32 | .100 | H22K7DGMG | H22K9DGMG | H22K7DCMG | H22K9DCMG |
| LIQUID PRESSURE RATINGS | ORIFICE SIZE | CV FACTOR | VALVE NUMBER GROMMET HOUSING | CONDUIT HOUSING | |||
| AC | DC | 1/8 NPT PORTS | 1/4 NPT PORTS | 1/8 NPT PORTS | 1/4 NPT PORTS | ||
| 5000* | 5000* | .025 | .010 | H22M7DGM | H22M9DGM | H22M7DCM | H22M9DCM |
| 3000* | 3000* | 1/32 | .022 | H22G7DGM | H22G9DGM | H22G7DCM | H22G9DCM |
| 1500* | 1500* | 3/64 | .041 | H22H7DGML | H22H9DGML | H22H7DCML | H22H9DCML |
| 1000* | 500 | 1/16 | .065 | H22J7DGML | H22J9DGML | H22J7DCML | H22J9DCML |
| 300 | 100 | 3/32 | .100 | H22K7DGML | H22K9DGML | H22K7DCML | H22K9DCML |
* FKM seals not recommended for pressure above 500 psi.
Ordering Information:
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (H22J7DGMG 120/60) repair pack (KH22JD AC)
When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (OH22JDDGMG 120/60)
Operating Conditions
- Media
- Air and other non-corrosive gasses, water and oil.
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 10,000 PSI
- Leakage
- Bubbletight (with polymer sealing pins)
Electrical Characteristics
- Coil Voltage
- 12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
- Nominal Power
- AC — 7.7 Watts DC — 9.5 Watts
- Coil Construction
- Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)
- Typical Response Time on Air
- 4 - 16 Milliseconds
- Operating Speed
- Up to 600 CPM with gas media
- Duty Cycle
- Continuous
Mechanical Characteristics
- Body
- Stainless Steel (Std.)
- Internal Components
- Stainless Steel. Copper – AC Only.
- Elastomers
- Nitrile (Buna) (Std.). Many other elastomers available.*
- Sealing Pin
- Kel-F (Std.), Delrin®, PEEK
- Orifice Diameter
- See table above.
- Porting
- 1/8" and 1/4" NPT (other ports avaialble).
- Mounting
- Must be mounted within 30° of vertical.
- Housing
- Grommet and 1/2" NPT conduit – many options available.*
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- Grommet Valve: 1.13 lbs, Conduit Valve: 1.19 lbs
- Repair Packs
- See table above.
- Options
- Alternate Port Locations, Alternate Elastomers, Alternate Sealing Pin Materials, Spade Terminal Coil, and European Style DIN Coil*
Series 20 High Pressure Valves Conduit
Series 20 High Pressure Valves DIN
Series 20 High Pressure Valves Grommet
Series 20 High Pressure Valves Yoke Leads
Series 20 High Pressure Valves Yoke Spades
Series 20 High Pressure Valves Conduit/Bracket Connection
sales@peterpaul.com
sales@peterpaul.com
sales@peterpaul.com
Series 20 High Pressure Valves Grommet/Bracket Connection
sales@peterpaul.com
sales@peterpaul.com
sales@peterpaul.com
Cv Flow Formulae
PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.
The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.
Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.
Liquid Flow
Gas Flow P2 > 53% of P1 (subsonic)
Gas Flow P2 < 53% of P1 (sonic)
DISCLAIMER: Gas flow is only an approximation using Cv.
