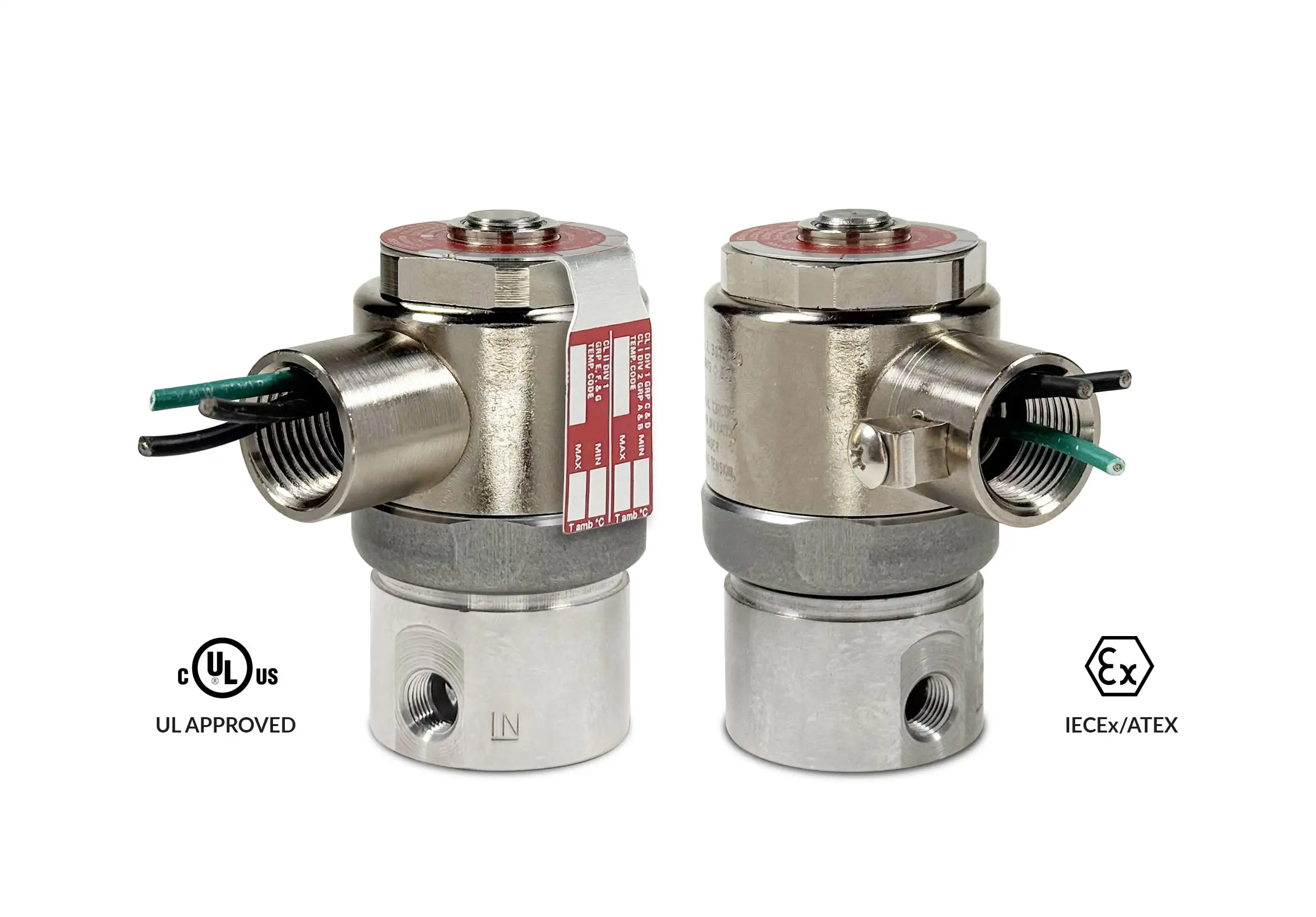

Series 20 Model EH22


2-Way Normally Closed Valve

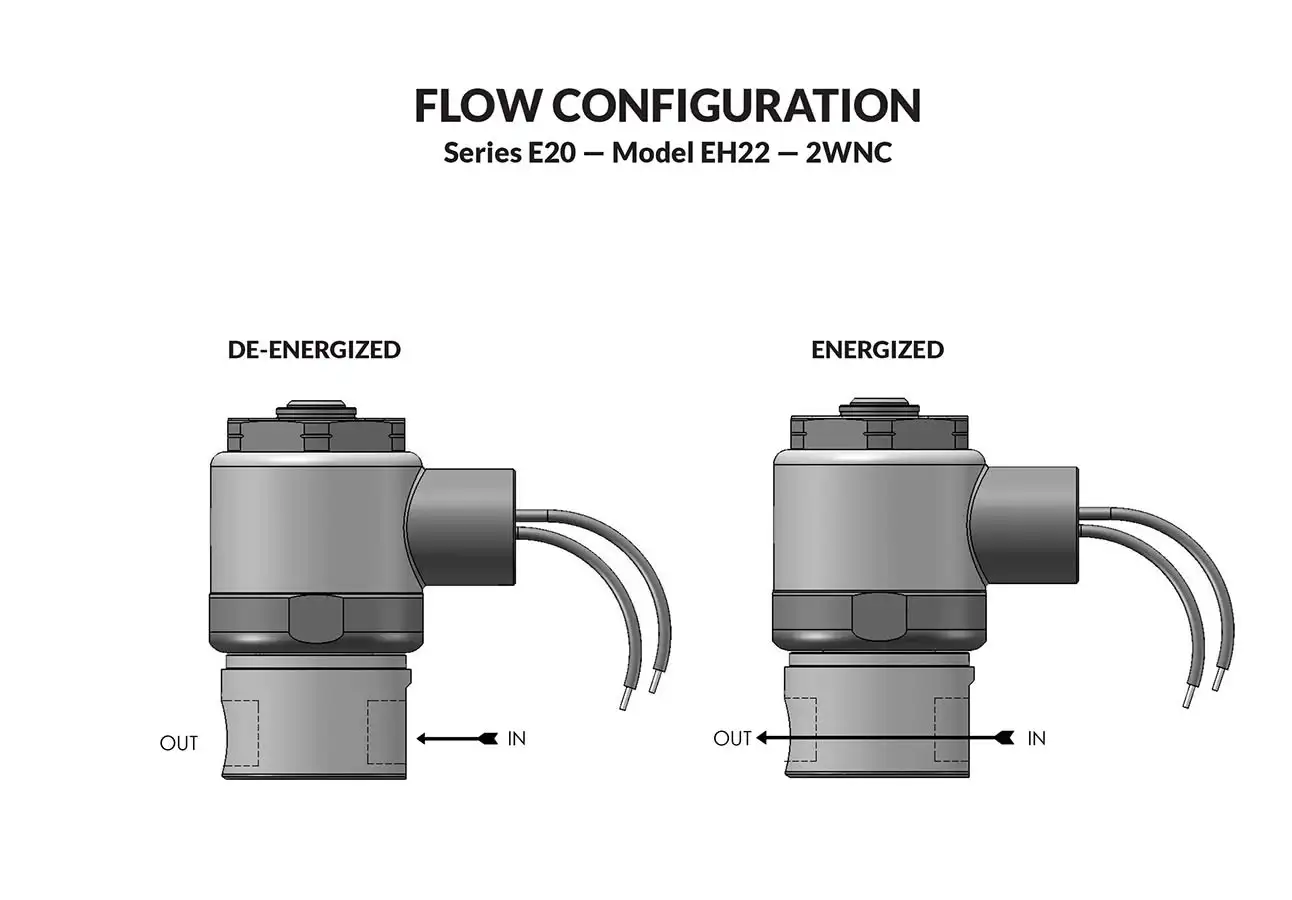

When the valve coil is de-energized, the plunger moves upward and disengages the shoulder of the sealing pin allowing the return spring to hold the pin tightly on the orifice seat. When the coil is energized, the plunger accelerates freely before it makes contact with the sealing pin shoulder. Upon contact, it imparts considerable kinetic energy to the pin causing it to lift off the orifice seat against the force of high pressure. For use on air and other non-corrosive gasses, water and oil.

  • Precision stainless steel, free floating plunger.
  • Kel-F pin sealing element.
  • Orifice guides the sealing pin for near perfect alignment.
  • Simple construction...only two moving parts.
  • Explosion proof construction.
Valve specifications — Series 20 Model EH22
GAS PRESSURE RATINGSORIFICE SIZECV FACTORVALVE NUMBERIECEx/ATEX VALVE NUMBER
ACDC  1/8 NPT PORTS1/4 NPT PORTS1/8 NPT PORTS1/4 NPT PORTS
5000*#5000*#.025.010OEH22M7DCCM-∆OEH22M9DCCM-∆OEHA22M7DCCM-∆OEHA22M9DCCM-∆
3000*3000*1/32.022EH22G7DCCM-∆EH22G9DCCM-∆EHA22G7DCCM-∆EHA22G9DCCM-∆
2500*1500*3/64.041EH22H7DCCMG-∆EH22H9DCCMG-∆EHA22H7DCCMG-∆EHA22H9DCCMG-∆
1750*5001/16.065EH22J7DCCMG-∆EH22J9DCCMG-∆EHA22J7DCCMG-∆EHA22J9DCCMG-∆
650*1003/32.100EH22K7DCCMG-∆EH22K9DCCMG-∆EHA22K7DCCMG-∆EHA22K9DCCMG-∆
LIQUID PRESSURE RATINGSORIFICE SIZECV FACTORVALVE NUMBERIECEx/ATEX VALVE NUMBER
ACDC  1/8 NPT PORTS1/4 NPT PORTS1/8 NPT PORTS1/4 NPT PORTS

5000*#5000*#.025.010OEH22M7DCCM-∆OEH22M9DCCM-∆OEHA22M7DCCM-∆OEHA22M9DCCM-∆
3000*3000*1/32.022EH22G7DCCM-∆EH22G9DCCM-∆EHA22G7DCCM-∆EHA22G9DCCM-∆
1500*1500*3/64.041EH22H7DCCML-∆EH22H9DCCML-∆EHA22H7DCCML-∆EHA22H9DCCML-∆
1000*5001/16.065EH22J7DCCML-∆EH22J9DCCML-∆EHA22J7DCCML-∆EHA22J9DCCML-∆
650*1003/32.100EH22K7DCCML-∆EH22K9DCCML-∆EHA22K7DCCML-∆EHA22K9DCCML-∆

* FKM seals not recommended for pressure above 500 psi.

# DELRIN PIN SEALING ELEMENT STANDARD THIS SIZE ORIFICE. (KEL-F OPTIONAL)

Ordering Information:

Seal Material: Replace ∆ with desired code - Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (EH22J7DCCM 120/60) repair pack (2KEH22J AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (OEH22JDDCCM 120/60)


Operating Conditions

Media
Air and other non-corrosive gasses, water and oil.
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Burst Pressure
10,000 PSI
Leakage
Bubbletight (with polymer sealing pins)
Filtration
Down to 60 microns or less is recommended.

Electrical Characteristics

Coil Voltage
12/DC, 24/DC, 48/DC, 125/DC, 120/60, 120/60-110/50, 240/60, and 24/60.
Nominal Power
AC — 7.3 Watts DC — 9.5 Watts
Coil Construction
Molded Class F with third wire ground (Std.), Class H or Potted (Opt.)
Typical Response Time on Air
4 - 16 Milliseconds
Operating Speed
Up to 600 CPM with gas media
Duty Cycle
Continuous

Mechanical Characteristics

Body
Stainless Steel
Internal Components
Stainless Steel. Copper – AC Only.
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Sealing Pin
Kel-F (Std.), Delrin®, PEEK
Orifice Diameter
See table above.
Porting
1/8" and 1/4" NPT (other ports available).
Mounting
Must be mounted within 30° of vertical.
Housing
Flame-Proof Construction with 1/2" NPT conduit
Listings
North American Valves are UL listed for use in the United States and Canada for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G; Div 2, Groups A, B, C, D, E, F, and G.
Certification
IECEx/ATEX – In compliance with IEC 60079-0 & IEC 60079-1, IECEx : Ex db IIB+H2 T4 Gb, ATEX: II 2 G Ex db IIB+H2 T4 Gb
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Valve Weight
1.50 lbs
Repair Packs
See table above.
Options
Alternate Sealing Pin Materials and Alternate Elastomers*

Series 20 High Pressure Valves

Technical drawing — MODEL EH22 1/4-18 NPT 2WNC HIGH PRESSURE / EXPLOSION PROOF
MODEL EH22 1/4-18 NPT 2WNC HIGH PRESSURE / EXPLOSION PROOF

Technical drawing — MODEL EH22 1/8-27 NPT 2WNC HIGH PRESSURE / EXPLOSION PROOF
MODEL EH22 1/8-27 NPT 2WNC HIGH PRESSURE / EXPLOSION PROOF


Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.

Coming soon.

GP-1119 ATEX IECEx UKEx Signed Declaration of Conformity page 1 GP-1119 ATEX IECEx UKEx Signed Declaration of Conformity page 2
