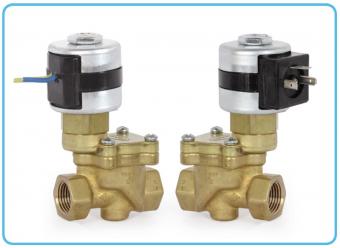

Series 80 Model MLV828 (REVERSE POLARITY)


2-Way Normally Closed Valve


2-Way Large Orifice, Internally Piloted, Reverse Polarity Magnet Latching Valve - PeterPaul offers a line of large orifice solenoid valves to address process industry requirements for high flow rate or quick dump and fill capacity. These DC powered valves are also suited for gas and liquid applications. Port sizes for pilot lift, two-way normally closed versions range from 1/2” to 3” NPT, with pressure ratings from 3 to 200 PSI.

  • Large orifice sizes for high flow applications.
  • Body is made of brass forgings or 316 stainless steel.
  • Operates on differential pressure — internal pilot.
  • NPT threaded connections.
  • Same coils and housings as our popular 20 Series.

Neutral (−) a. Pulse Yellow lead to Positive (+) to latch   b. Pulse Blue lead to Positive (+) to un-latch

Positive (+) a. Pulse Yellow lead to Neutral (−) to un-latch   b. Pulse Blue lead to Neutral (−) to latch

VALVE SPECIFICATIONS

Valve specifications — Series 80 Model MLV828 (REVERSE POLARITY)
MAX. OPER. PRESS. DIFF.MIN. OPER. PRESS. DIFF.ORIFICE SIZECV FACTORPIPE SIZEVALVE NUMBER
DC
2 WIRE COILDIN COIL

20031/24.01/2 NPT828B12DGLM-∆828B12DELM-∆
20033/45.83/4 NPT828Y19DGLM-∆828Y19DELM-∆
2003113.01 NPT828D13DGLM-∆828D13DELM-∆
20031 1/229.01 1/2 NPT828E14DGLM-∆828E14DELM-∆
2003246.02 NPT828F16DGLM-∆828F16DELM-∆
2003376.02 1/2 NPT828W17DGLM-∆828W17DELM-∆
2003398.03 NPT828W18DGLM-∆828W18DELM-∆



Operating Conditions

Media
Air, water, and other fluids compatible with Buna seals. Hot water, steam, gasoline and many oils require special seal materials. Consult representative or factory.(Series 80 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
See table above.
Leakage
Bubble tight

Electrical Characteristics

Coil Voltage
12, 24/DC
Nominal Power
DC — 10 Watts
Coil Construction
Molded
Typical Response Time on Air
Approximate 50 millisecond pulse to energize and de-energize.
Operating Speed
Up to 100 CPM

Mechanical Characteristics

Body
Brass (Std.) — Stainless Steel (Opt.)
Internal Components
Stainless Steel (Std.)
Elastomers
Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter
See table above.
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Repair Packs
See table above.
Options
Alternate Port Locations, Metering and Alternate Elastomers, Female DIN Style Connector Part Numbers DIN COIL (2 TERMINALS W/GROUND) #20-198 & DIN COIL (3 TERMINALS W/GROUND) #20-19102. Consult representative or factory for more options & specifications.


SERIES 80 MODEL MLV828 2WNC MAGNET LATCHING DIN COIL

Technical drawing — 2WNC MAGNET LATCHING DIN COIL 1-1/2" NPT PORTS
2WNC MAGNET LATCHING DIN COIL 1-1/2" NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING DIN COIL 1/2" NPT PORTS
2WNC MAGNET LATCHING DIN COIL 1/2" NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING DIN COIL 1" NPT PORTS
2WNC MAGNET LATCHING DIN COIL 1" NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING DIN COIL 2-1/2" NPT PORTS
2WNC MAGNET LATCHING DIN COIL 2-1/2" NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING DIN COIL 2"NPT PORTS
2WNC MAGNET LATCHING DIN COIL 2"NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING DIN COIL 3/4" NPT PORTS
2WNC MAGNET LATCHING DIN COIL 3/4" NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING DIN COIL 3" NPT PORTS
2WNC MAGNET LATCHING DIN COIL 3" NPT PORTS


SERIES 80 MODEL 828 2WNC MAGNET LATCHING COIL WITH LEADS

Technical drawing — 2WNC MAGNET LATCHING COIL WITH LEADS 1-1/2" NPT PORTS
2WNC MAGNET LATCHING COIL WITH LEADS 1-1/2" NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING COIL WITH LEADS 1/2" NPT PORTS
2WNC MAGNET LATCHING COIL WITH LEADS 1/2" NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING COIL WITH LEADS 1" NPT PORTS
2WNC MAGNET LATCHING COIL WITH LEADS 1" NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING COIL WITH LEADS 2-1/2" NPT PORTS
2WNC MAGNET LATCHING COIL WITH LEADS 2-1/2" NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING DIN COIL 2"NPT PORTS
2WNC MAGNET LATCHING DIN COIL 2"NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING COIL WITH LEADS 3/4" NPT PORTS
2WNC MAGNET LATCHING COIL WITH LEADS 3/4" NPT PORTS
Technical drawing — 2WNC MAGNET LATCHING COIL WITH LEADS 3" NPT PORTS
2WNC MAGNET LATCHING COIL WITH LEADS 3" NPT PORTS
Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
