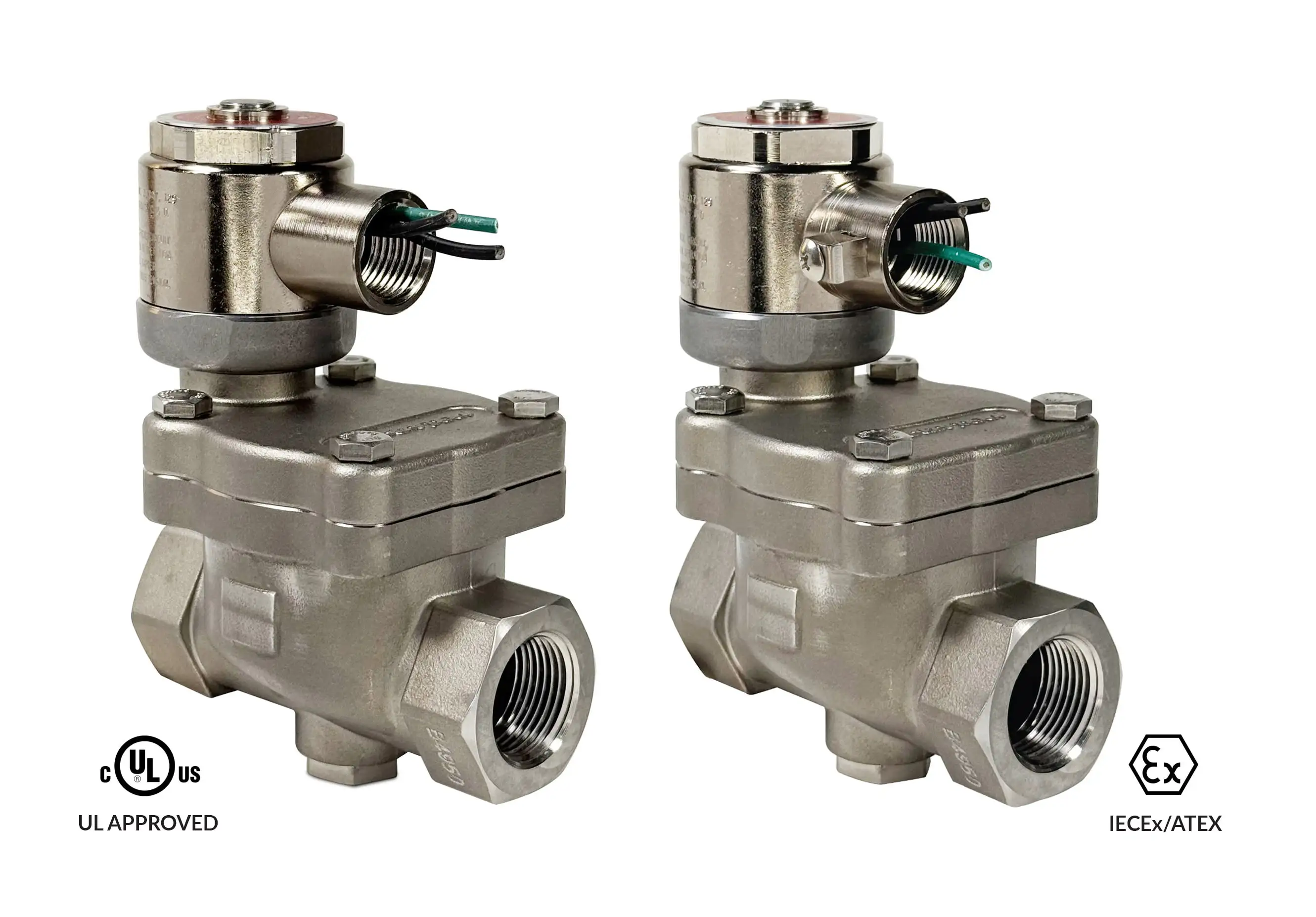

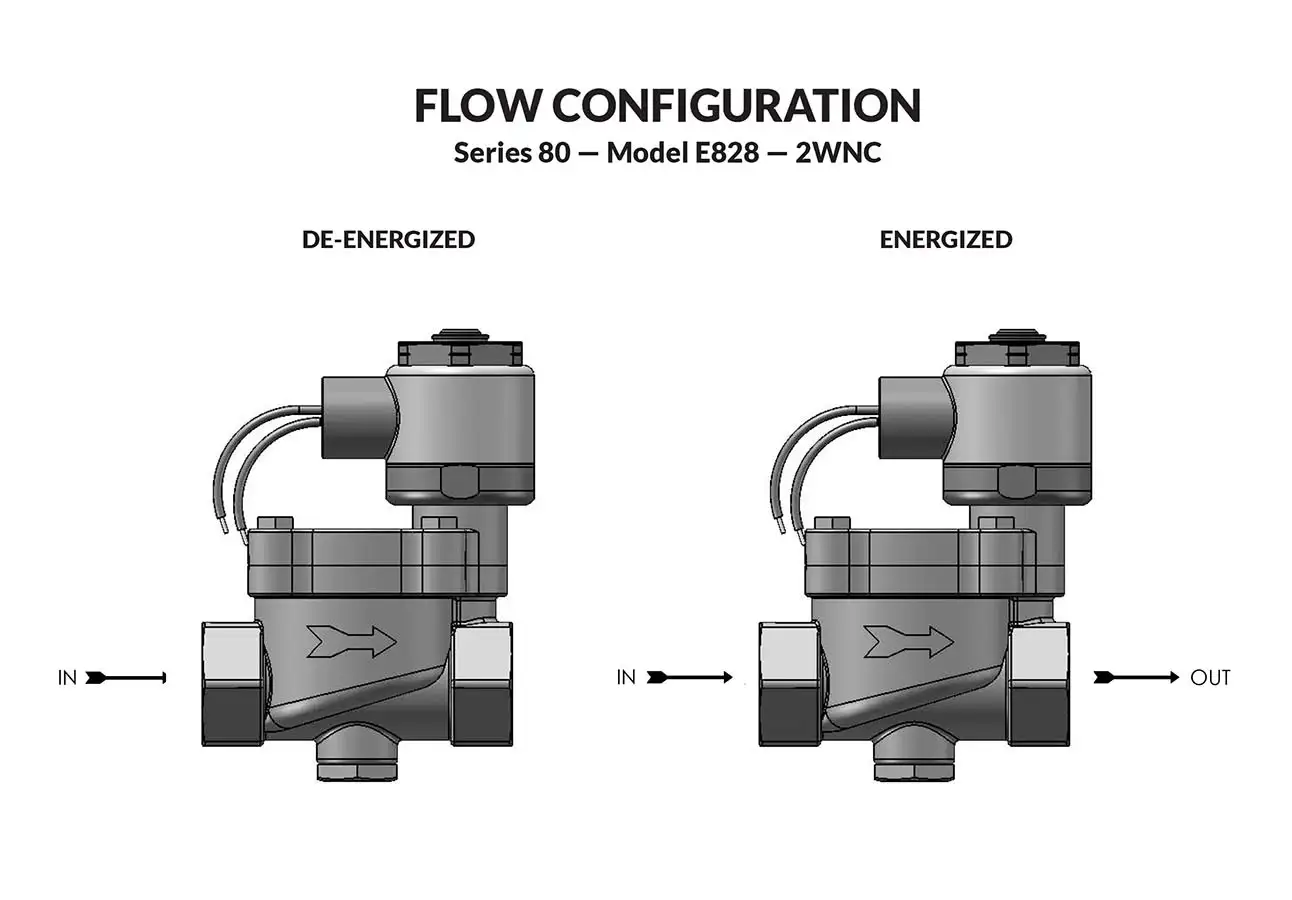

Series 80 Model E828/OE22Z


2-Way Normally Closed Valve


PeterPaul offers a line of large orifice solenoid valves to address process industry requirements for high flow rate or quick dump and fill capacity. These AC or DC powered valves are also suited for gas and liquid applications. Port sizes for pilot lift, two way normally closed versions range from 1/2” to 1” NPT, with pressure ratings from 3 to 200 PSI.

  • Large orifice sizes for high flow applications.
  • Body is made of brass or 316 stainless steel.
  • Operates on differential pressure — Internal Pilot.
  • NPT threaded connections.
  • Same coils and housings as our popular 20 Series.
Valve specifications — Series 80 Model E828
MAX. OPER.
PRESS. DIFF.
MIN. OPER.
PRESS. DIFF.
ORIFICE SIZECV FACTORPIPE SIZEMODELNORTH AMERICAN
PART NUMBER
IECEx/ATEX
PART NUMBER
BODY MATERIAL
ACDC
20020031/24.01/2 NPTE828B12DCCMOE22Z0026∆CCMEA828B12DCCMBRASS
2002003193/4 NPTE828D29DCCMOE22Z0091∆CCMEA828D29DCCMSTAINLESS STEEL
2002003113.01 NPTE828D23DCCMOE22Z0018∆CCMEA828D23DCCMSTAINLESS STEEL

Ordering Information:

Seal Material: Replace ∆ with desired code - L = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (E828B12DCCM 120/60) repair pack (2KE828B12DD AC)

No operator available


Operating Conditions

Media
Air, water, and other fluids compatible with Buna seals. (Series 80 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range
Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials
200 PSI
Burst Pressure
3000 PSI
Leakage
Bubble tight.

Electrical Characteristics

Coil Voltage
12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
Nominal Power
AC — 7.7 Watts DC — 9.5 Watts
Coil Construction
Molded Class F(Std.); Molded Class H and Potted Class F or Class H (Opt.)
Operating Speed
Up to 100 CPM
Duty Cycle
Continuous

Mechanical Characteristics

Body
Brass — Stainless Steel. See Chart
Internal Components
Stainless Steel. Copper – AC Only.
Elastomers
Nitrile (Buna)
Orifice Diameter
See table above.
Porting
1/2", 3/4", 1" NPT conduit
Housing
1/2" NPT conduit
Listings
North American Valves are UL listed for use in the United States and Canada for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G; Div 2, Groups A, B, C, D, E, F, and G.
Certification
IECEx/ATEX – In compliance with IEC 60079-0 & IEC 60079-1, IECEx : Ex db IIB+H2 T4 Gb, ATEX: II 2 G Ex db IIB+H2 T4 Gb
Life Expectancy
Millions of cycles, depending on application, lubrication, etc.
Repair Packs
See table above.

Series 80 Internal Pilot Valves

Technical drawing — 1-1/2" NPT PORTS 2WNC EXPLOSION PROOF
1-1/2" NPT PORTS 2WNC EXPLOSION PROOF

Technical drawing — 1/2" NPT PORTS 2WNC EXPLOSION PROOF
1/2" NPT PORTS 2WNC EXPLOSION PROOF

Technical drawing — 1" NPT PORTS 2WNC EXPLOSION PROOF
1" NPT PORTS 2WNC EXPLOSION PROOF

Technical drawing — 2 1/2" NPT PORTS 2WNC EXPLOSION PROOF
2 1/2" NPT PORTS 2WNC EXPLOSION PROOF

Technical drawing — 2" NPT PORTS 2WNC EXPLOSION PROOF
2" NPT PORTS 2WNC EXPLOSION PROOF

Technical drawing — 3/4" NPT PORTS 2WNC EXPLOSION PROOF
3/4" NPT PORTS 2WNC EXPLOSION PROOF

Technical drawing — 3" NPT PORTS 2WNC EXPLOSION PROOF
3" NPT PORTS 2WNC EXPLOSION PROOF


Nomenclature, all valve series except 58

Cv Flow Formulae

PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.

The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.

Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.

Liquid Flow

Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI

Gas Flow P2 > 53% of P1 (subsonic)

Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA

Gas Flow P2 < 53% of P1 (sonic)

Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA

DISCLAIMER: Gas flow is only an approximation using Cv.
